SECOND WORLD WAR RAILWAYS AT KIRKBY

[Source: Tony Graham]


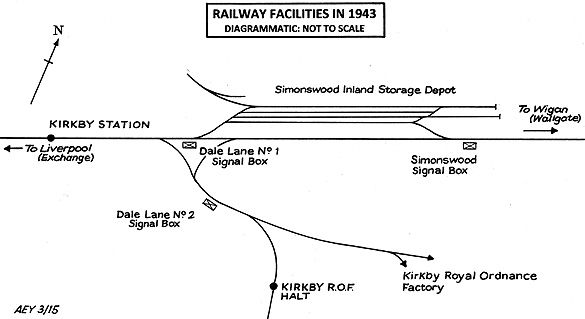

Kirkby is located seven miles north-west of Liverpool and until the Second World War it was a predominantly rural area. On 20 November 1848 the Lancashire & Yorkshire Railway (LYR) opened a railway between Bury and Liverpool which passed through Kirkby where a station was provided. The line went on to become a key part of the LYR network linking Liverpool to Manchester, the east Lancashire industrial towns and to Yorkshire. It became part of the London Midland & Scottish Railway (LMS) on 1 January 1923.

Even before Britain entered the Second World War on 3 September 1939 plans had been drawn up for a munitions factory to be sited on agricultural land to the east of Kirkby. Key factors in the choice of the location were its rural location and its proximity both to the railway and to an area with a large population from which workers could be recruited.

In 1940 a new triangle, leading off the main Liverpool Exchange to Manchester Victoria line, was opened at Dale Lane to serve the new Kirkby Royal Ordnance Factory, and a new passenger station for the factory workers was provided on the branch. All signalling was contracted out to the Railway Signal Company, Fazakerley. Dale Lane No.1 signal box opened on 8 May 1940 to control the junctions at the east and west ends of the triangle. The box was built to the LMS Air Raid Precaution (ARP) design , initially with a 30-lever, LMS REC pattern lever frame, manufactured by the Railway Signal Co, Fazakerley.

Dale Lane No.2 signal box opened about the same time to control the south junction of the triangle and the connections to the munitions sidings. It, too, was built to the LMS ARP design, but with a 15-lever, LMSR REC pattern lever frame, manufactured by the Railway Signal Co, Fazakerley. Kirkby Factory ground frame was an open, 5-lever, LNWR Sketch 446 pattern lever frame.

Signalling on the triangle was by Absolute Block, but between Kirkby Factory ground frame and Dale Lane No.2 signal box, only stroke bell signalling, without block instruments, was used.

On 9 December 1940, a new passenger station opened adjacent to the munitions factory. This was exclusively for the factory workers and was controlled from a 5-lever ground frame at the east end of the station.

In connection with the munitions factory, a new down siding was installed at Rainford Colliery signal box; it led to a goods station at Dairy Farm Road. Loaded munitions trains were worked from the Kirkby Royal Ordnance Factory via the east curve of the triangle to the Rainford goods station, and the explosives were unloaded and taken by tractor and trailer across Dairy Farm Road to the nearby storage buildings. Here, explosives could safely be stored, remote from areas of population and away from likely enemy bombing targets in Liverpool.

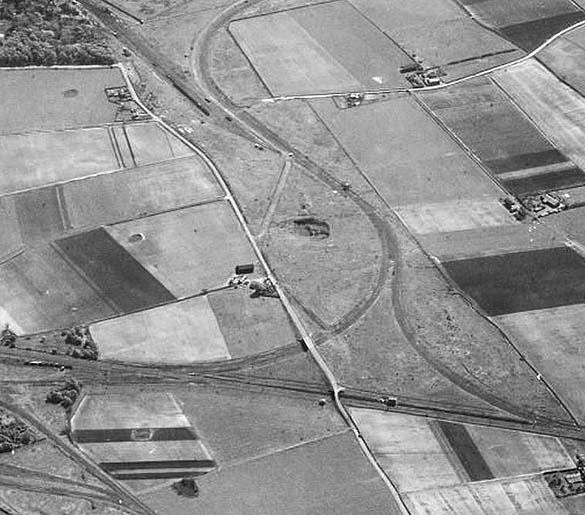

The Dale Lane triangle seen in 1947. The main line is seen running left to right Wigan being to the left and Liverpool to the right. Running from the top to bottom is Dale lane. to the left of Dale Lane on the main line in the centre of the triangle is Dale Lane Number 1 signal box.
Reproduced with the kind permission of Simmons Aerofilms Ltd

In 1942, Simonswood Inland Sorting Depot was opened to store imported goods away from the Liverpool ‘blitz’. The depot was rail-served, with four large storage sheds and a network of railway sidings; it was also served by road. Located on the north side of the main line the depot was connected to it at both its east and west ends. At the west end of the depot, Dale Lane No.1 controlled the connections and, to facilitate this, its frame was extended to 35 levers. The east end connections were controlled by a new Simonswood signal box. This opened in 1942 and was a LMSR ARP design signal box, replacing the old, 1884 built, Railway Signal Co box. The new box had a 40-lever ,LMS REC pattern lever frame, manufactured by the Railway Signal Co, Fazakerley. It also controlled two additional up and down goods lines to Rainford Colliery signal box.

The opening of the Simonswood Inland Sorting Depot completed the significant railway facilities at Kirkby. The area became very busy with the Royal Ordnance factory alone employing 23,000 workers at its peak of production. The Kirkby Royal Ordnance Factory produced 10% of all of the ammunition used by the British in the Second World War.

On 19 April 1945 there was an accident at the west fork junction at Dale Lane. A locomotive and brake van came off the west curve of the triangle and went onto the main line without authority to do so from the Dale Lane No. 1 signalman. It was run into by a Bradford to Liverpool Exchange express with the loss of six lives. As a result of the accident a further lever was installed in Dale Lane No.1 box to control a shunt-ahead signal underneath the down branch starting signal, which was situated at the west end of the triangle.

Kirkby Royal Ordnance Factory was intended to be a wartime-only facility and it closed after March 1946. The cessation date of railway operations is not recorded. Dale Lane No.2 signal box and the east fork line closed on 9 September 1951, after a period of disuse. The line to Kirkby Royal Ordnance Factory station would have closed at the same time, but appears to have been out of use for some time before this date.

The railway links to Simonswood Inland Sorting Depot were disconnected on 13 November 1960, but the exact date of cessation of rail traffic is not known. Simonswood goods lines were clipped out of use on 23 September 1963 and mothballed. They were permanently disconnected on 8 March 1964 and the signal box closed on 4th May 1965.

Kirkby Industrial Estate was built round the munitions factory area and rail traffic served the estate. Dale Lane No.1 signal box continued to control the west junction and west fork line, but only as sidings. The signal box was reduced to a ground frame on 8 May 1970 and closed on 2 September 1975. It was replaced with a 2-lever open ground frame which closed on 18 January 1976 after rail traffic had ceased.

On 8 April 2001 a new switch-panel ground frame opened at Dale Lane for new rail traffic, although this is now disused again, rail traffic having ceased.

Click here to see Kirkby Royal Ordnance Factory station

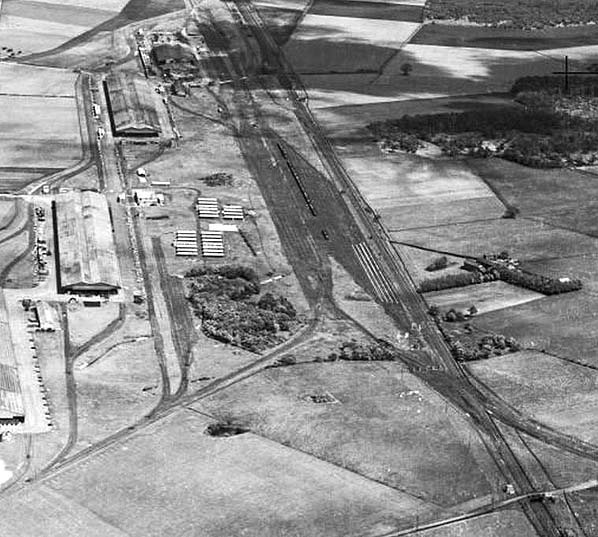

The Simonswood Inland Storage Depot seen from the air in 1946. The extensive areas of siding are clearly illustrated. In the bottom right corner is the east fork of the Dale Lane triangle. Dale Lane can also be seen bottom left with its bridge over the main line.
Reproduced with the kind permission of Simmons Aerofilms Ltd

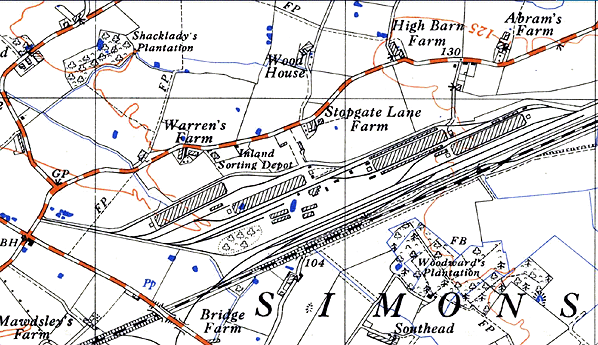

Simonswood Inland Sorting Depot shown on a 1:25,000 scale map from 1953.

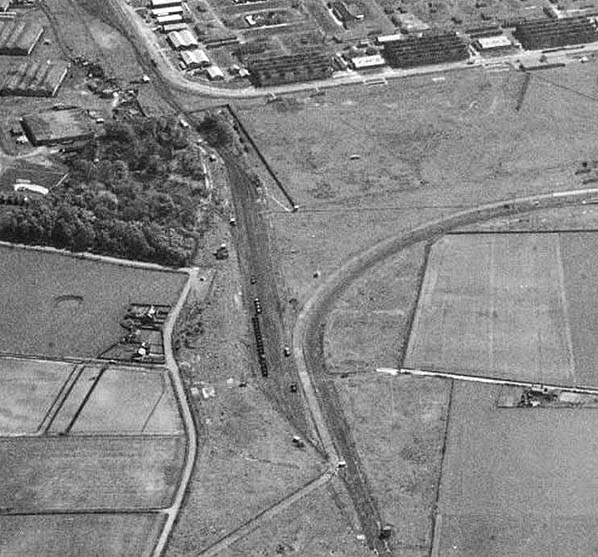

The Kirkby Royal Ordnance Factory branch seen from the air in 1947. At the bottom of the view is Dale Lane Number 2 signal box which controlled the junction at the south end of the Dale Lane triangle and the junction between the factory sidings and the line that ran to the passenger station. The passenger station line can be seen curving off to the right. Part of the Kirkby Royal Ordnance Factory can be seen at the top of the view.
Reproduced with the kind permission of Simmons Aerofilms Ltd

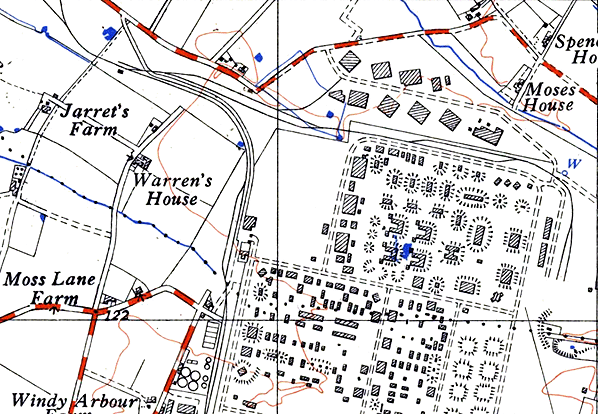

The northern end of the Kirkby Royal Ordnane Factory shown on a 1:25,000 scale map from 1953. The southern end of the Dale Lane triangle can be seen top left. Dale Lane number 2 signal box is also shown on the map as a small black rectangle above the words Jarret's Farm.

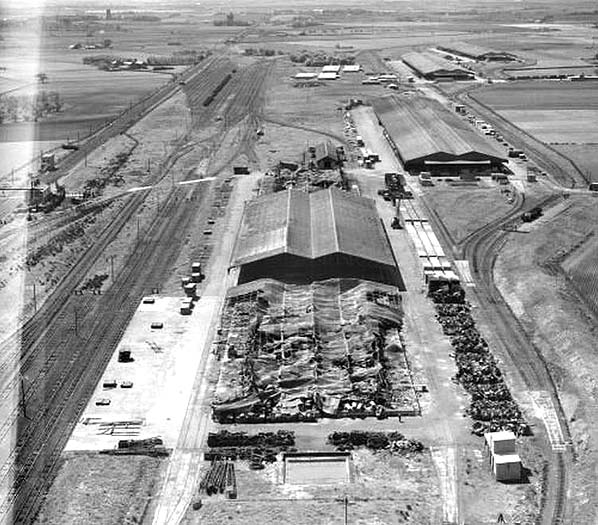

An aerial view looking west at the Simonswood Inland Storage Depot in 1946. one of the storage sheds had been badly damaged by fire. The main line can be seen top left. Also in view is the 1942 Simonswood signal box which controlled the connections into Simonswood at its eastern end.
Reproduced with the kind permission of Simmons Aerofilms Ltd

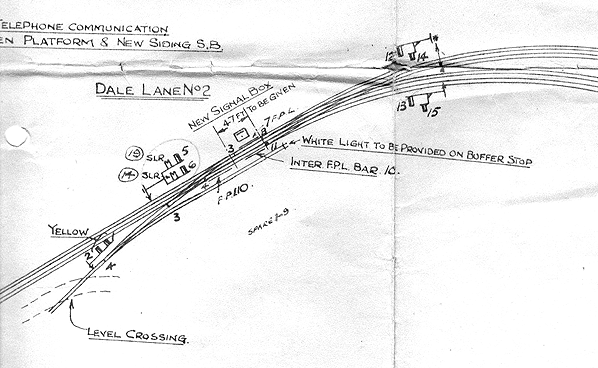

A signalling plan from 1940 showing the proposed arrangements at the south end of the Dale Lane triangle. Dale Lane number 2 signal box opened around May 1940.
From the Tony Graham collection


Dale Lane No.1 signal box seen looking east in April 1968.
Photo by Norman Daley

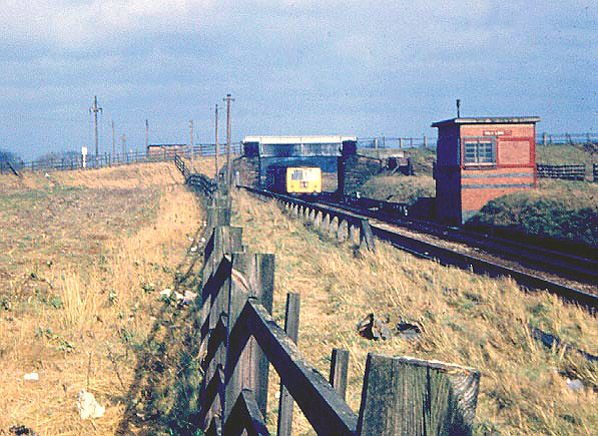

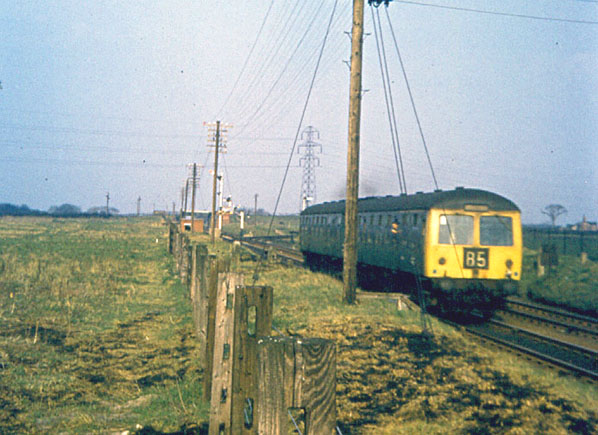

A view looking east towards Dale Lane junction in April 1968.
Photo by Norman Daley

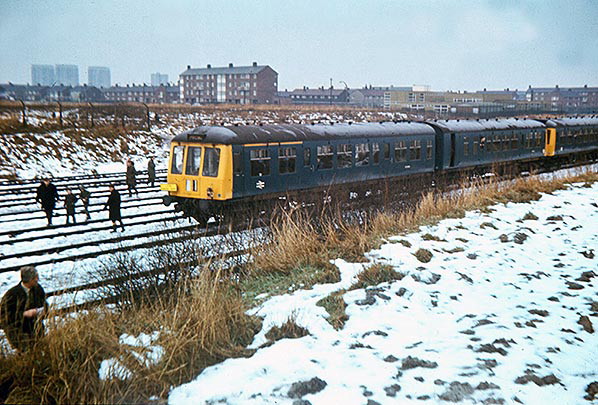

In February 1969 the Mersey Docker rail tour visited Dale Lane. it is seen here on the sidings that were situated to the east of the site of Dale Lane No.2 signal box.
Photo by Norman Daley


Looking north-west at the site of Dale Lane No.2 signal box on 15 April 2015.
Photo by Les Fifoot

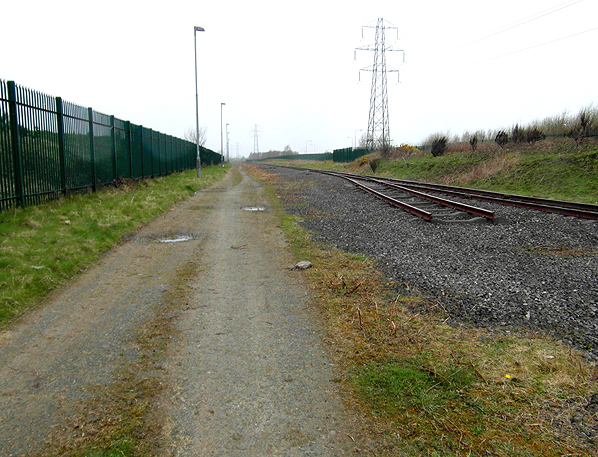

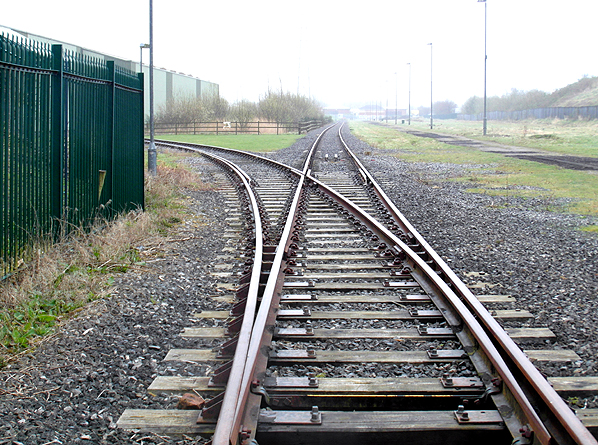

A view looking east along along the branch on 15 April 2015 from a point that is to the east of the site of Dale Lane No.2 Junction. The lines seen in the view were laid in 2000 and opened to traffic on 8 April 2001. They were out of use in 2015 but had a secure future as they will serve a domestic waste handling centre from 2017.
By Les Fifoot
