Station Name: LUTON HOO

[Source: Nick Catford]


Date opened: 1.9.1860
Location: South side of West Hyde Road
Company on opening: Hertford, Luton & Dunstable Railway
Date closed to passengers: 26.4.1965
Date closed completely: 26.4.1965
Company on closing: British Railways (London Midland Region)
Present state: Station and platforms are extant. The station building is now a private house and, although it is largely unaltered, it has been extended, doubling the size of the building.
County: Bedfordshire
OS Grid Ref: TL120179
Date of visit: June 1975, May 2006 & 27.12.2010

Notes: New Mill End station opened with the second section of the Hatfield to Dunstable line on 1st September 1860. From the opening day, John Leigh, the owner of Luton Hoo House, had an arrangement with the GNR that any train must stop at the station if requested. This agreement was not renewed the following year.

The station had a single platform on the down side of the line. The two-storey station building was of brick construction and comprised the stationmaster's house, booking office, waiting room and toilets. A short canopy protected passengers in front of the booking office. Unusually, this extended around three sides of the building to give protection to carriages carrying visitors to and from Luton Hoo House, one of whom was the Prince of Wales on 5th December 1878 and again on 7th December 1886 when the Prince and Princess stayed at Luton Hoo House for 5 days. Click here to see a newspaper article about the visit). A number of single-storey outbuildings extended along the platform to the north.

There was a small goods yard on the opposite side of West Hyde Road. This consisted of two (later three) sidings serving a cattle dock and pens, one siding passing the dock and the other a headshunt. An old wagon body was used as a goods shed, and there was also a platelayers’ hut - which is extant - and a coal yard. The station was renamed Luton Hoo (for New Mill End) on 1st December 1891: timetables and tickets continued to include ‘for New Mill End’ until the early 1950s.

The level crossing and access to the goods yard were controlled by a signal box on the north side of the level crossing and the up side of the line. This was closed c.1930 and replaced with a ground frame on the south side of the crossing: a separate ground frame controlled access to the goods yard.

The station closed to goods traffic on 25th November 1963 but remained open for passengers until closure of the line on 26th April 1965. Goods traffic continued to pass through until November 1965 when a connection with the Midland line at Luton opened. This made the track east of Luton redundant, and the rails through Luton Hoo were lifted in 1967.

The station remained empty and partly boarded up until at least the mid 1980s, after which it was renovated and extended as a private residence. The long-distance Lee Valley Walk runs past the station, but there is a restricted view of it due to a high fence along the platform edge.

Luton Hoo was served by a second station, Chiltern Green, on the Midland Railways main line. In the London Midland Region timetable index, Chiltern Green station was listed as Chiltern Green (for Luton Hoo). The station opened in 1868 and was only 600 yards from Luton Hoo. Luton Hoo was always more poplar with local commuter, and Chiltern Green was closed on 7th April 1952 because of declining passenger numbers. Both stations dealt with the Luton Hoo estate goods traffic, the bulk of it being handled by the yard at Luton Hoo.

During December 2012 Sustrans completed a project to surface the Upper Lea Valley Way from Luton to Harpenden which follows the line of the old railway. The route is part of NCN6 and this project is funded by the Big Lottery under as part of the Connect2 programme which consists of 80 schemes. As well as surfacing the scheme includes a portrait bench as well as gateway features and an interpretation board.

BRIEF HISTORY OF THE LEIGHTON BUZZARD TO WELWYN GARDEN CITY LINE
The London & Birmingham Railway opened the first section of its line between London Euston and Boxmoor (Hemel Hempstead) on 20th July 1837 and from Boxmoor to a temporary northern terminus at Denbigh Hall on 9th April 1838. The line had originally been planned to pass through Buckingham, but opposition from the Duke of Buckingham ensured that it was forced east through Linslade. One of the intermediate stations opened with the second part of the line was at Leighton, ¼-mile south of the Linslade tunnels.

Leighton was the nearest station to Luton, which was developing as an industrial town in the early 19th century. Although a direct stagecoach service between Luton and London had started in 1810, and Dunstable, to the west, was on an existing busy coach route, neither could serve the needs of the area. A branch line from Luton to the London & Birmingham at Leighton was proposed by George and Robert Stephenson in 1841, and it initially received considerable local support.

Nothing was done until 1844 when a meeting was held in Luton. By now there was mounting opposition to the scheme which would have to cut across the 'Great Moor', a large area of undeveloped common land close to Luton. This angered George Stephenson who vowed that Luton would not get a direct railway connection to London as long as he lived.

Although the Luton line was not built in Stephenson's lifetime (he died in 1849), a branch line to Dunstable received Royal Assent on 30th June 1845 with the passing of the Dunstable, London & Birmingham Railway Act which authorised a line between Leighton and Dunstable. Inevitably a meeting was held in Luton to discuss proposals from local businessmen to build a line from Luton to the new line at Dunstable once it was completed. Many people preferred a counter proposal for a direct line between
London and Manchester passing through Luton, which would be 14 miles shorter for passengers travelling to London, avoiding the need for a change of trains at Dunstable and Leighton. Another option was to build a branch to the Great Northern Railway's London to York line which was already under construction and would pass 12 miles to the east of Luton. The direct route was chosen as the best option which, at that time, left Luton without a railway while other branch lines in the area were already being planned and built.

The double-track Dunstable branch opened on the 1st June 1848 with a terminus on the west side of Watling Street and no intermediate stations (although a station at Stanbridgeford was opened in November 1860). By 1851 Luton was the largest town in Bedfordshire without a railway or canal to cater for its increasing industrial growth. In 1853 the GNR was approached to build a branch to their line at Hatfield, but this was turned down.

On 3rd July 1854 the Hertford & Welwyn Junction Railway received parliamentary authority to build a line from the North Eastern Railway at Hertford to the GNR at Digswell, and on 30th September 1854 there was a proposal to extend this line across the GNR to Luton and Dunstable linking three established railway companies (NER, GNR & LNWR). Not wanting to be left out, the GNR offered to work the line between Hatfield and Luton although it was not prepared to provide any finance.

The Luton, Dunstable & Welwyn Junction Railway Act was passed on the 16th July 1855 authorising a junction with the LNWR at Dunstable and a triangular junction with the GNR at Digswell together with a bridge over the GNR to allow through running over the H & WJR between Hertford and Dunstable. All three companies were authorised to work the line.

A single track was built (with the intention of doubling in the future) with construction starting on 16th October 1855 which, in Luton, was designated as a half-day public holiday as residents had waited so long to get a railway!

Unfortunately the company was unable to raise sufficient capital to purchase all the necessary land between Welwyn and Luton. The LNWR refused to help by leasing the line although they did offer to work the line for two years after completion. In an attempt to save the line an amalgamation between the H & WJR and the LD & WJR was proposed. This was bitterly opposed by a minority of disgruntled Luton shareholders who claimed that passengers would be forced to travel to London via the Eastern Counties main line at Hertford rather than using the shorter GNR route via Hatfield. The amalgamation and formation of the Hertford Luton & Dunstable Railway was passed at a heated meeting on 26th January 1858, but although both lines were completed and approach embankments were constructed, the linking bridge was never built due to restrictions imposed by the GNR. The Hertford line was opened to passenger traffic on 1st March 1858 between Hertford (Cowbridge) and a short-lived station at Welwyn Junction on the GNR.


Luton Hoo Station in the foreground with nearby Chiltern Green Station behind
Work on the Luton line had been progressing during the amalgamation negotiations, and at a shareholders’ meeting on 6th August 1857 it was announced that the first section of the line between Luton and Dunstable was ready for goods traffic. Several goods wagons were fitted with seats to take shareholders along the line. The line was initially inspected on 18th March 1858 and, after a turntable was provided at Leighton at
the request of the Board of Trade inspector, the line was passed a month later, with a goods service running from 5th April 1858 and a passenger service from 3rd May 1858; large crowds travelled to Luton station for a day to take part in the celebrations and ride on the new line.

Initially there were five trains in each direction on weekdays only; two of these were later extended to Leighton. At this time Luton trains used a new station in Church Street, Dunstable, with through trains to Leighton bypassing the LNWR station which was at a lower level. Initially an end-on connection had been proposed which would have required raising the level of the road by three feet to provide a level crossing. This was rejected by Parliament, so a diversion was authorised in 1856 taking the new line over Watling Street, rejoining the Leighton line to the west of Dunstable station. A proposed new station at the junction was not built at that time, although through trains from Luton could back into the LNWR station if required.

April 1860 the HL & DR informed both the Eastern Counties Railway and the GNR that they were ending the 1858 agreement. The GNR immediately took steps to take over the line because of its strategic importance as a link between the three main lines; a Parliamentary Bill was prepared to facilitate this. At this time the line was nearing completion, with a special train carrying
LNWR officials on 12th June and another 'special' on 17th July for company shareholders. After passing its Board of Trade inspection, the line between Luton and the Great Northern was opened to both goods and passenger traffic on 1st September 1860 with intermediate stations at New Mill End, Harpenden and Wheathampstead. At this time a Sunday service was introduced for the first time.

There was a junction with the GNR at Welwyn, but no station was provided, and the H & WJR station at Welwyn Junction was closed with trains on both lines terminating at Hatfield.

In 1864 there were six daily down trains between Hatfield and Leighton, with five up trains. There were a further two down trains between Luton and Leighton in the early morning with two up trains in the afternoon and evening and one train in each direction between Hatfield and Dunstable. On Sundays there were two down trains between Hatfield and Dunstable, with one up train with two short-running services.

The Hertford, Luton & Dunstable Railway was absorbed by the GNR under the Great Northern Railway Act of 12th June 1861. This gave the GNR exclusive rights to operate the line, although a clause in the Act gave the LNWR joint rights to use the section between Dunstable and Luton. In December 1868 new parallel lines into Hatfield were brought into use for the branch services, and the earlier junctions were removed in January 1869.

Although built as single track throughout, it was always the intention that the line would be doubled, and sufficient land was acquired over some of the route. In the late 1890s the Great Northern line between Digswell and Hatfield was widened with a new track being provided for Dunstable trains, and the old Dunstable line becoming the new down slow main line In 1890 passenger numbers were sufficiently high for doubling the line between Luton and Dunstable. This was authorised by Parliament in 1891, but progress was slow and it did not open until 10th September 1899. Proposals to double the remainder of the line brought a lukewarm response from the GNR. Passenger numbers increased through the 1890s, and by 1900 there were nine trains in each direction between Luton and Dunstable, with eight in each direction between Luton and Dunstable and seven between Dunstable and Leighton.

In 1920 the new town of Welwyn Garden City was founded by Sir Ebenezer Howard, following his previous experiment in Letchworth Garden City. Howard had called for the creation of planned towns that were to combine the benefits of the city and the countryside and to avoid the disadvantages of both. During the construction of the new town, temporary contractors’ halts were provided at the junction of both the Hertford and Luton lines, close to the site of the earlier Welwyn Junction station. The halt on the Luton line became a public station on 14th August 1920, remaining in use until 20th September 1926 when the new Welwyn Garden City station was opened.

Through the 20th century the line remained very profitable, due in part to the large number of private sidings, in particular those serving chalk quarries near Dunstable, the sand and gravel pits around Leighton Buzzard and, later, Vauxhall Motors in Luton.

Following the 1923 general grouping the Dunstable branch became part of the London Midland & Scottish Railway while the Hatfield to Dunstable line was part of the London & North Eastern Railway. This split continued after nationalisation in 1948 with British Railways Eastern Region being responsible for the Hatfield line as far as Harpenden down distant signal, with the remainder of the line coming under the London Midland Region. On 2nd April 1950 the boundary was adjusted, transferring Harpenden (East added on 25th September 1950) to the LMR.

Diesel-hauled freight trains started replacing steam in February 1959, and passenger trains in June 1959, the latter being replaced with DMUs in 1962.

In common with many other branch lines passenger numbers went into rapid decline in the 1950s. The Sunday service was withdrawn on 21st January 1951, but a service of seven down and five up trains between Hatfield and Dunstable was maintained until closure of the line with four trains in each direction between Dunstable and Leighton Buzzard. The passenger
service between Dunstable North and Leighton Buzzard was withdrawn from 2nd July 1962 with the last 'Dunstable Flyer', as it had been nicknamed, running on 30th June.  Two enthusiasts’ specials travelled along the line after closure, both arranged by the South Beds Locomotive Society: the first on 22nd September 1962 ran between Luton and Banbury and the second, the 'Cobbler Tour', on 19th September 1964, ran from Luton to Leighton Buzzard and on to Newport Pagnell, returning to Luton via the Midland main line.

The line remained open for freight traffic until 1st January 1966 after which it was cut back to Grovebury sidings south of Leighton Buzzard, serving sand and gravel pits, until final closure on 5th December 1969. Track-lifting was piecemeal, starting at Dunstable in late 1968 but not reaching Stanbridgeford until July 1969. Track-lifting west of Stanbridgeford started in February 1970 and was not completed until February 1971. National Cycle Route 6 now follows what is now known as the Sewell greenway between Stanbridgeford and Dunstable.

The Hatfield line was scheduled to close on 6th January 1965 as part of the Beeching cuts. Closure was deferred following local objections - but only until 24th April when the last 'Skimpot Flyer' carried a wreath and a large number of passengers on a farewell journey along the line: it returned to Hatfield almost empty! The line remained open for freight and for goods traffic to Luton Bute Street until 26th June 1967. After that date the line between Luton and Dunstable was singled and retained to serve the Dunstable Cement works at Houghton Regis, with a new connection from the Midland main line at Luton opening in November 1965. The east end of the line was also retained for rubbish trains bound for Blackbridge sidings east of Wheathampstead. Track lifting on the remaining section between Blackbridge and Luton started at the Eastern Region/London Midland region boundary west of Harpenden East station on 8 May 1966 towards Luton and from 26th February 1967 towards Blackbridge. Blackbridge sidings closed in May 1971, and much of the track between Welwyn Garden City and Wheathampstead now forms the Ayot Greenway cycleway and footpath, with the the trackbed between Luton Hoo and Harpenden is incorporated into the 50-mile Lee Valley Walk.

A number of enthusiasts’ specials visited the remaining line between Luton and Dunstable. In October 1968 a special train ran from St Pancras to Bedford, returning to Luton, where it was the first passenger train to use the connection between the Midland and Bute Street station. It continued to Dunstable North as part of the Midland Railway London Extension centenary celebrations. The last passenger excursion was on 17th January 1987 when Hertfordshire Railtours’ 'Chiltern Chariot' visited the line running to the Dunstable cement works via the Vauxhall sidings. The line was finally closed to all traffic when trains to the oil depot, on the site of the Great Northern goods yard at Dunstable North, were withdrawn in 1989, by which time the line had just one train per week. Apart from the section through the site of Bute Street station, the track was then mothballed.

In the early 2000s the South Midland Railway Group set up a base in the ex-Bedford Trucks sidings on White Lion Retail Park at Dunstable and planned to form a transport heritage centre. The site was linked to the mothballed line to Luton via an illegally reinstated connection which the group hoped to reopen in the long term. The lease of the yard, however, was not
secured, and in July 2001 it was reported that the group was in dispute over their occupation of the site. The project ended when the illegal connection to the Luton to Dunstable branch line was removed in March 2001, and vehicles were removed in July 2001 and January 2002; the remaining railway vehicles on the siding were finally cut up by the council, and the tracks were lifted in 2005.

In December 2003 the Department for Transport approved the Transport & Works Act submission for a £85m scheme to convert the line into a guided busway. Planning permission and a Transport & Works Order were granted in November 2006, and the Transport Minister gave the go-ahead in August 2008. Tenders for its construction were sought in July 2009.

In May 2009 a group called the South Bedfordshire Railway was proposing to set up a short heritage railway at Dunstable alongside the proposed busway. Luton Borough Council said the scheme might be possible if a society and funding were in place by winter 2009. The group was unable to meet the deadline.

The overgrown track was cleared of vegetation in spring 2010, and funding for the busway was approved in June. Track-lifting between Luton and Dunstable began in autumn 2010 and was completed in January 2011. Three bridges, including one immediately north of Dunstable Town station, were demolished in October 2010. The 'Luton to Dunstable Busway' (previously known as Translink) will link Luton airport and Houghton Regis following the former railway line between Luton and Dunstable and the route of the siding to the Dunstable cement works at Houghton Regis. It will open in 2012.

Sources: Wikipedia (Leighton Buzzard station) and the Hatfield, Luton & Dunstable Railway by G & S Woodward (1977). Published by Oakwood Press ISBN 978-0-853614-58-6.

For further reading see Hertfordshire's lost railways by Keith Scholey ISBN ISBN 1 84033231 X and Bedfordshire's lost railways by Keith Scholey ISBN ISBN 184033 271 9 and Branch Line to Dunstable by Sue & Geoff Woodward (2008) Published by Middleton Press ISBN 978-1-906008-27-7.

Other web sites: Lost lines - features photos taken along the line between 1989 - 2007. BBC Beds, Herts & Bucks web site. Disused Railways web site. Click here to see an aerial view of the whole Leighton Buzzard - Dunstable line on Google Earth. All the stations are shown. Prepared by Mark Percival.

Tickets from Michael Stewart, route map drawn by Alan Young.

Click here for pictures of the Henderson family who lived in the station house in the 1950s. Tom Henderson was stationmaster at Luton Hoo.

To see other stations on the Leighton Buzzard - Welwyn Garden City line click on the station name: Leighton Buzzard, Stanbridgeford, Dunstable North, Dunstable Town, Chaul End, Luton Bute Street, Harpenden East, Wheathampstead, Ayot, Welwyn Garden City Halt (first station) & Welwyn Garden City (second station)

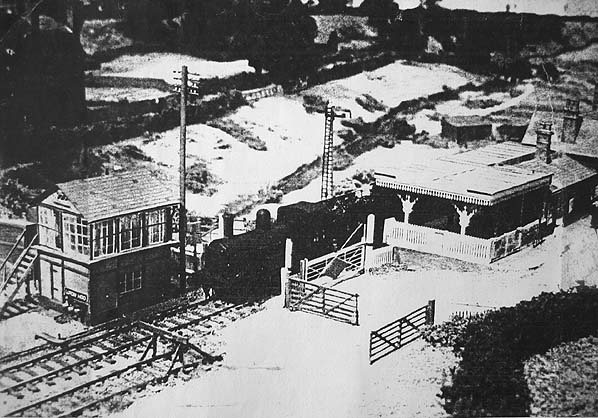

A rare view of Luton Hoo station c.1920s showing the 18-lever signal box that controlled the level crossing and access to the goods yard. The box was closed c.1930 and replaced with a ground frame to control the crossing: a separate ground frame controlled access to the goods yard. (Note: This could be a picture of a model railway layout because of the high viewpoint)

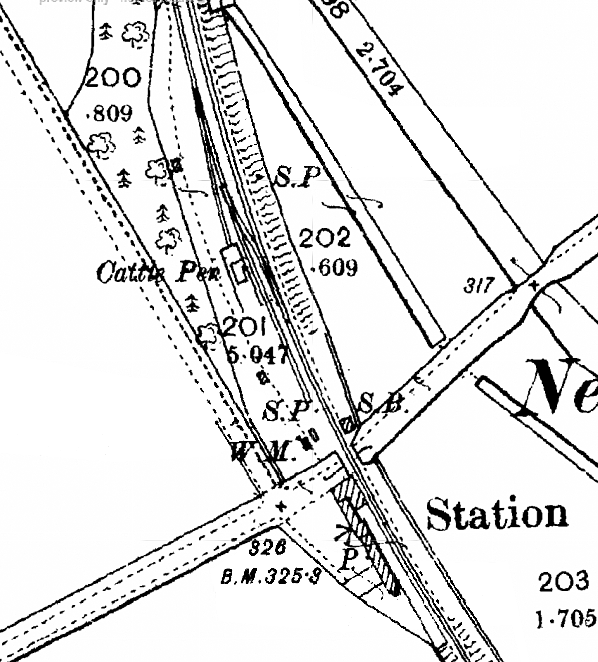

1901 1:2500 OS map.
.

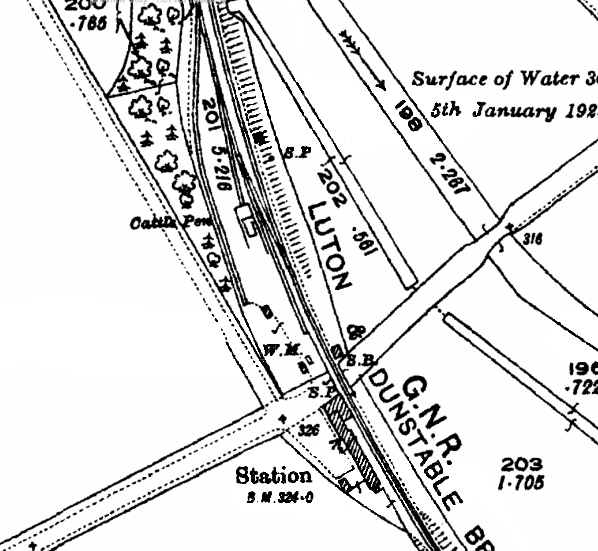

1924 1:2500 OS map. Note the building on the station forecourt that doesn't appear on the 1901 map above. The building is extant but its function is unknown.

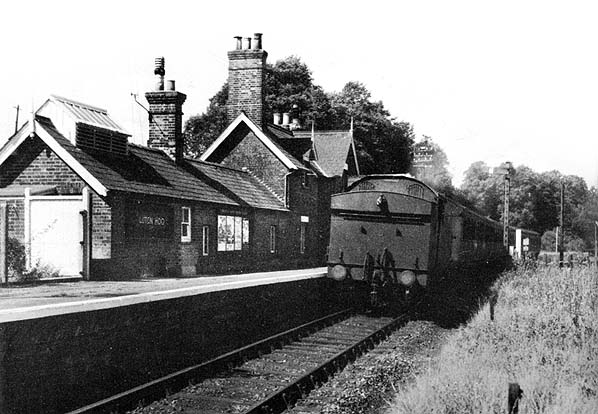

Luton Hoo station looking north in August 1958. The loco is 69678 an ex-LNER, N7/3, 0-6-2 tank. It was introduced by the LNER in 1927.
Photo by J Spencer Gilks

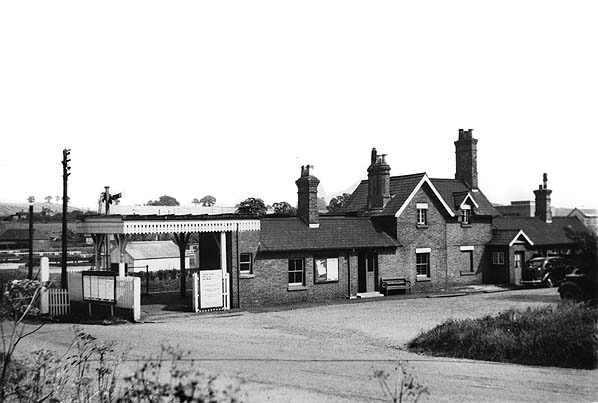

Luton Hoo station forecourt in September 1959. It is unusual for a canopy to also cover part of the station forecourt. This was provided as protection for carriages delivering passengers to the station from Luton Hoo House.
Copyright photo by R M Casserley

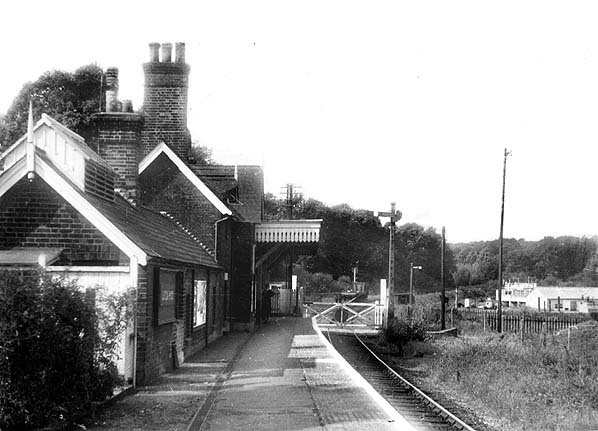

Luton Hoo station looking north in September 1959.
Copyright photo by H C Casserley


Down train leaving Luton Hoo station in March 1965
Photo by David Pearson

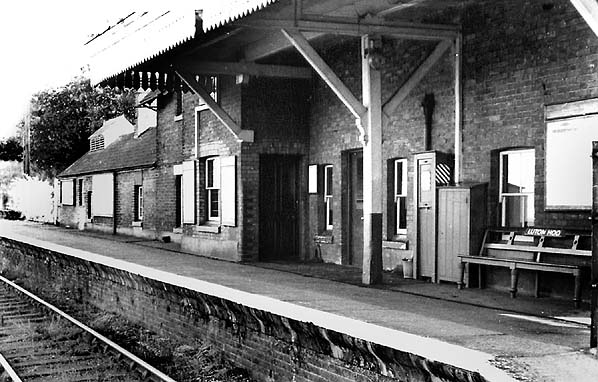

Luton Hoo station c.1960s.
Copyright photo from John Alsop collection

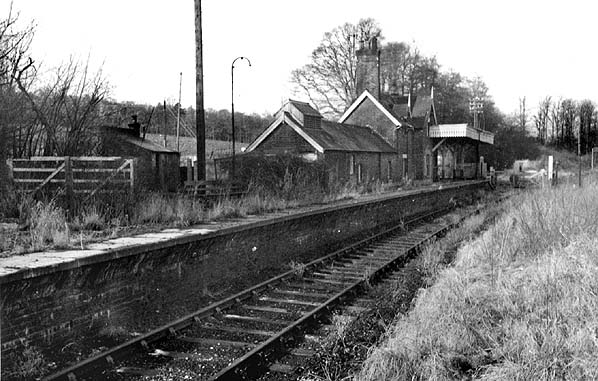

Luton Hoo station looking north in January 1967, shortly before the track was lifted.
Copyright photo by Nigel Mundy

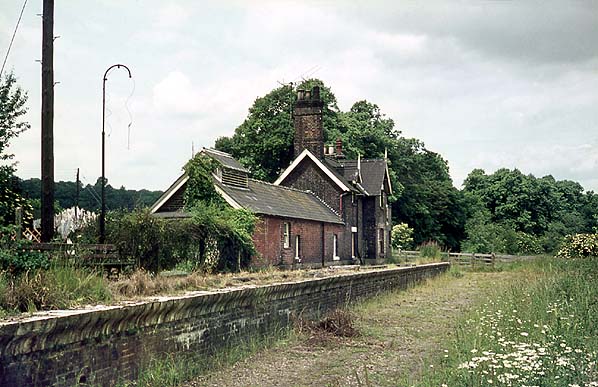

Luton Hoo station looking north in 1969.
Photo by Ian Baker

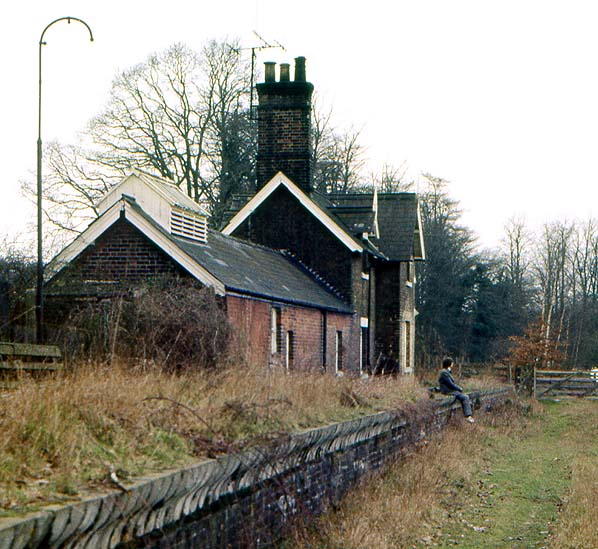

Luton Hoo station looking north in February 1976.
Photo by Alan Young

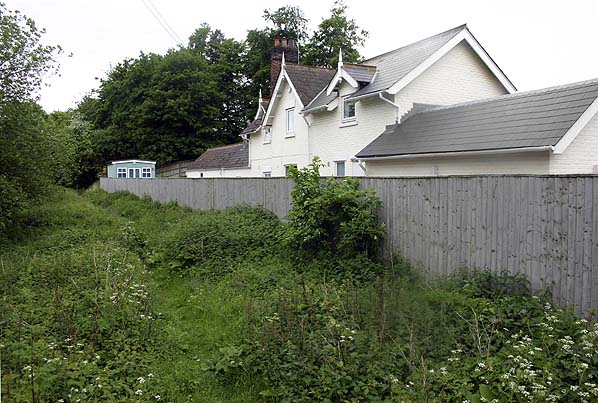

Luton Hoo station looking south in May 2006.
P
hoto by Nick Catford

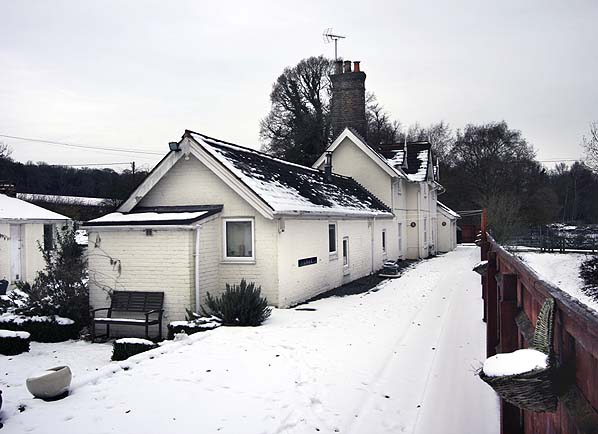

Luton Hoo station looking south in December 2010.
Photo by Nick Catford

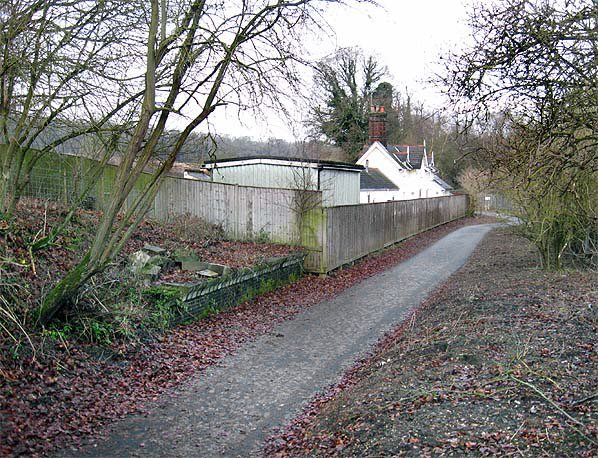

Luton Hoo station looking north in December 2012 shortly after the completion of the upgrading of the Upper Lea Valley Way to a cyclepath.
Photo by Peter Bate

Click here for more pictures of Luton Hoo station








[Source: Nick Catford]
