Station Name: TREGARTH

[Source: Les Fifoot, John Wilson & Paul Wright]


Date opened: 1.8.1884
Location: East side of Ffordd Tanrhiw in Tregarth village.
Company on opening: London & North Western Railway
Date closed to passengers: 3.1.1951
Date closed completely: 7.10.1963
Company on closing: British Railways (London Midland Region)
Present state: Demolished with a short section of platform at west end extant.
County: Caernarvonshire
OS Grid Ref: SH602680
Date of visit: 30.1.2013

Notes: Tregarth station was situated on the London & North Western Railway (LNWR) Bethesda branch. The single-track branch was a 4-mile 26-chain line that linked the village of Bethesda to the Chester and Holyhead main line 52ch east of Bangor at Bethesda Junction. Between Bethesda Junction and Bethesda the line climbed by over 300ft which meant that there were steep gradients. The branch was authorised in 1880, engineered by Edward Walter Nealor Wood, C.E., and opened to passengers on 1 July 1884. Goods services were introduced on 1 September 1885. The branch closely followed the route of the Penrhyn Railway, a narrow gauge line that linked quarries in the Bethesda area to the coast. The Penrhyn Railway was owned by Lord Penrhyn and dated back to 1800. Originally horse-worked, steam operation was introduced in1877/8. The Bethesda branch crossed the Penryhn Railway three times (once under and twice over) and was built primarily to move slate from the quarries in the area.

Originally Tregarth was provided with a signal box but it was an early closure being replaced by an eight lever ground frame at an unknown date.

From the start passenger services ran between Bethesda and Bangor. The December 1895 timetable showed five up and five down trains from Tregarth on Monday-to Saturday.

Originally standard trains operated with locomotives and coaches. The locomotive was able to run around its train at Bethesda and at Bangor. In 1906 the LNWR introduced a single-coach rail-motor to the service. It operated for a few years but was replaced in 1910 with two-coach push-and-pull trains that used 0-4-2 tank locomotives fitted to operate in push-pull mode. The locomotives were coupled to two coaches, the coach further from the locomotive having a cab so the driver could control the train from that end via a pulley and bell system. When the driver was in the coach end of the train the fireman operated the locomotive alone. On the Bethesda branch the push-and-pull sets were arranged so that the locomotive was at the Bethesda end of the train. It pulled the train up to Bethesda and pushed it down to Bangor - although due to the gradients it would have had to do very little pushing.

By July 1922 the service operated by the push-and-pull trains had improved, there being eight departures and eight arrivals on Monday-to-Friday as shown in the table below.

Up Trains July 1922

Destination

Down Trains July 1922

Destination

8.09am

Bangor

7.50am

Bethesda

9.24am

Bangor

9.08am

Bethesda

10.29am

Bangor

10.13am

Bethesda

12.41pm (Saturday Only)

Bangor

1.23pm

Bethesda

1.39pm (Saturday Excepted)

Bangor

3.13pm

Bethesda

1.44pm (Saturday Only)

Bangor

4.36pm

Bethesda

3.34pm

Bangor

5.45pm

Bethesda

4.49pm

Bangor

7.15pm

Bethesda

5.59pm

Bangor

9.20pm (Wednesday and Saturday Only)

Bethesda

7.29pm

Bangor

10.15pm (Saturday Only)

Bethesda

9.34pm (Wednesday and Saturday Only)

Bangor

10.39pm (Saturday Only)

Bangor

On 1 January 1923 Tregarth became part of the London Midland & Scottish Railway (LMS). The LMS summer timetable for 1932 showed Tregarth as having sixteen arrivals and departures on Monday-to- Friday with nineteen on Saturdays. There were even nine trains on Sundays. A good service continued to run throughout the 1930s despite competition from local buses. Being centrally located Tregath was popular with local residents and was well used. Some trains even continued on from Bangor to Menai Bridge and beyond.

During the Second World War the Bethesda service was cut back dramatically, and when the war ended it was not restored to its former frequency. The Bethesda branch became part of British Railways (London Midland Region) on 1 January 1948. The summer timetable for 1948 showed eight Departures and eight Arrivals Mondays-to-Fridays as shown in the table below.

Up Trains Summer 1948

Destination

Down Trains Summer 1948

Destination

7.48am

Menai Bridge

7.36am

Bethesda

8.45am

Bangor

8.35am

Bethesda

11.53am

Bangor

11.41am

Bethesda

1.15pm (Saturday Only)

Bangor

1.01pm (Saturday Only)

Bethesda

3.28pm

Bangor

3.11pm

Bethesda

4.48pm

Bangor

4.36pm

Bethesda

5.58pm

Bangor

5.46pm

Menai Bridge

8.13pm

Bangor

7.41pm

Bethesda

9.23pm

Bangor

9.11pm

Bethesda

Although Tregarth remained popular with locals the same was not true with the other stations because of the poor service and strong competition from local buses and by 1950 the Bethesda branch had become unprofitable. Typically by this time the trains on the branch consisted of only one coach. British Railways proposed withdrawal of passenger services in 1951, but despite strong local opposition the last train ran on 1 December 1951. The train was worked by 0-6-2T locomotive number 58903. It was driven by Huge Caulfield and fired by Eric Lynn. Tregarth and the other stations on the line formally closed to passengers on 3 December 1951.

Goods services continued to run up to Bethesda after closure to passengers but as the years went by they became more sporadic. Tregarth continued to receive deliveries of coal by rail until 7 October 1963. On 20 October 1963 the Stephenson Locomotive Society ‘Caernarvonshire Rail Tour’ passed through Tregarth on its way to and from Bethesda. It was the very last
train ever to travel along the branch. After it had departed the line was formally closed, and track-lifting by road vehicles began the following day.

The station building remained in good condition until the late 1980s. A short section of platform survived the demolition of the station and could still be seen in 2013.

Tickets from Michael Stewart, route map drawn by Alan Young

Sources:

To see the other stations on the Bethesda branch click on the station name:
Felin Hen and Bethesda

See also:

Bangor, Tregarth Tunnel and Bethesda Branch Features

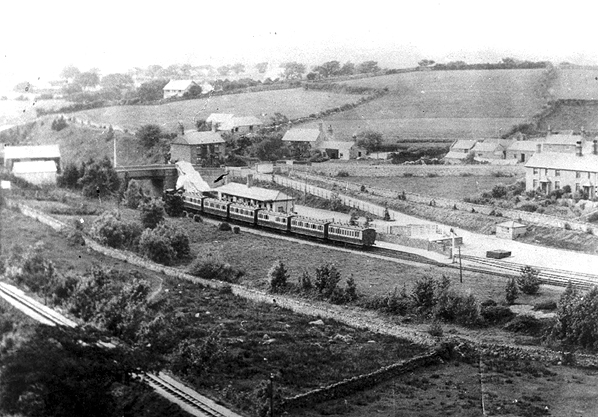

Looking north-west at Tregarth station from an elevated position in the first decade of the twentieth century. A train for Bangor is seen departing from the station. In the bottom left corner of the photograph the Penrhyn Railway can be seen.
P
hoto from the Ken Robinson collection

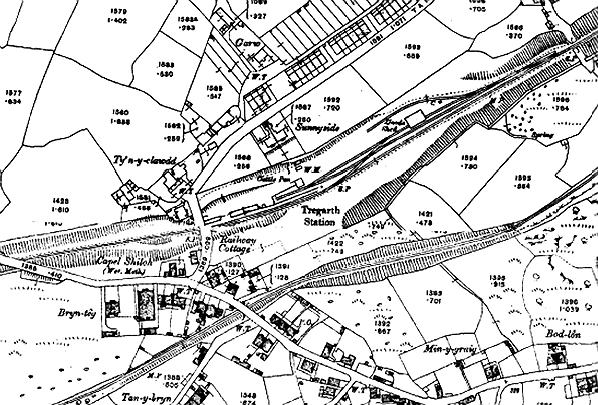

Tregarth station shown on a 1914 map.

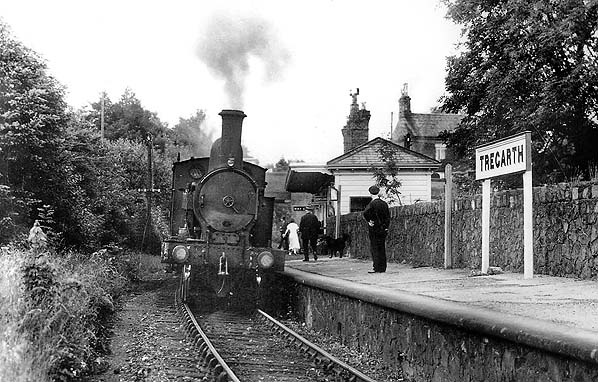

Looking towards Bangor from the track bed at Tregarth in 1949. A London and North Western radial tank loco stands at the platform with a passenger train for Bethesda.
Photo from John Mann collkection

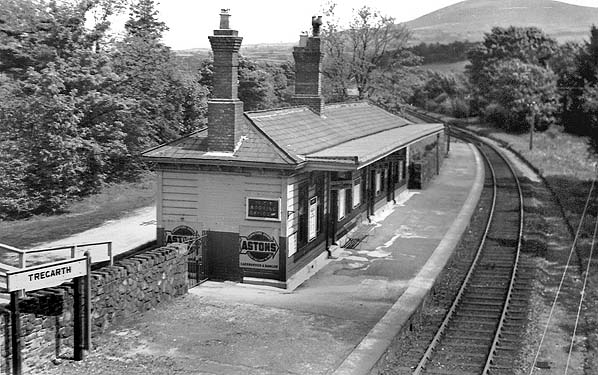

Looking towards Bethesda from the Ffordd Tanrhiw road bridge in 1949, less than two years before the station closed to passenger traffic.
Photo from John Mann collkection

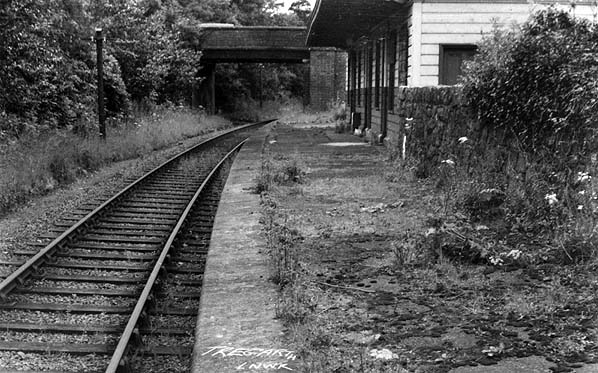

A view from the platform at Tregarth looking in the Bangor direction in the early 1960s, not long before final closure of the line. Although the station building is still intact, some of the windows are boarded up, and vegetation is starting to take over the platform.
Photo from the John Mann collection

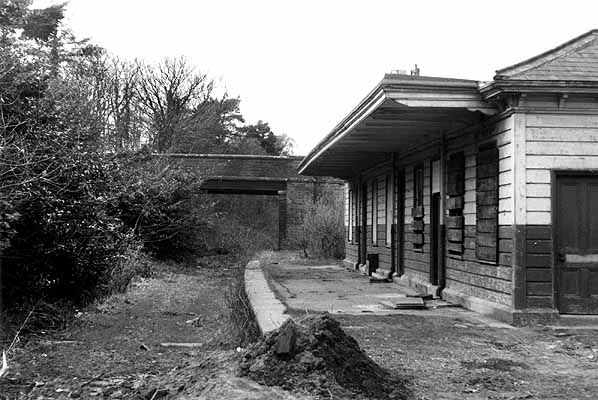

The same view as the picture above, around ten years later in April 1973. The station building remains unchanged, but evidence of excavation can be seen in the foreground.
Photo by John Mann

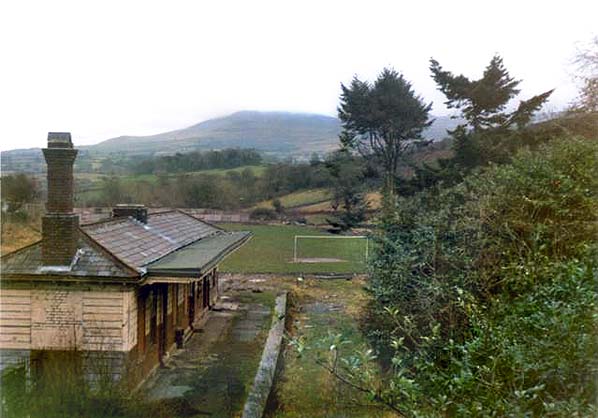

A view of Tregarth from the Ffordd Tanrhiw road bridge looking in the Bethesda direction in 1973. The trackbed west of the station building, together with the goods yard, has been levelled off and made into a recreation field.
Photo by David Stolwell

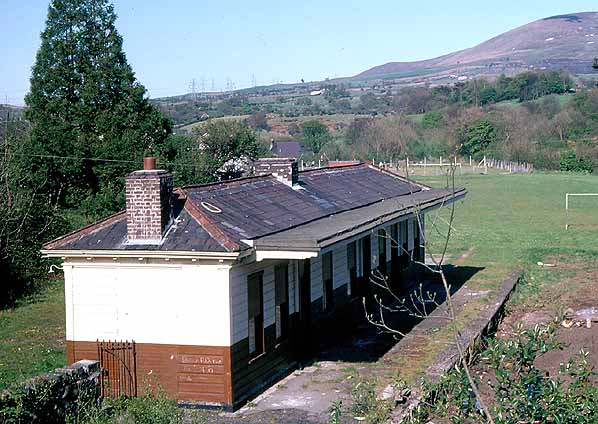

Tregarth station on 2 May 1981.
Photo by Alan Young

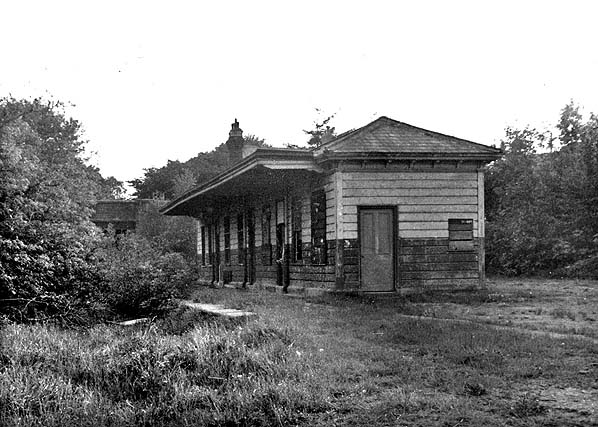

By 1977 the station building still remains fairly intact, but vegetation has now taken over the remaining track bed, and is starting to grow over the platform.
Photo by Nigel Mundy

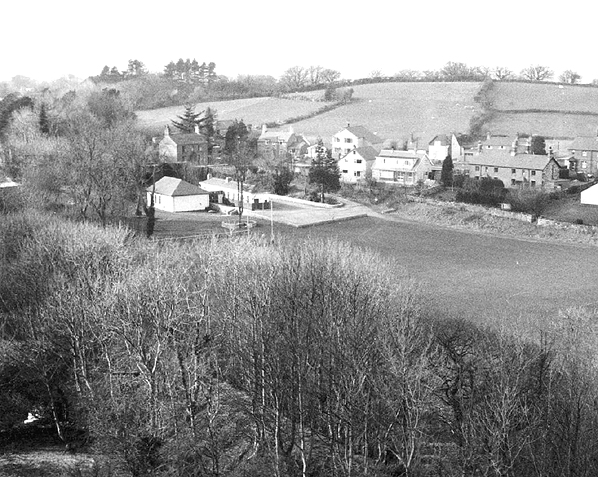

Tregarth station looking north-west in 1987, from the same viewpoint as the 1910 view (above). The station building is still present at this time. Also of interest is the Penrhyn Railway trackbed which can be seen at the bottom of the photograph.
P
hoto by Ken Robinson

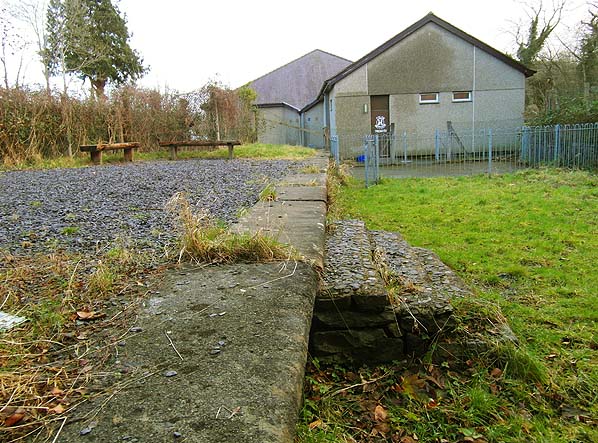

Looking in the Bethesda direction from the platform edge on 31 January 2013. All that remains of the station is the section of platform. The trackbed survives from the road bridge to a children’s nursery, which now occupies the west end of the site.
Photo by Les Fifoot

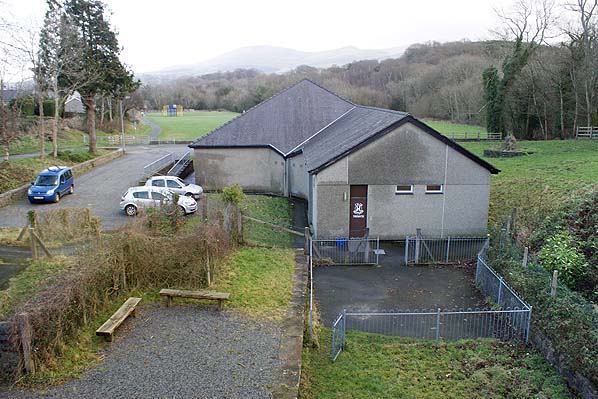

A similar view to the picture above, but taken from the road bridge, on 31 January 2013. The recreation field and car park behind the nursery have obliterated not only the goods yard but also any remains of the immediate track bed to the west of the site.
Photo by Paul Wright
