Station Name: BARNARD CASTLE

[Source: Nick Catford]


Date opened: 8.8.1861
Location: On the west side of Harmire Road (B6278)
Company on opening: South Durham & Lancashire Union Railway
Date closed to passengers: 30.11.1964
Date closed completely: 5.4.1965
Company on closing: British Railways (North Eastern Region)
Present state: Demolished - all trace of the station has now gone with a Glaxo works and car park occupying the site. The stationmaster's house is still extant at 57 Montalbo Road.
County: Durham
OS Grid Ref: NZ053176
Date of visit: June 1968 & 1.8.2007

Notes: Initially there was one signal box at Barnard Castle but with the doubling of much of the track on the Stainmore route a second had been added by 1875. Barnard Castle East box controlled the level crossing to the west of the station, access to the goods branch into the original passenger terminus and the junction between the West Auckland and Darlington lines. It also controlled access to the two bay engine shed to the east of the level crossing which opened in 1865 and closed in 1937. Beyond the engine shed there was a turntable. The West Box controlled an extensive network of sidings that were located on the north side of the passenger platform.

Barnard Castle consisted of a single through platform with a bay platform at either end; the bay at the east end was out of use by 1954 when the track was lifted. The central part of the platform was covered by an small 'trainshed' (overall roof) with a short canopy projecting from the west end of the station building. The original cast iron canopy was replaced by a new structure in 1949.

Although the original terminus was retained as a goods station the 1897 ordnance survey map clearly shows that the second station also had goods platform on the south side of the bay platform served by three sidings.

BRIEF HISTORY OF THE DARLINGTON TO TEBAY LINE (STAINMORE) & THE KIRKBY STEPHEN TO CLIFTON LINE (EDEN VALLEY)
From 1832 there were numerous proposals to build a branch line from Barnard Castle to the Stockton & Darlington Railway but these met stiff opposition from successive Dukes of Cleveland who owned most of the land around Barnard Castle. Eventually a Bill was approved in 1854 for a line from a junction with the S & D at Darlington to Barnard Castle.

The line was built by the Darlington and Barnard Castle Railway opening on 9th July 1856 with intermediate stations at Broomielaw, Winston, Gainford and Piercebridge.

In 1856 the South Durham & Lancashire Union Railway was formed with the object of building a freight line from Bishop Auckland to Barnard Castle and across the Stainmore summit in the Pennines to Tebay on the Lancaster & Carlisle Railway. This is a sparsely populated area and initially there were no proposals for a passenger service, the proposed line would carry iron ore from Barry in Lancashire to the blast furnaces of Teesdale while in the opposite direction coke and coal were carried to the iron ore mines which had flourished in the Furness district of Lancashire. The Act for the construction of this line which by now included a passenger service, encountered practically no opposition and the Royal Assent was granted on 13th July 1857 with work starting at Kirkby Stephen six weeks later.

Despite the difficult terrain, progress on the 35 mile line between Barnard Castle and Tebay was rapid and this section opened to mineral traffic on 4th July 1861 with the passenger service commencing from a second terminus at Barnard Castle on 8th August 1861 with intermediate stations at Lartington, Bowes, Kirkby Stephen, Smardale, Ravenstonedale and Gaisgill. A sixth station at Barras was initially freight only first appearing in the passenger timetable in February 1862. The remaining section of the Lancashire Union line between Barnard Castle and Bishop Auckland was opened to passenger traffic on 1st August 1863. The line included a number of major engineering features mostly notably the 1040 foot 16 span Belah metal viaduct.

In the meantime, the Eden Valley Railway Company was formed in 1856 to build a line from a junction with the Lancashire Union at Kirkby Stephen to a junction with the Lancaster & Carlisle Railway at Clifton with intermediate stations at Musgrave, Warcop, Appleby, Kirkby Thore, Temple Sowerby & Cliburn. Construction started on 4th August 1858 and the line was opened for mineral traffic on 8th April 1862 and to passengers on June 1862. A further intermediate station was added at Clifton on 1st August 1863 and a junction with the Midland Railway's Settle - Carlisle line was provided 500 yards north of Appleby Station.

The two stations at Barnard Castle were some distance apart necessitating a long walk. To alleviate this, trains from Darlington were diverted into the Lancashire Union station on 1st May 1862 and on the same day the original terminus was closed to passengers but remained open for freight until 5th April 1965.

Both the Lancashire Union and the Eden Valley lines were worked by the Stockton & Darlington Railway from the outset and that company took them over on 30th June 1862, only to be swallowed by the North Eastern Railway on 13th July 1863.

The timetable for September 1961 showed only two trains in each direction between Darlington and Tebay and the line always struggled to attract many passengers beyond Barnard Castle; at the turn of the century before motor busses reached the area several of the smaller stations were unable to run at a profit.

Apart from the regular passenger service a number of excursions used the line including  summer Saturdays only trains between the north-east coast and Blackpool and an unusual service which lasted until the lines closure was an unpublicised passenger train once every  two weeks, normally on a Friday. This was The National Union of Mineworkers train from Durham to Ulverstone carrying injured and sick miners to their convalescent home at Conishead Priory.  Its normal route was Durham, Bishop Auckland, Barnard Castle, Kirkby Stephen and Tebay.

When opened, the lines from Barnard Castle to Tebay and Kirkby Stephen to Penrith were both single, but sufficient land was purchased to enable a double line to be constructed if required and on the Lancashire Union all but three of the viaducts were built to take double track. With the growth of freight traffic much of this line was doubled in stages between 1867 - 1874 and on the Eden Valley the sections between Appleby Station and Appleby Junction, and Clifton Moor to Eden Valley Junction were doubled. The three viaducts were eventually rebuilt.

Locomotive sheds were opened at Kirkby Stephen and Tebay in 1861 (Tebay closed 1902), each holding two engines. That at Kirkby Stephen was enlarged 1865 and again in 1867 (Closed 1961). A further shed at Barnard Castle shed was authorised in 1864, and extended in 1875 (closed 1937).

By 1910 the service had improved with seven trains in each direction on weekdays between Darlington and Barnard Castle, three of these running through to Tebay and Penrith; forty years later, under BR, the service was virtually the same. For many years the 196 foot high Belah Viaduct had a stringent weight restriction imposed on  it, this led to most of the heavier trains being double headed by smaller locomotives and in BR days West Auckland shed  had Standard Class 3 2-6-0’s specially allocated for Stainmore freights and excursion passenger trains.

After WW2 a programme of passenger closures began. The first section of the line to go was between Kirkby Stephen East and Tebay which lost its passenger service from 1st December 1952.  From that date Smardale and Gaisgill stations were closed completely, but Ravenstonedale remained open for freight. On the Eden Valley line, Musgrave was closed completely on 3rd November 1952 and Kirkby Thore on 7th December 1953. Temple Sowerby was closed to passengers on the same day but remained open for freight while Cliburn was closed completely on 17th September 1956. Between Barnard Castle and Kirkby Stephen East, Barras was converted to an unstaffed halt (and closed to freight) from 1st December 1952, and Lartington similarly from 2nd February 1953.

Despite these closures the line was still a popular summer excursion route between the north east and Blackpool and there was still considerable east-west freight traffic although the industries served were now in decline. Through the 1950’s the coal and coke trains from the North East often had as many as 30 wagons hauled by three locos; a double-header and a banker.

Diesel multiple units were introduced between Darlington and Penrith on 3rd February 1958 and with the increased speed now possible over the Stainmore summit there were suggestions that the service should be improved with through trains running from the North East to Keswick but the following year rumours began to circulate about a withdrawal of the passenger service between Barnard Castle and Penrith after services were cut.

On the 9th of December 1959 passenger numbers were described as "disappointing" despite an increase in passenger revenue and total closure was announced of the line between Tees Valley junction (one mile west of Barnard Castle) and Merrygill (one mile east of Kirkby Stephen East) and from Appleby East to Clifton Moor. The remaining section of the line was to be retained for freight traffic From Merrygill to Appleby East and between Eden Valley Junction to Clifton Moor. The line east of Kirkby Stephen East and Tebay would also remain open as far as Hartley Quarry.

This proposal included the withdrawal of passenger services from the remaining stations at Lartington, Bowes, Barras, Kirkby Stephen East, Warcop, Appleby East, and Clifton Moor, and the closure of the goods depots at Bowes, Ravenstonedale and Temple Sowerby. Restricted goods facilities would still be provided at Kirkby Stephen East, Warcop, Appleby East and Clifton Moor would become an unstaffed goods depot. There was a spirited campaign and petition to keep the lines open but following prolonged deliberation approval for the closures was given by the Minister of Transport on 7th December 1961. The North Eastern and London Midland Regions of British Railways moved quickly, and only twelve days later they announced that the last trains would run on January 20, 1962.

Normally the last passenger train would have been the 8.30 p.m. diesel from Penrith to Darlington, but the Railway Correspondence & Travel Society had arranged for a special steam-hauled train, conveying enthusiasts and others on that day and this was actually the last train conveying passengers to run between Penrith, Kirkby Stephen and Barnard Castle. The train started at Darlington and ran through to Tebay with photo stops at Kirkby Stephen East and Ravenstonedale, it then returned to Kirkby Stephen East before continuing to Carlisle. It returned after the last passenger train from Penrith arriving back at Darlington around midnight.

The line between Tebay to Hartley Quarry remained open until the end of 1963 after which date the quarry could still be reached via the junction with the Settle – Carlisle line at Appleby , this line also continued to serve Brough Quarry the army ranges at Warcop. Track lifting across the Stainmore summit began almost immediately.

Although the line between Darlington and Barnard Castle remained open as part of the branch to Middleton in Teesdale it was only a temporary reprieve as this too was quickly proposed for closure under the Beeching cuts closing to passengers on 30th November 1964 and to goods on 5th April 1965; the track was lifted shortly after closure.

The line from Appelby to Hartley Quarry remained in use until October 1974 and it was then cut back to Warcop. The six miles of track between Abbleby and Warcop remained in use until 6th March 1989 and today the track still remains in place.

The Eden Valley Railway Society was formed in 1995 with the aim of reopening this remaining section of line and the first passenger trains started running north from Warcop in 2006. In 1996 Kirkby Stephen East Station was acquired by the Stainmore Railway Company which is working to develop the site as a Heritage Centre and working railway representing the early 1950’s.  The eventual aim of both societies is to reinstate a passenger service between Kirkby Stephen East and Appleby East.

Today much of the route over Stainmore is intact although the viaducts at Belah, Deepdale and Tees have been demolished. Near Kirkby Stephen the Merrygill and Podgill Viaducts were restored by the The Northern Viaduct Trust in the 1990's forming part of a circular walk which follows the trackbed between Kirkby Stephen East and Hartley Quarry.

Sources: Railway Magazine - April 1962 'Over Stainmore Summit' by K. Hoole. Railway Magazine - August 1989 'Stainmore the echoing silence' by Peter Hill. Cumbria Railways web site.



BRIEF HISTORY OF THE MIDDLETON-IN-TEESDALE BRANCH


There was a proposal to build a line from the Stockton & Darlington at Barnard Castle to Alston but this was never built in its entirety. Only the southern section of this line was built by the independent Tees Valley Railway who opened an 8 3/4 mile branch from Barnard Castle to Middleton on 13th May 1868 with intermediate stations at Mickleton and Cotherstone. A third station at Romaldkirk appears to have opened later, first appearing in the company timetable in July 1868. There were two major engineering features on the line, the Lunedale and Baldersdale viaduct (both still stand today). From the outset the line was worked by the North Eastern Railway. Much of the lines traffic was stone with interchange facilities at Middleton-in-Teesdale serving quarries immediately south of the station and at Park End two miles north west of the village. Both these quarries were served by tramways running from the station. In 1882 the local company was taken over by the North Eastern Railway and in June 1884 the terminus was renamed Middleton-in-Teesdale.

The line never carried heavy passenger traffic; in 1922 there were five trains a day in each direction on weekdays and one train on Sunday. By 1950 this had increased to six daily trains but no Sunday service. The engine shed at Middleton was closed in 1957 when the steam service was replaced by DMU's but they couldn't halt the decline in passenger numbers and many trains ran virtually empty. The line was earmarked for closure as part of the Beeching cuts with the last passenger train running on 30th November 1964. Freight traffic lasted for a few months being withdrawn from Romaldkirk and Middleton-in-Teesdale on 5th April 1965. Mickleton and Cotherstone had lost their freight service on 5th April 1954.

Tickets from Michael Stewart, Brian Halford, Mick Watson and Alan Brown.

Other web sites: Eden Valley Railway Trust, aerial pictures of the Eden Valley line on WWW.VisitCumbria.com & Stainmore Railway Company

Further reading: The Stainmore & Eden Valley Railways by Peter Walton - Oxford Publishing Co. 1992 - ISBN 0-86093-306-7 & The Eden Valley Railway by Robert Preston - Oakwood Press 1997 ISBN 978-0853614869

Click here for 1869 NER timetable. Click here to see 'Spotlight on Barnard Castle' British Railways Magazine (NE Region) back cover. Click here for a report on a visit by the Queen Mother to Barnard Castle on 1 November 1956. Click here to see a Bradshaw obtained from the booking office on the day of closure to passengers. All received from Mick Watson except 1869 timetable.

To See other stations on the Darlington - Tebay line click on the station name: Darlington North Road, Piercebridge, Gainford, Winston, Broomielaw, Barnard Castle (1st), Lartington, Hulands, Bowes, Barras, Kirkby Stephen East, Smardale, Ravenstonedale, Gaisgill & Tebay.
For the Eden Valley Line see Musgrave, Warcop, Appleby East, Kirkby Thore, Temple Sowerby, Cliburn & Clifton Moor. See also Clifton & Lowther.

To see stations on the Middleton-in-Teesdale branch click on the station name: Cotherstone, Romaldkirk, Mickleton & Middleton-in-Teesdale


Barnard Castle station in April 1935.

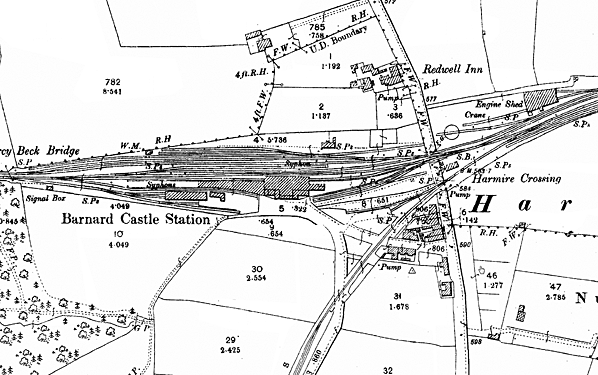

1897 1:2,500 OS map shows the olayout of the station sidings and engine shed.

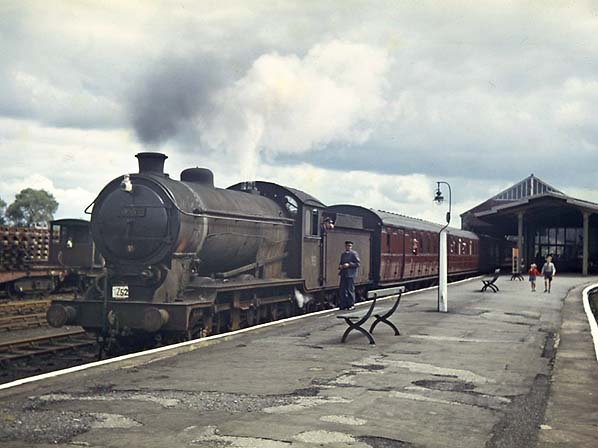

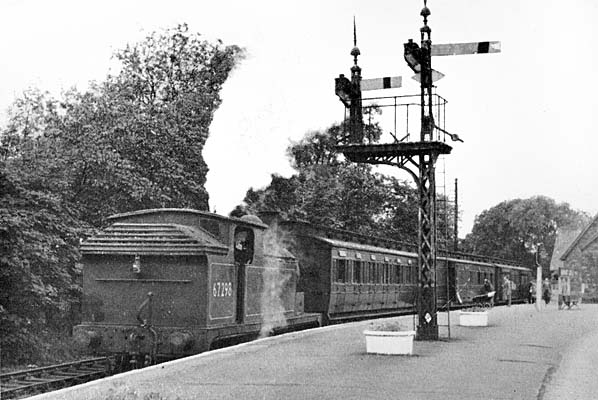

Bishop Auckland train in the bay platform at Barnard Castle station in c. 1948 - 55

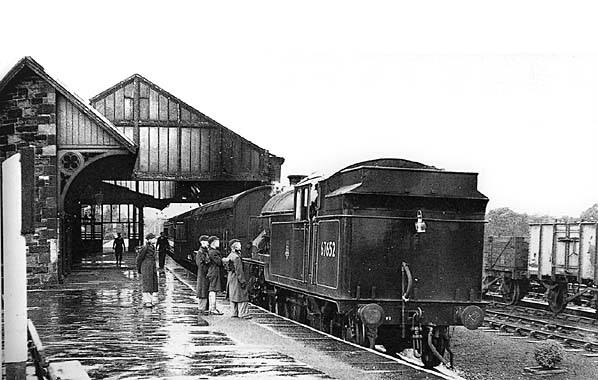

Barnard Castle station in May 1952
Photo by J W Armstrong

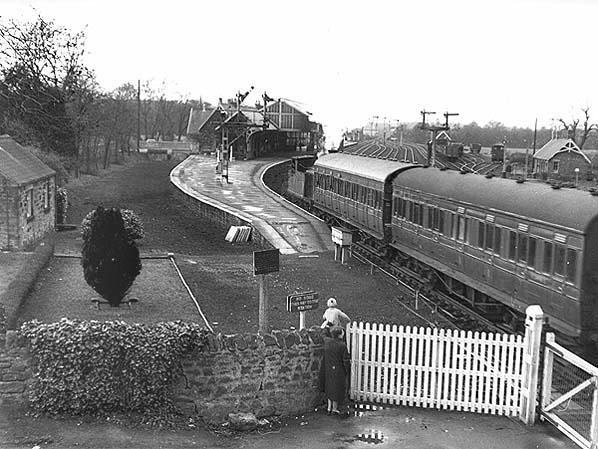

Barnard Castle station in c.1955 - 58, shortly before the introduction of DMU's The bay line had been lifted by this time.
Photo by J F Sedgwick

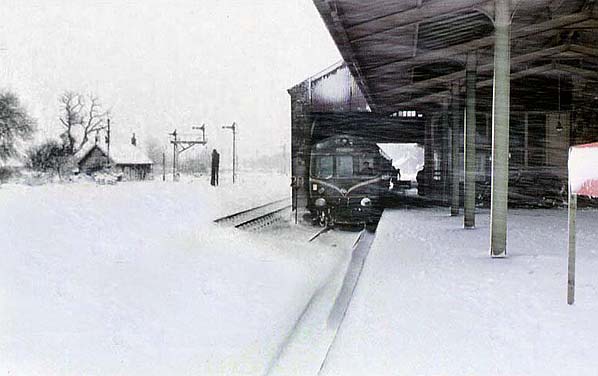

A blizzard at Barnard Castle (looking south) c.1960.
Photo from John Midcalf via Mark Keefe

The last passenger train to use the line between Bishop Auckland and Barnard Castle. It ran from Sunderland to Middleton-in-Teesdale on 6th August 1962, 7 weeks after closure of the
line from Bishop Auckland.
Photo by Brian Johnson

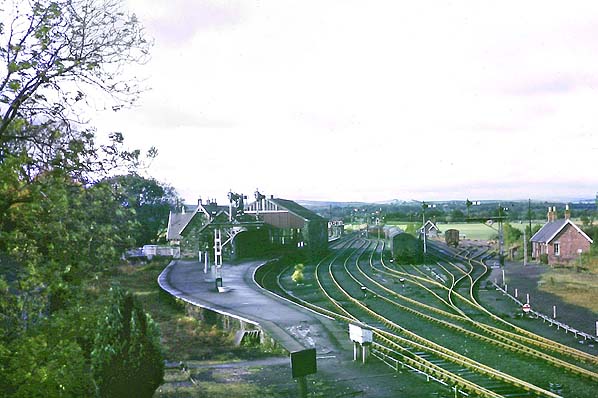

Barnard Castle station seen from the east signal box c early 1960s.
Photo by Arthur Watson

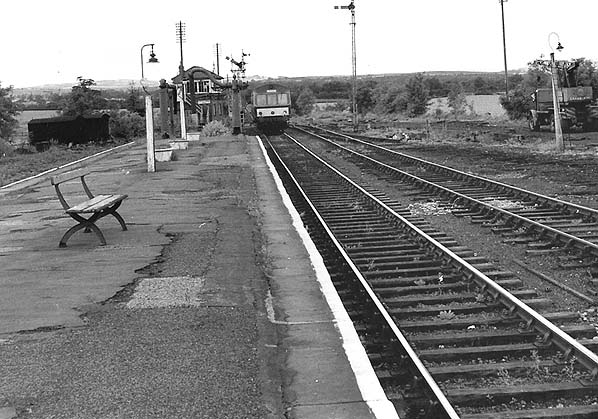

Train from Middleton-in-Teesdale approaching Barnard Castle station in August 1964.
Photo by Alan Brown

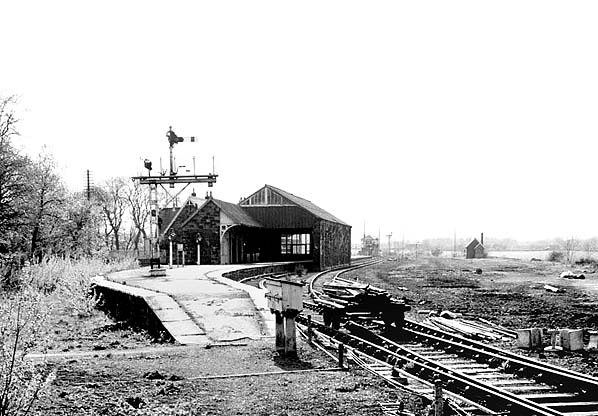

Barnard Castle Station in May 1965 during track lifting.
Photo by Ben Brooksbank

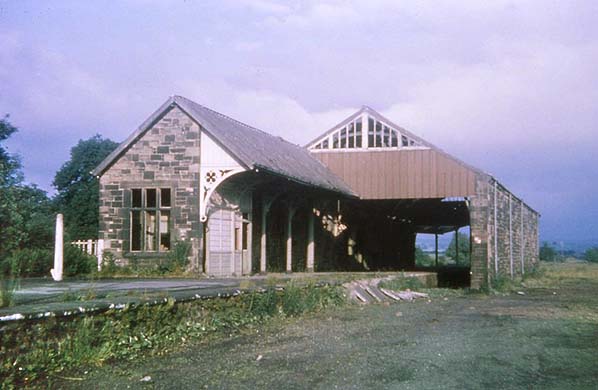

Barnard Castle Station in June 1968
Photo by Nick Catford


Barnard Castle Station in June 1971
Photo by John Birkbeck received from Mark Keefe

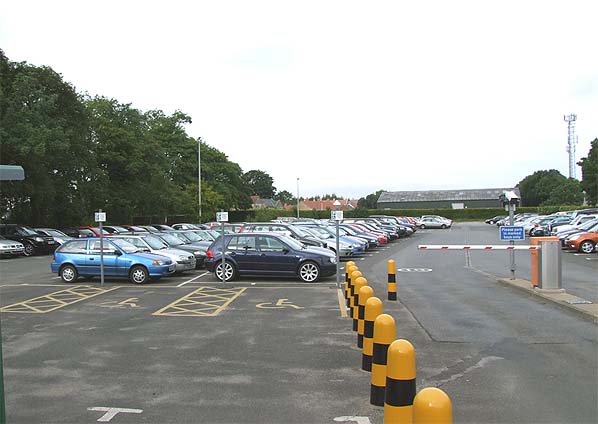

Looking west at the site of Barnard Castle Station in August 2007
P
hoto by Roy Lambeth
