Station Name: CANADA DOCK

[Source: Paul Wright]


Date opened: 1.7.1870
Location: Between Derby Road and Bankhall Lane
Company on opening: London & North Western Railway
Date closed to passengers: 5.5.1941
Date closed completely: 12.9.1982
Company on closing: London Midland & Scottish Railway
Present state: Demolished and site filled in.
County: Lancashire
OS Grid Ref: SJ342936
Date of visit: 1990, 29.9.2005 & 19.12.2010

Notes: Canada Dock station was the northern terminus of the London & North Western Railway (LNWR) Bootle branch which connected the north Liverpool docks with the Liverpool and Manchester railway. By the 1860s the dock system at Liverpool had begun to spread north and the new docks were able to take the largest ships of the day. The LNWR wanted direct access to the dock system and obtained an Act to build the Bootle Branch railway which opened to Canada Dock for goods services on 15 October 1866.

The passenger station at Canada Dock opened on 1 July 1870 as Bootle. The station building which housed the booking office was at street level on the east side of Derby Road opposite access gates on the west side that led to the goods station. Derby Road passed over the numerous lines at Canada Dock on a multi-arched bridge. The building was single-storey red brick structure at road overbridge level, supported on iron pillars. Groups of arched windows, in pairs or threes gave the building some distinction, particularly as the window arches were accentuated by yellow bricks which radiated from them. The slate roof was hipped. Within the building were a booking hall, booking office and waiting room. The line at this point was below street level, and from the rear of the station building a set of wooden steps led down to a single platform. The platform was constructed from brick and had one face on its north side. The rear of the platform had a brick wall. To both the north and south of the platform were numerous sidings that were part of the goods station. The platform stretched from Derby Road to Bankhall Lane which also passed over the line on a bridge.

To the east of the station the lines merged into the double-track railway of the Bootle branch and ran into Canada Dock tunnel.

Bootle station was served by trains to and from Liverpool Lime Street calling at all stations along the branch.

On 5 September 1881 a line opened from the Bootle branch to Alexandra Dock. It had its junction with the branch at Atlantic Dock Junction which was at the eastern end of the Canada Dock tunnel. With the opening of the new line Bootle station was renamed Canada Dock.

A signal box opened to the east of the passenger station in 1893. It was an LNWR type 4 box with a brick base and a timber upper cabin. It was fitted with a 30-lever frame. The box was named Bootle No. 1.

The December 1895 timetable showed Canada Dock as having 19 arrivals and 19 departures on Monday-to-Saturday. By July 1922 this had reduced to 6 arrivals and 7 departures on Monday-to-Friday as shown in the table below. On Saturdays there were only 5 arrivals and 6 departures.

Departures July 1922

To

Arrivals July 1922

From

7.25am

Liverpool Lime Street

7.09am

Liverpool Lime Street

8.00pm

Liverpool Lime Street

7.32am

Liverpool Lime Street

9.25am

Liverpool Lime Street

11.50am

Liverpool Lime Street

12.25pm

Liverpool Lime Street

12.44pm

Liverpool Lime Street

1.00pm

Liverpool Lime Street

2.09pm

Liverpool Lime Street

2.30pm SO

Liverpool Lime Street

5.39pm SX

Liverpool Lime Street

5.25pm SX

Liverpool Lime Street

6.00pm SX

Liverpool Lime Street

On 1 January 1923 Canada Dock station became part of the London Midland & Scottish Railway (LMS). By the summer of 1932 it had only five trains in each direction on weekdays. The first arrival was at 7.09am and it departed for a return journey to Lime Street at 7.25am. The last arrival was at 5.39pm and it departed for Lime Street at 6.00pm. By way of contrast Alexandra Dock station had twelve services in each direction.

In 1930 Bootle N0. 1 signal box was renamed Canada Dock No. 1. A year later, though, in 1931 it was reduced to a ground frame.

With the outbreak of the Second World War on 3 September 1939 Liverpool found itself in the firing line. The first bombs fell on 4 August 1940. Canada Dock goods station was hit on numerous occasions. On 4 May 1941 it suffered its worst damage when the goods station was completely destroyed by fire and the Leeds & Liverpool Canal which ran along the southern
boundary of Canada Dock goods station was hit. Water from the canal poured onto the site flooding the yard and causing extensive damage. No trains could run and the passenger service was suspended.  Although repairs were quickly carried out and goods trains were able to operate within a few days, the passenger service was not reintroduced. The last train departed from the goods station on 3 September 1982, the passenger station surviving intact throughout that period and even after closure. The ground frame was closed on 12 September 1982 marking the absolute end of rail traffic to Canada Dock.  The passenger station was demolished in the 1992, and its site was filled in destroying all trace.

Tickets from Michael Stewart

Sources:

To see the other stations on the Canada Dock branch click on the station name: Spellow, Walton & Anfield, Breck Road, Tue Brook, Stanley & Edge Lane

See also Alexandra Dock branch stations:
Bootle Balliol Road and Alexandra Dock (LNWR)

See also:
Canada Dock Goods and Atlantic Dock Junction


Looking east along the single platform at Canada Dock Station in the 1930s. The station was surrounded by goods facilities which were always busier than the passenger station.
Copyright photo from Stations UK

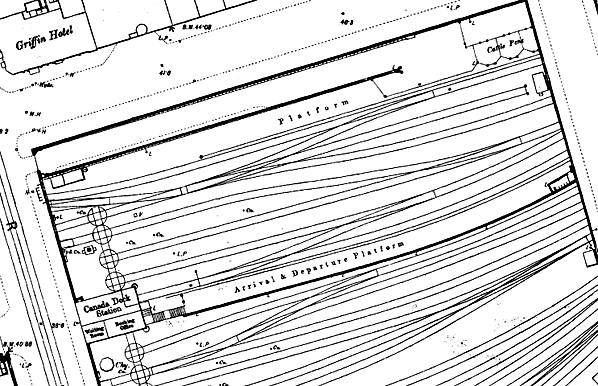

Canada Dock passenger station shown on an 1891 map.


The 1906 map above illustrates clearly how Canada Dock passenger station was dwarfed by the goods station in which it was situated.

Looking west along the platform at Canada Dock station in February 1969. The stree- level booking office is seen at the far end of the platform. Although the station had been closed for 28 years it was just as it had been when it had opened in 1870.
P
hoto by Norman Daley

Canada Dock station looking north from an elevated position in 1977. The passenger station booking office can be seen to the right on Derby Road. The Canada Dock goods station dominates the view.
P
hoto by Derek Knowler

Looking east along the platform at Canada Dock station in 1983. The view is similar to the 1930s photo at the top of the page.
Photo by Mike Turner

Canada Dock station looking north from the southern side of the goods yard in February 1986.
Photo by Martin Brown

Looking west from the eastern end of Canada Dock station’s single platform in August 1990.
P
hoto by Paul Wright


Canada Dock station in August 1990 seen from the goods platform that was located on the northern edge of the goods yard. The goods station was located on the far side of the bridge
which carried Derby Road over the line.
P
hoto by Paul Wright

The site of the Canada Dock station in September 2005. Note the different brickwork in the wall which marks where the booking office was. This view is from a similar position as in the 1990 picture above, but the levels are completely different as the site has been filled in.
Photo by Paul Wright


Looking west at the site of Canada Dock station on 19 December 2010. The roof of the Canada Dock goods station can be seen beyond the walls seen in the middle distance.
Photo by Paul Wright
