Station Name: NEWBURN

[Source: Alan Young]

Date opened: 12.7.1875
Location: At the junction of Station Road and Newburn Bridge Road
Company on opening:

Scotswood, Newburn & Wylam Railway & Dock Company (worked from the outset by the North Eastern Railway)

Date closed to passengers: 15.9.1958
Date closed completely: 26.4.1965
Company on closing:

British Rail (North Eastern Region)

Present state: Demolished
County: Northumberland
OS Grid Ref: NZ165653
Date of visit: 3rd June 2009

Notes: The station was west of the Newburn Bridge Road level crossing. The platform buildings were as unpretentious as those of the other North Wylam loop stations.  The up platform had a range of wooden buildings, with only one on the down platform, reflecting the need to provide facilities for Newcastle-bound passengers rather than for the few to Heddon-on-the-Wall or North Wylam.  A non-standard iron footbridge on brick piers bisected the platforms, and, with the tall NER signal box at the crossing, was the station’s dominant feature.  Nearby sidings served the Throckley Coal Company’s Maria Pit; Spencer’s iron and steel mill and rolling works; North Walbottle Colliery; Newburn Hill sand and gravel site; and Newburn Waterworks.

Newburn suffered more than Lemington from tram and bus competition.  Bookings tumbled from 106,798 in 1911 to 9,537 in 1951. The platforms, by then devoid of buildings, were demolished in the mid-1960s.


The Newcastle-Carlisle route, which opened in 1839, left inhabitants of Newburn and Lemington, north of the river, dependent upon Scotswood station. Although collieries in that area had waggonway access to the Tyne, a rail link was desirable for this traffic.  On 16 June 1871 the Scotswood, Newburn & Wylam Railway & Dock Company Bill was successfully
presented to Parliament, and the line opened from Scotswood to Newburn, with an intermediate station at Lemington, on 12 July 1875.  The remainder opened as far as North Wylam station on 13 May 1876 then onward across Wylam Bridge to meet the route via Blaydon at West Wylam Junction in October 1876. Part of the 6½ mile route followed the course of the Wylam Waggonway. This section passed the cottage where George Stephenson was born; the proximity of this waggonway to his childhood home undoubtedly inspired his pioneering interest in railways.

Each end of the new line offered engineering challenges. At Scotswood, a ridge was to be crossed in a cutting, but owing to geological difficulties, a short tunnel was excavated instead. At the west end, the River Tyne was crossed by the graceful Wylam Bridge. Closely resembling Newcastle’s Tyne Bridge, built 52 years later, Wylam Bridge was of wrought iron and had an 80yd arch from which the bridge floor was suspended on vertical ties. The dock in the company’s title was never built because the River Tyne was too shallow and was not dredged as far upstream as Scotswood. Despite being a loop line, passenger trains from Newcastle generally terminated at North Wylam, a practice that continued until the 1950s. In 1889 a complaint by a passenger, whose journey from Heddon involved a transfer with luggage between Wylam’s stations (about a quarter of a mile) to reach Prudhoe or stations west, failed to impress NER officials.

The working timetable of winter 1898-9 shows six passenger trains each way between Newcastle and North Wylam (terminus) at irregular intervals, with an extra market train on Tuesdays and Saturdays leaving Newcastle at 7:55 pm and North Wylam at 8:39 to return to Newcastle, and a Thursday-only 10:35 pm departure from Newcastle to North Wylam. A workmen’s train (Saturdays only) left Newburn at 12:25 pm for Newcastle. The two further passenger workings were Saturday relief trains from North Wylam (dep 1:25 pm) to Newcastle and a 7:40 pm (alternate Saturdays) in the opposite direction. Goods train workings were also apparently confined to the section east of North Wylam, although an express meat train leaving Carlisle London Rd at 4:55 pm was routed along the loop. Otherwise the Wylam Bridge presumably carried only mineral trains.

In 1920 ten trains operated each way on weekdays between Newcastle and North Wylam. By winter 1937-8 the service had strengthened to approximately half-hourly trains on weekdays and hourly on Sundays: some weekday, and all Sunday trains, did not call at Heddon-on-the-Wall. Eventually, in 1955, British Railways promoted the loop to ‘through status’, with several passenger workings daily over Wylam Bridge. For many years, some trains (passenger and freight) actually used this route because it quadrupled the congested Prudhoe-Scotswood section. The 1955-68 passenger trains on the route were at irregular intervals. Sunday trains used the North Wylam loop in its final months, rather than calling at Blaydon and Wylam.

In 1958 British Railways took the apparently illogical step of closing Lemington, Newburn, and Heddon-on-the-Wall stations (which had no alternative station to use) yet retaining North Wylam, under five minutes’ walk from Wylam on the main Newcastle – Carlisle line. However 1951 traffic statistics show that North Wylam was the busiest of the four stations on the loop:37,197 tickets were issued there, but less than 25,000 for the other three stations combined.  At that time, moreover, North Wylam was effectively a terminus with negligible traffic to or from the west.  Its bookings exceeded those at Wylam (30,261).  Beeching (1963) recommended closure of thirteen Newcastle-Carlisle passenger stations including Scotswood and North Wylam, but (according to Map 9 in the report) ‘stopping’ passenger services would continue to use the North Wylam loop – with no station remaining to stop at! - whilst ‘stopping’services would cease to use the route via Blaydon, and Wylam and Blaydon stations would close.

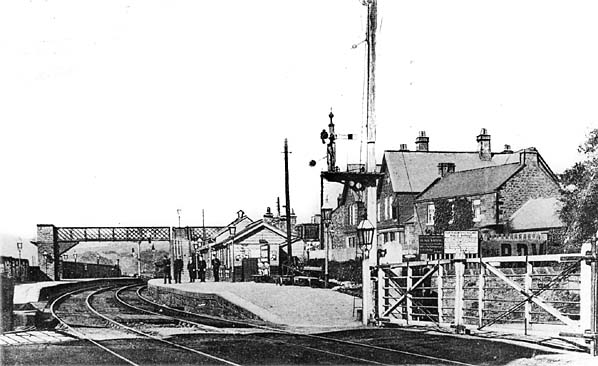

Newburn Station in the early 20th century
The Transport Users’ Consultative Committee Report published on 18 February 1966 addressed BR’s proposal to close Elswick, Scotswood, Blaydon, Wylam, Fourstones, Bardon Mill, Greenhead, Gilsland, Heads Nook, and Wetheral.   B.R claimed that these closures would allow accelerated DMU services –making them more attractive to the majority of users- and increase the DMU fleet’s
productivity by integrating these ‘express’ services with Newcastle-Hexham local workings. North Wylam station was to remain open, and the Blaydon route would close. B.R. explained this decision, noting the expense of maintaining Scotswood Bridge;‘certain advantages’ of the North Wylam route for freight working; declining business at Blaydon; and the ease of transferring Wylam’s business 300yd to North Wylam. B.R. considered the retained stations ‘fairly well placed strategically to attract people to use their cars to the stations and go forward on fast trains to their destinations’.

Trains between Scotswood and Prudhoe via Wylam were suspended from 3 September 1966 for engineering work. They never again stopped at Scotswood’s south platforms. The North Wylam loop platforms remained as the notional railhead for the temporarily-closed Blaydon station, beyond the expected closure date in early January. Scotswood eventually closed in May 1967, when services via Blaydon were restored.

Because BR’s proposal in 1966 to close Wylam but retain North Wylam was rejected, proceedings began in 1967 to close the North Wylam loop.  North Wylam station was profitable, with annual passenger receipts of £4,650 against operating costs of £2,100, but abandonment from North Stella (Newburn) to West Wylam Junction, including the bridge over the River Tyne, would save an estimated £8,500 in maintenance and renewal.  Whereas BR emphasised the operating advantages of the North Wylam loop a year earlier, now, remarkably, its disadvantages emerged: North Wylam had speed restrictions owing to ‘sharp curves, gradients, and poor foundations’ (maximum gradient was a very short stretch at 1 in 85) and would be expensive to upgrade to trunk route standards!

Valiant protesters, including Northumberland County Council, opposed the closure. Grounds for objection included the proximity of North Wylam station to a planned housing estate; the unpleasant walk over the bridge to Wylam station in inclement weather; and the inconvenient layout and poor condition of that station.  However, closure was inevitable.  The TUCC report
of 12 September 1967 concluded that Wylam (population 1,495) did not warrant two stations, and that passengers used either station ‘according to which particular train suited their immediate requirements’.

On 11 March 1968 passenger traffic ceased on the loop and North Wylam closed.  I travelled on two of the trains on Saturday 9 March (the penultimate day of service). There was a sense of ‘business as normal’ – no signs of impending doom, or special events as were seen on some other lines immediately prior to closure. Rails through North Wylam were retained until April 1972, when the line was cut back to Newburn.  The Scotswood-Newburn section was taken out of use in December 1986. Most of the loop is now a cycle route and footpath (Tyne Riverside Country Park) with Stephenson’s Cottage as an enduring feature of interest.

Tickets from Michael Stewart


  • Railways in Northumberland by Alan Young (Pub: Martin Bairstow 2003) from which this article is adapted.
  • The Railways of Northumberland and Newcastle upon Tyne by J. A Wells (Pub: Powdene Publicity 1998)
  • Memories of the LNER: Rural Northumberland by Allan W. Stobbs (Pub: Author 2nd Edition 1992)
  • The Newcastle & Carlisle Railway by G Whittle (Pub: David & Charles 1979)
    Railway Passenger Stations by M E Quick     (Pub: RCHS 2000)
  • Clinker’s Register of Closed Passenger Stations and Goods Depots by C R Clinker (Pub: Avon Anglia 1978)

To see other stations on the North Wylam loop line click on the station name: Prudhoe, North Wylam, Heddon-on-the-Wall, Lemington & Scotswood

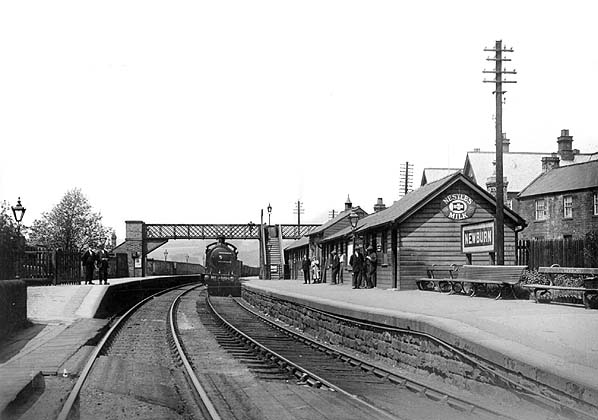

Newburn Station looking north west in c.1910
Copyright photo from John Alsop collection

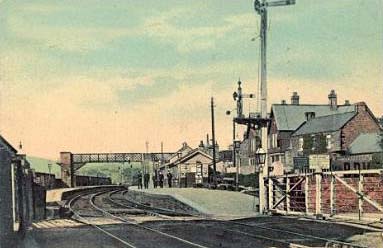

Newburn Station looking north west in c.1910 (enlargement of colour picture above)

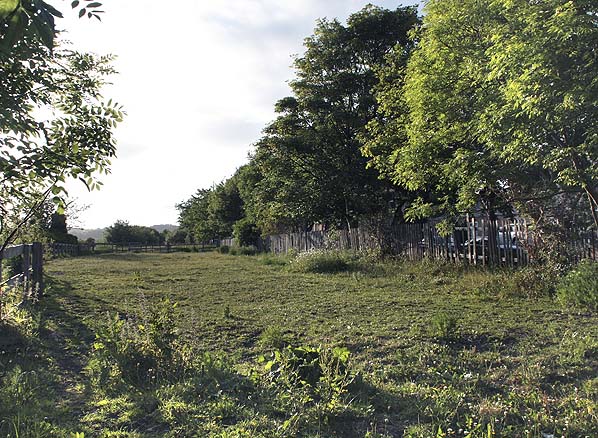

Looking north west at the site of Newburn Station in June 2009
hoto by Ali Ford

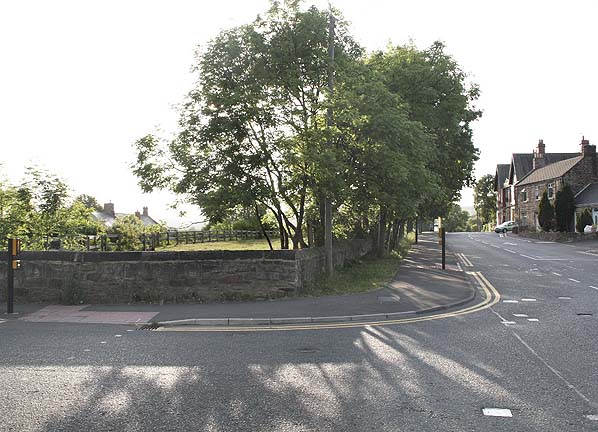

Looking north west from Newburn level crossing in June 2009. The Newburn Hotel seen in both the 1910 pictures can also be seen in this view.
hoto by Ali Ford
