Station Name: REDBOURN

[Source: Nick Catford]

Date opened: 16.6.1877
Location: At the end of an approach road running east from High Street
Company on opening: Hemel Hempstead Railway
Date closed to passengers: 16.6.1947
Date closed completely: 6.7.1964
Company on closing: London Midland & Scottish Railway
Present state: Demolished, a footpath and cycleway runs through the station site but nothing survives of the station apart from the approach road which also serves a works depot. The wrought iron bridge carrying the line across the old A5 at Redbourn remains intact. This bridge is of a type identical to those originally crossing the Bulbourne and the canal at Boxmoor.
County: Hertfordshire
OS Grid Ref: TL111121
Date of visit: September 1968, June 1975, May 1975, May 1982, July 1982 & 17.5.2006

Notes: The station at Hemel Hempstead was always spelt Hemel Hempsted both by the Midland Railway and later by the LMS. This spelling always appeared on tickets, timetables and signs on the station. In this report when specifically referring to the station 'Hempsted' will be used but when referring to the town the correct spelling of 'Hempstead' will be used.

Redbourn station had a single platform with a brick and weatherboarded building with a tiled roof and canopy sited on the south side of the line. The station building incorporated a booking office and waiting room. There was no passing loop and never a second platform. The goods yard was opposite the station on the north side side of the line and included three sidings, a long one running parallel to the line and running back to the A5. Two other sidings served the timber goods shed, one passing through it. The station handled coal but there were no facilities for livestock. The station had a 1 ton crane. In 1913 the platform was raised to 2' 6" above rail level.

After closure to passenger traffic in 1947 the station continued to handle goods traffic until 6th July 1964. The station buildings were demolished in the mid 1960's but the platform remained during the period the line was used to serve the Hemelite works. The track through Redbourn was lifted in 1982 and the platform was demolished in the mid 1980's during the construction of the Redbourn bypass which encroached onto railway land.

The London & Birmingham Railway opened in 1837 and although it passed near Hemel Hempstead, due to vigorous lobbying by local landowners, it was routed on the other side of the River Gade some distance from the town. A station was built on this line at Boxmoor (renamed Boxmoor & Hemel Hempstead in 1912) but no connection was provided into the town by rail.

The first proposal for a more convenient rail link for the people of Hemel Hempstead was presented in 1862 by John Grover. His proposal was for a short spur from the main line to the lower end of the (old) town at Bury Mill End. At the same meeting, another more ambitious proposal was put forward, extending the line through Redbourn to link to the Great Northern Railway at Harpenden. However, Grover's design found a sponsor and following an Act of Parliament in 1863 the Hemel Hempstead and London & North Western Railway Company was formed to construct and operate the line.

However, no construction work was undertaken due to difficulties with local landowners and problems agreeing the connection to the main line at Boxmoor and after a number of years of stagnation the earlier proposals were re-examined. Parliamentary approval was obtained in 1866 and construction work began. Construction pr0ceded extremely slowly, the lower spur from Boxmoor to Hemel Hempstead only being completed by 1871, though the connection to Boxmoor was via an awkward turntable.

Eventually, the HH and L&NWR Company ran into financial difficulties and it was the Midland Railway that came to the rescue, financing completion of the line and agreeing to operate it once it was built. The line was finally opened on 16th July 1877 with four passenger trains each day running between Hemel Hempsted and Luton stopping at Redbourn and Chiltern Green (on the GNR main line) with a journey time of 40 minutes; there was also an evening goods train. It provided a link for the straw plait trade that existed in Hemel Hempstead with the hat making centre of Luton and this is reflected in the fact that the initial connection at Harpenden headed north towards Luton rather than south towards London. Passengers travelling to St. Albans and London changed trains at Chiltern Green.

The terminus for the new line was on the south side of Hemel Hempstead on a viaduct extending across low lying ‘Marlowes’. Passengers on the new train service were able to reach St Pancras faster than those who took a pony and trap to Boxmoor station and then travelled to Euston. Hemel Hempsted station itself was a mile north of the terminus and was usually referred to as the 'Midland Station'. It stood on the site of a modern housing development, opposite the Midland Hotel. The company built a single road timber engine shed in the north west corner of the goods yard, this opened with the line in 1877 but was an early casualty closing in c.1910. After closure the line's locomotives were shedded at St. Albans until that closed in the 1950's then engines were stabled at Cricklewood.

The Hemel Hempstead Railway was absorbed by the Midland Railway in 1886. The straw plait trade declined, and in order to help the line pay its way the junction at Harpenden was realigned so that it headed south instead of north and trains now ran into a new bay platform at Harpenden. The new platform opened in July 1888 with seven trains a day, most with a direct connection to St. Pancras and one through train to St. Albans. The 9am train from St. Pancras 'slipped' a coach at Harpenden to run onto the branch.

Although the link with the L&NWR was completed it was not in the Midland's interest to open the connection to regular traffic as it would have provided a shorter route into London for both passenger and freight traffic. However from 1886, regular coal traffic used the connection to reach a gas works at Duckhall. This was always the principle freight traffic on the line although some local companies used the line to carry their goods to market , in particular the well-established paper firm of John Dickinson. There were also some wagons of mixed freight carried each day including watercress.

The rivalry between the Midland and L&NWR grew intense and on one occasion track was lifted at Boxmoor by angry L&NWR workers to prevent a goods train that had travelled along the Midland Railway from completing the journey to Boxmoor.

Due to this rivalry no passenger trains ever operated between Midland Station and Boxmoor and eventually the connection was permanently severed in c.1916. In 1905, a passenger terminus was opened at Heath Park Halt in an attempt to compete with the L&NWR, which had started a bus service to transport passengers from Hemel Hempstead to the main line station at Boxmoor giving passengers a journey time to London of 1 hour 35 minutes compared to 1 hour 56 minutes via the Midland route. Other halts were also opened in 1905 at Godwin's on the northern outskirts of Hemel Hempstead and Beaumont's on the west side of Redbourn. These halts were opened to coincide with the introduction of a railmotor service with an increase to nine daily trains, four of them starting at Heath Park.

The railmotor service continued into the 1920s but with a reduced frequency after WW1. With the Midland and L&NWR absorbed into the LMS through workings between the lines might have been expected but this never happened. Roundwood Halt was opened to the west of Harpenden in 1927 to serve a new housing development.

In 1929 the LMS introduced an experimental bus service running alongside the line and stopping at all stations including Boxmoor & Hemel Hempstead. The new service was a great success, carrying more passengers in its first week than the train did in a month. Following the success of this experiment, the LMS trialed a hybrid road-rail vehicle called 'Ro-Railer' in 1931 in an attempt to compete with road transport. Looking like a bus, the vehicle could be used both on the road and on rails. The experiment was short-lived and did not catch on and was withdrawn in 1933.

The regular passenger service on the line had been reduced from seven to four daily trains in 1929 and it remained at this level until the outbreak of WW2. During the war, additional traffic used the line including evacuees from London and military transports carrying tanks and other equipment were regularly seen. In December 1943 the Middlesex Regiment was billeted in Hemel Hempstead bringing additional passenger traffic to the line.

Passenger demand was never high and had declined during the inter-war years. The rivalry between the Midland and L&NWR companies ensured that the line ultimately failed to serve the people of Hemel Hempstead in the most useful way possible. After WW2 it was clear that the passenger service couldn't survive and the last passenger train ran a few months before nationalisation on 16th June 1947, when there was a 'temporary' suspension of services due to the national coal shortage. When coal was once again available the service was never reinstated. The last passenger trains, after closure, were three enthusiasts’ specials. The Railway Correspondence & Travel Society (RCTS) organised two trips to Heath Park Halt on 11th May 1957 and 10th August 1958 and the South Beds Loco Club organised an excursion between Harpenden and Hemel Hempsted on 24th September 1960.

The line remained open for goods traffic with two daily trains and in 1948 a permanent connection was finally laid at Boxmoor to bring coal to the gas works but it was rarely used until August 1959 when work started to remove the embankment between Hemel Hempstead and Boxmoor during redevelopment of the town centre as part of the town's expansion programme. A large crowd assembled at midnight on 6th July 1960 to see the viaduct being blown up.  The link line was now the only way of bringing in coal into the gasworks at Duckhall but the gasworks closed in 1960. Hemel Hempsted remained open as Midland Road for freight traffic until 1st July 1963 although by that date there had been no traffic for some time.  Redbourn remained open for a further year closing on 6th July 1964.

At least part of the line still had a future however. In the late 1940's a company had been established to make clinker blocks at the former Claydale Brickworks between Godwin's and Beaumont's. Initially the old brickworks sidings weren't used but in 1958 a huge investment programme brought new modern plant producing blocks under the trade name Hemelite. New reception sidings were laid and from late 1959 six wagons of aggregate arrived each day. In the early 1960's the line came under the threat of the Beeching Axe and it was eventually sold to the Hemelite company after parliamentary approval was received; the company taking control on 30th April 1968. It was the first BR line to be taken over by a private company.

The reprieve was to be short lived however and the end came on 24th July 1979 when BR removed the junction as part of upgrading the Bedford line though Harpenden. BR wanted to charge Hemelite a large sum of money to replace the access points just north of Harpenden Station. The cost was too much for the company to afford as they were struggling through a recession so they lost access to their line with deliveries continuing by road. The remaining track was lifted in 1982.

In the early 1980’s the railway land between Midland Road in Hemel Hempstead and Harpenden was purchased by St Albans District Council and Dacorum Borough Council. The line was opened to the public in 1985 for use as a footpath and cycleway.  Since then, many improvements have been undertaken along the line including surfacing and the construction of steps and access points. The line is part of the National Cycle Network (the Oxford to Welwyn Garden City route) and this section is approximately nine miles long.
Throughout its life the line was known as the ‘Nickey (or Nicky) Line'. The origin of this name is shrouded in obscurity. Suggestions range from being named for the parish of St. Nicholas in Harpenden, through which it runs, to Hemel's connection with Nicholas Breakspear. The locomotives themselves were referred to as 'Puffing Annies' by locals, as the climb from the town centre up through Highfield was steep and the engines created much steam and smoke ascending this grade.

Click here to see an aerial view of the whole Harpenden - Hemel Hempstead line line on Google Earth. All the stations are shown. Prepared by Mark Percival.

Source: Wikipedia and The Nickey Line by James and Hedley Cannon. Published 1977 by Barracuda Books ISBN 0 86023 050 3. Tickets from Michael Stewart, route map by Alan Young

Further reading: The Harpenden & Hemel Hempstead Railway by Sue and Geoff Woodward. Published 1996 & 2002 (with revisions) by Oakwood Press. ISBN: 978-0-853615-02-6
Branch Line to Hemel Hempstead by Sue and Geoff Woodward. Published 2006 by Middleton Press ISBN: 978 1 904474 88 3

Other web sites: Friends of the Nickey Line footpath and cycleway. Includes history of the line and maps of the current footpath. The Nickey Line - The Harpenden to Hemel Hempstead Railway. Web site with history of the line and pictures. Plus details of how to obtain the Nickey Line DVD. Nickey Line - a video tour of the Nickey line today lasting over 1 hour. Lost lines - Photographic tour of the Nickey line in 1990.

To see other stations on the Harpenden to Hemel Hempstead Railway click on the station name: Heath Park Halt, Hemel Hempsted, Godwin's Halt, Beaumont's Halt, Roundwood Halt and Harpenden.

Redbourn Station Gallery 1: c1905 - 11 May 1957

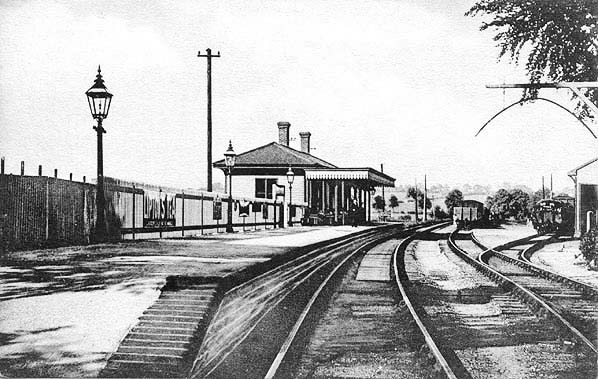

An Edwardian postcard view of Redbourn station looking south west. The goods yard had three sidings which are all in view here. The station didn't have a passing loop.
Copyright photo from John Alsop collection

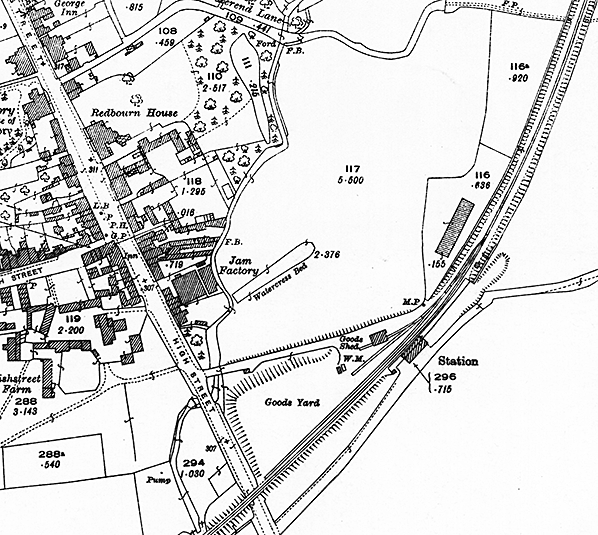

1924 1:2,500 OS map. The approach road to the station is on the south side of the bridge over High Street and access to the goods yard is from the north side of the bridge. The yard comprises three sidings and a goods shed with a weighbridge (WM) just inside the entrance to the yard.

Redbourn sometime around the turn of the 20th century. The van on the right is unfortunately only partially visible, otherwise it may yield a clue regarding earliest possible date. It is either a 8 ton or 10 ton van introduced by the Midland Railway in 1893 and 1902 respectively so we can at least say the date is no earlier than 1893. The outside frame design of the van is typical of British goods vans of the late Victorian period and most were long-lived, surviving into British Railways days. A passenger train stands at the platform and the scene is obviously posed. Only railway staff are visible; a scenario typical of branch lines in the days when the taking of a photograph was a relatively long-drawn-out process. The locomotive is of course from the Johnson era but unfortunately image quality rules out a positive identification. At first glance it might appear to be an 0-4-4T but the small splasher, just about visible to the fireman's right, and the barely visible coupling rods might suggest otherwise. The Midland Railway initials are just discernible on the buffer beam and also on the side of the water tank. On the right can be seen the wooden stanchions supporting the platform canopy, adding to the scene being generally reminiscent of a Colonel Stephens railway.
Photo Received from Roy Wills

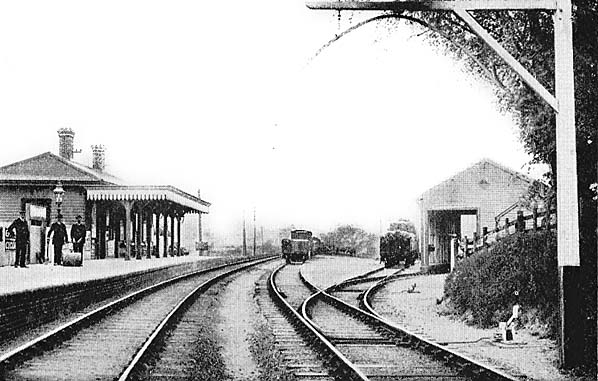

Redbourn station looking south-west in the early 20th century

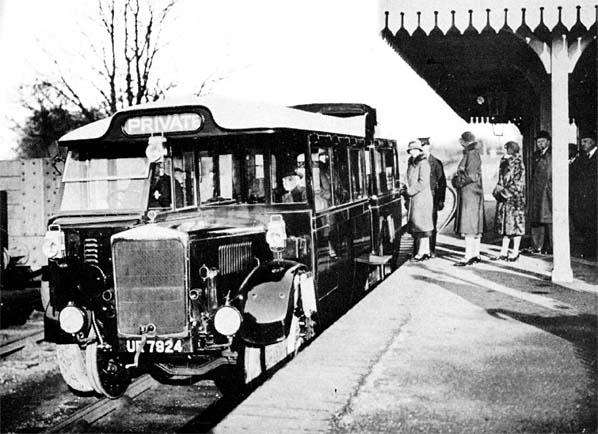

The Karrier Ro-Railer, the name being a stylisation of 'Road-Rail Vehicle', UR 7924 seen here at Redbourn sometime in 1931 during trials prior to entering service between Blisworth and Stratford-upon-Avon. As far as is known UR 7924 operated no advertised services on the branch from Harpenden and merely ran in paths between timetabled passenger and goods trains. Click here for further information about the Karrier Ro-Railer.

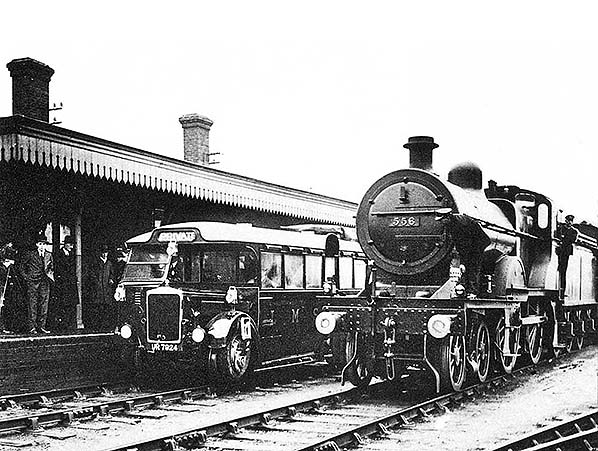

The Karrier Ro-Railer at Redbourn on trial. Next to it stands ex MR LMS Class 2P 4-4-0 No.556. The steam locomotive, which is coupled to a train of some description, was probably deliberately positioned for the photograph. Click here for further information about the Karrier Ro-Railer.

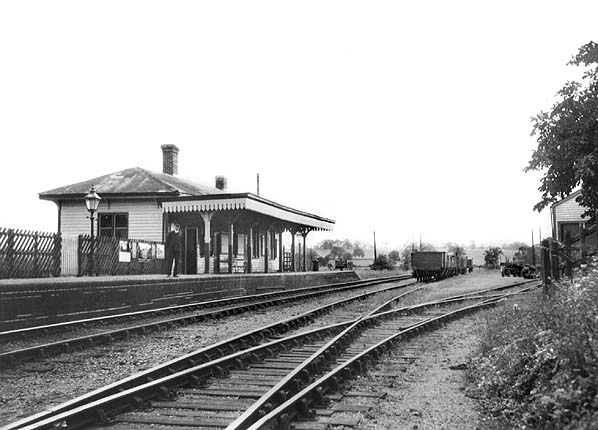

Redbourn Station looking south-west in 1938, little has changed since the station opened.
Copyright photo from John Alsop collection

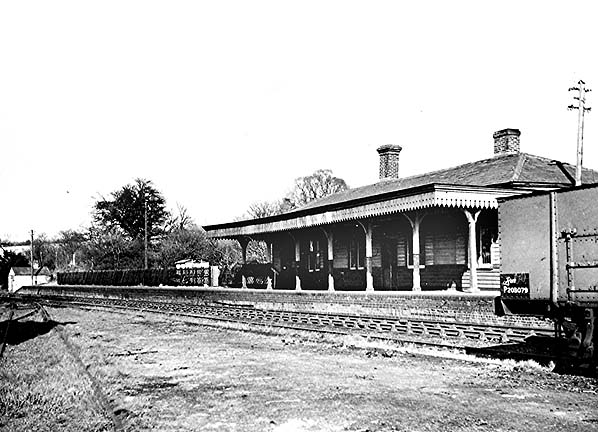

Redbourn station seen from the goods yard in 1946
Photo by Geoff Webb

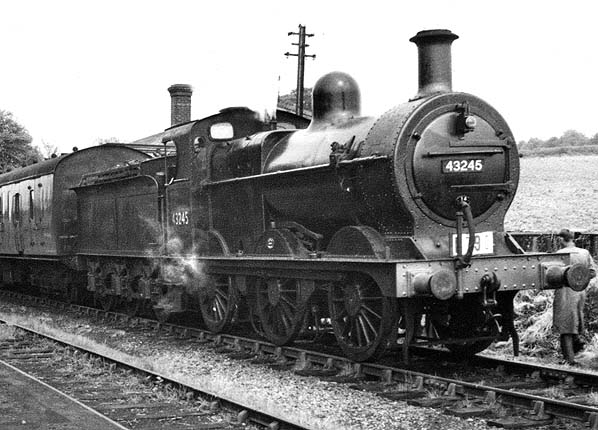

The Locomotive Club of Great Britain railtour over the Harpenden - Hemel Hempstead banch at Redbourn station on 11th May 1957. The tour was a return journey from Harpenden Central to Hemel Hempsted. The train ran light from St. Albans.
Photo by Nigel Lester

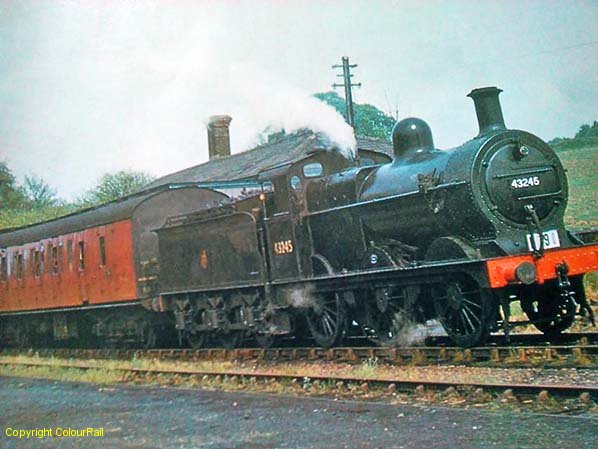

Another view of 43245 at Redbourn station on 11May 1957. The stock comprised three BR Mark 1 Metro Gauge Suburbans, part of a Moorgate set.
Photo copyright Colour Rail
