Station Name: WEST GOSFORTH

[Source: Alan Young]


Date opened: 1.6.1905
Location: Same site as Regent Centre Metro station (on west side of B1318)
Company on opening: North Eastern Railway
Date closed to passengers: 17.6.1929
Date closed completely: 14.8.1967
Company on closing: London & North Eastern Railway
Present state:

Demolished and replaced with Regent Centre Metro station (opened 10.5.1981) which occupies the centre and west end of West Gosforth Station site.

County: Northumberland
OS Grid Ref: NZ243687
Date of visit: July 1960, June 1968, July 1973, August 1981 & 5.4.2009

Notes: The two-platform station was immediately west of the Great North Road, 60¾ chains from the junction at South Gosforth. On the down platform was a collection of timber buildings, including the standard design of main structure found at intermediate stations on this branch. It had a single storey with pitched roof containing a booking hall, general waiting room, and ladies’ room. In front was an enclosed, glazed verandah, with a small cross-gable above the door. A signalbox was also sited in the centre of the down platform and there was also access to a small goods from the back of the platform; the shed was clad in corrugated metal sheeting. The station was electrically lit, but the lamp-posts also carried oil casement lamps. The nameboards were standard NER enamel type, with white letters on a reddish-brown background and white surround.

After closing to passengers in 1929 the station remained open for goods traffic until 14 August 1967 although it was downgraded to a public delivery siding on 23 August 1954.

BRIEF HISTORY OF THE PONTELAND AND DARRAS HALL BRANCH
(AND THE WALLRIDGE MINERAL RAILWAY)

The area of Northumberland lying immediately northwest of Newcastle was served by several colliery waggonways before 1900, but no passenger railways entered it. Under the terms of the Light Railways Act (1896) the North Eastern Railway promoted the Ponteland Light Railway branching from the Newcastle – Whitley Bay route at South Gosforth (then known as Gosforth).
Construction began in 1900. The 6¾ mile route was through gently undulating countryside beyond the built-up area of Newcastle, so earthworks were relatively light.

There were several level crossings over public roads, but major roads and mineral lines were crossed by bridges. Goods services began on 1 March 1905, and passenger services on 1 June. It was intended to electrify the route as an extension to the ‘Coast Circle’; however only the extreme east end of the line was electrified to provide access to the new Gosforth
Car Sheds from 1923. (Further electrification was delayed for over fifty years!) Operation of branch services was generally by Fletcher ‘BTP’ locomotives fitted with auto apparatus (based at Heaton Shed). Advertised as ‘steam auto-cars’ these push-and-pulls provided nine to ten services between South Gosforth and Ponteland on weekdays (four on Sundays) taking 20 minutes to complete the journey. By June 1920 the Sunday trains had been withdrawn.

In November 1908 the NER deposited plans with Parliament for a 1¼ mile extension to Darras Hall under the name of the Little Callerton Railway. Unlike the parent branch to Ponteland the route was not a Light Railway. The extension was to serve a residential area where development was just beginning. In 1907 Darras Hall Estate began when a group of Newcastle businessmen bought land southwest of Ponteland with the aim of creating a ‘garden city’ for professional and managerial residents. The railway gained Parliamentary approval in 1909, and the Estate entered into an Agreement with the NER on 18 October 1910 for railway access.

The single track was largely on an embankment, but there was sufficient space for the addition of a second track should traffic warrant it. Goods services to Darras Hall started on 27 September 1913 followed by passenger trains on 1 October. The trains operated between South Gosforth and Darras Hall with a reversal at Ponteland: a simple manoeuvre for the ‘auto-cars’. The Darras Hall extension was a financial failure. The estate grew slowly, and its loose grid of roads, with detached houses at a maximum density of six per acre, limited the number of potential passengers. By June 1920 the scanty provision of three trains per day (plus the need to change at South Gosforth) must have served as an additional disincentive to use the service. No industrial development was permitted at Darras Hall, save for the NER goods yard, so even goods traffic was restricted.

As for the original Ponteland branch, following a promising start, Newcastle Corporation buses (which also served Darras Hall and provided direct routes between Kenton, Gosforth and Newcastle) snatched the traffic from the trains. The introduction of Sentinel Steam Cars on the line, running through to Newcastle, failed to revive the traffic. Housing development along the route was limited. So it was that the Ponteland and Darras Hall line was closed at such an early date. Ponteland enjoyed a passenger service for 24 years, and Darras Hall for only sixteen. Parcels traffic ceased to be handled on 5 January 1935, but goods traffic continued. From time to time the branch provided a serene retreat where the Royal Train could pass the night! Darras Hall closed to all traffic in 1954. In the 1960s redundant Coast Circle electric stock was stored at Ponteland and Callerton. Ponteland’s goods service ended in 1967 and the rails were lifted beyond Prestwick ICI explosives factory siding, north of Callerton. This facility closed on 6 March 1989. (A siding between Coxlodge and Kenton Bank serving Rowntrees closed on 28 July 1988.)

After a gap of over fifty years much of the Ponteland branch regained its passenger trains in 1981 when the route from South Gosforth to Bank Foot (Kenton) re-opened, and was finally electrified, as part of the Metro network. The service was extended to Newcastle Airport on 17 November 1991, which involved a very short branch from the Ponteland route. Former station sites at West Gosforth and Coxlodge were occupied by Regent Centre and Fawdon Metro stations respectively, while at Callerton Parkway and Bank Foot Metro stations were sited at the ‘Newcastle end’ of Callerton and Kenton Bank sites. Metro stations at Wansbeck Road (opened 1981) and Kingston Park (1985) were entirely new.

The eccentricity of the Darras Hall branch was compounded by its short-lived extension to Belsay Colliery, four miles SSW of Belsay village in the depths of the Northumbrian countryside. The colliery, which opened in 1923 to extract household coal, was operated by Kirkheaton Coal Company. (This firm’s nearby Kirheaton Colliery and Drift closed in 1924.) The workforce never reached a hundred, production was limited, and the colliery closed in 1930. For some of the colliery’s working life, an untimetabled passenger train service for miners was provided on the 7½-mile single-track route for the final mile between Belsay Colliery and a row of miners’ cottages at Wallridge (NZ059768). It is unlikely that platforms were built either at Belsay Colliery or Wallridge. Motive power was an ex-Glasgow & South Western Railway 0-6-0, and there were six trucks, two passenger coaches and a guard’s van. The line was known as the Wallridge Mineral Railway after the almost uninhabited parish where it terminated: the population in 1901 was two. In 1931 there were 37 inhabitants, and presumably all or most of these people occupied the miners’ cottages. The line was not shown on the Ordnance Survey One-inch Popular Edition map (published 1947) but its route appeared on the first Seventh Series Sheet 78 of 1953 as Track of old Railway.

Ticket from Michael Stewart

To see other stations on the Ponteland & Darras Hall branch click on the station name: Coxlodge, Kenton Bank, Callerton, Ponteland, Darras Hall. See also Belsay Colliery on the Wallridge Mineral Railway

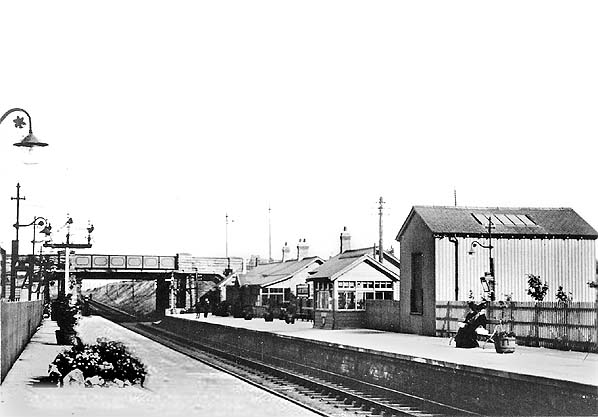

West Gosforth Station looking east in c.1905
Copyright photo from John Alsop collection

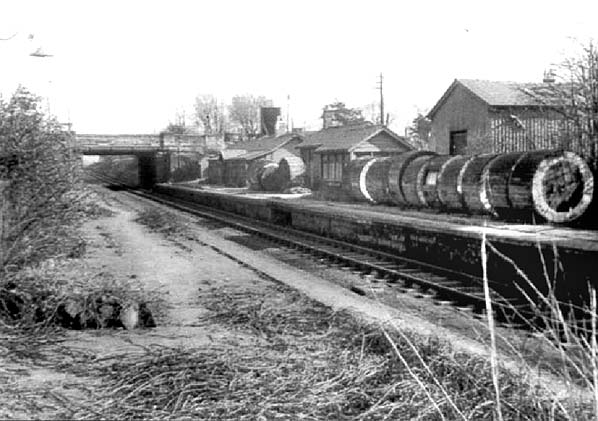

West Gosforth Station looking east in March 1956

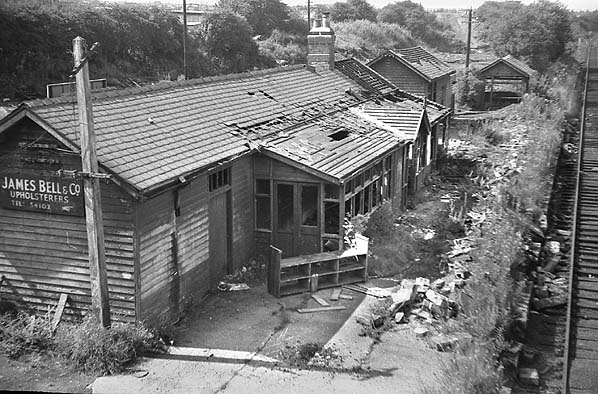

West Gosforth Station looking west in June 1968
P
hoto by Nick Catford

Looking east From Regent Centre Metro Station at the site of the east end of
West Gosforth Station in April 2009
P
hoto by Ali Ford

Looking west from Great North Road Bridge at the site of West Gosforth Station. Regent Centre Station has been built largely on the site of West Gosforth Station. The Regent Centre itself is built on the site of Regent Colliery.
Photo by Ali Ford

June 1968

June 1968

June 1968

June 1968

April 2009

April 2009
