Station Name: WEST GREEN

[Source: Nick Catford]
Date opened: 1.1.1878
Location: On the north side of West Green Road at junction with Philip Lane
Company on opening: Great Eastern Railway
Date closed to passengers: 7.1.1963
Date closed completely: 5.10.1964
Company on closing: British Railways (Eastern Region)
Present state: Demolished - no evidence of the station remains. A fine twin arch overbridge takes Belmont Road across the cutting north west of the station site. One bridge parapet survives on the south side of West Green Road.
County: London
OS Grid Ref: TQ325893
Date of visit: May 1968, Summer 1968, October 1974, May 1981, May 2009
Notes: West Green station was sited in a deep wide cutting on the north side of West Green Road. The single storey brick-built booking office stood on West Green Road from where covered stairways led down to the wooden buildings at track level. A signal box was provided at the north end, and this controlled movements around the goods yard, which was located
on the down side with sidings that came up almost to West Green Road above and behind the platform.

The Palace Gates branch suffered little damage during WW2 but on 14th October 1940, a 250-kilo bomb that landed near West Green and damaged the signal box. West Green was again damaged on 14th March 1944, when an AA shell landed on the up platform, but this caused little damage

The platform buildings were demolished in summer 1968. The street level building survived into the early 70's but had been demolished and the cutting infilled and redeveloped by 1974. On West Green Road some adjacent buildings of railway origin survived until c.2003. They were damaged by fire in June 2001 and subsequently boarded up and later demolished and the site redeveloped.

BRIEF HISTORY OF THE PALACE GATES BRANCH
In 1866 the Great Eastern Railway received parliamentary approval for branch line to serve the new leisure complex of Alexandra Palace which was under construction. The line was to run from a junction with the existing Enfield line at Seven Sisters to an end on junction with the Great Northern line from Finsbury
Park to Highgate which received parliamentary approval in 1864. No work was undertaken and the line was abandoned in 1869 due to cost and the steep gradient up to the Palace site. The west end of the line between Highgate and Muswell Hill was built by the GNR, opening in 1873 with an extension to Alexandra Palace opened by the Muswell Hill & Palace Railway on the same day.

The Palace, which also opened on the same day as the railway was an immediate success but this was short lived as it was gutted by fire 17 days later, reopening in May 1875.  In an attempt to capitalise on the popularity of the Palace as a tourist attraction the Great Eastern resurrected their line from Seven Sisters but this time it was a more modest scheme, terminating at a station called Palace Gates adjacent to the GNR's Wood Green station and avoiding the steep climb up to the Palace. Passengers wanting to reach the Palace faced a steep 3/4 mile walk from the new terminus.

Parliamentary approval was received in 1874 and construction of the 2 1/2 mile double track branch started almost immediately with intermediate stations at West Green and Green Lanes. The line opened between Seven Sisters and Green Lanes on 1st January 1878 with the final section to Palace Gates opening on 7th October 1878.

Initially services ran from Liverpool Street but from January 1880 trains also ran to Stratford and Fenchurch Street using a new junction at South Tottenham. From 1st September 1880 this service was diverted to Blackwall via the 'Limehouse Curve' but this service was not well used and was withdrawn a few months later. From 1st June 1887 a new service to North Woolwich was introduced which was to remain through the line's life.

Alexandra Palace never lived up to expectations as a tourist attraction. Tourist traffic on the branch never amounted to much except on special occasions such as bank holidays and exhibitions. The line relied on commuter traffic to the City and the East London docks. The Palace Gates branch was at its height in the early 20th century with a 30-minute interval off-peak service to Liverpool Street (more during peak hours) with 41 up and 38 down trains between Palace Gates and Liverpool Street and an hourly weekday service to North Woolwich (less frequent on Sundays). Passenger numbers were soon in decline however due to a change in employment patterns (local road journeys to new factories instead of radial rail journeys) and improved road transport as tramways spread northwards, reaching Wood Green from Finsbury Park in 1904. Local bus services were also improved and it was soon quicker to reach central London by road.

In 1912 the Sunday service into Liverpool Street was withdrawn and replaced by a shuttle between Seven Sisters and Palace Gates. Although fewer people now used the line to reach central London it still provided a useful commuter service to the East London Docks and during WW1 it was used by munitions workers commuting to the Woolwich Arsenal.

From 12th July 1920, the Great Eastern introduced a new intensive suburban timetable which revolutionised workings in and out of Liverpool Street. To aid easy identification of trains by passengers, and therefore avoid congestion around the barriers, all rolling stock became colour coded. First and second class compartments were denoted by yellow and blue bands respectively, and a coloured board was also attached to the sides of the guard’s van to identify the train’s ultimate destination. In the case of through workings to Palace Gates this was pink. The garish collection of hues soon brought the nickname ‘The Jazz Service’. The new timetable also brought new rolling stock with the introduction  of 2-car 'auto' or push-pull sets which provided the half hourly slack period working and at peak hours connected with Enfield line trains at Seven Sisters, alternating with through trains between Palace Gates and Liverpool Street making a combined 10-minute frequency.

Although the track north of Palace Gates station terminated very close to the Great Northern line there was no physical connection until 1929. Even then there was only a single line used almost entirely for stock movements from the Great Eastern Section to the carriage washing plant at Bounds Green, although it also saw a few excursion workings towards the end of
the 1930s. After the first war passenger numbers continued to decline not helped by the opening of the Piccadilly Line from Finsbury Park to Arnos Grove on 19th September 1932. New tube stations at Turnpike Lane, Wood Green and Bounds Green all took passengers from the Palace Gates branch.

While passenger numbers to and from London fell the North Woolwich service was still relatively well patronised with 14 weekday train and an hourly Sunday service still running in 1938. Following the outbreak of war in 1939 an emergency timetable was introduced with only one morning train running between Liverpool Street supplementing the shuttles and the North Woolwich service.

The connection with the Great Northern had strategic wartime uses, and it was therefore re-laid to allow easier through running soon proving a valuable link for essential wartime freight traffic. From 6th July 1942 the shuttle service was withdrawn and never reinstated. Following the end of the war and the sole surviving Liverpool Street to Palace Gates to Palace Gates train
was withdrawn in 1947

After the war passenger numbers on the remaining North Woolwich service declined rapidly and this was soon reduced to a peak-hour-only Monday - Friday service with a very limited weekend service of one morning and one afternoon train. There was however little demand for this weekend service and it was soon withdrawn.  The shuttle service was surprisingly reinstated in May 1948 but discontinued again in January 1951 due to shortages of fuel.

The peak hour North Woolwich service continued through the 1950's with the occasional excursion to Southend or Clacton using the branch. In May 1959 the 1944 connection was to prove useful once more when engineering work at Broxbourne meant that Cambridge trains were diverted along the branch. The locomotive depot at Palace Gates closed in June 1954 although by this date it was run-down and the turntable had been out of use for some time.

The branch was the last part of the former Great Eastern suburban system to be worked entirely by steam although in the early 1960's some diesel loco’s were used and from 1st January 1962 some workings were taken over by DMUs. By this time there were six daily trains from Palace Gates to North Woolwich, and nine in the opposite direction, all at peak times only. It
came as no surprise when closure was eventually announced for 5th January 1963 with the last train consisting of four coaches packed with mainly enthusiasts hauled by Brush Type 2 Alma-Ata diesel loco. The train returned to Stratford empty.

Freight services carried on for a littler longer with the goods yards at Noel Park and Palace Gates closing on 5th October 1964 while that at West Green closed on 7th December 1964. Through freight traffic ceased on 28th December 1964. Since July 1958, there had been a coal concentration depot in the sidings at Palace Gates and this remained in use, although it was reached by way of the connection with the former GNR at Bounds Green. The track was lifted in 1966 and today although some sections of the track bed have been developed the track is for much of its course traceable and a number of overbridges remain extant.  All the station sites have been redeveloped with the exception of the north end of Palace Gates and Seven Sisters which is now a public park.

Other web sites: Abandoned Tube Stations Tickets from Michael Stewart unless stated

Sources:

To see other stations on the Palace Gates branch click on the station name:
Seven Sisters, Noel Park & Wood Green & Palace Gates (Wood Green)

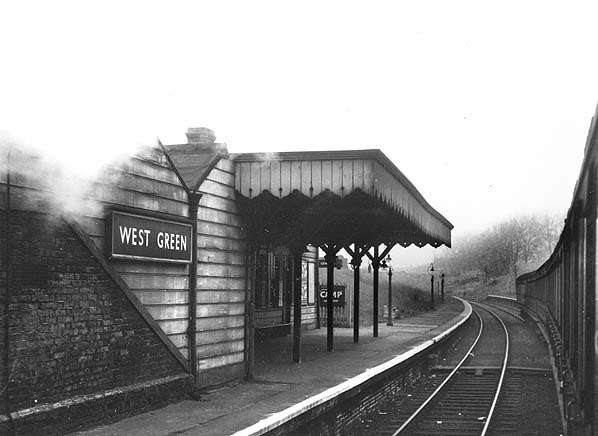

West Green Station looking north west in 1955
Copyright photo by H C Casserley

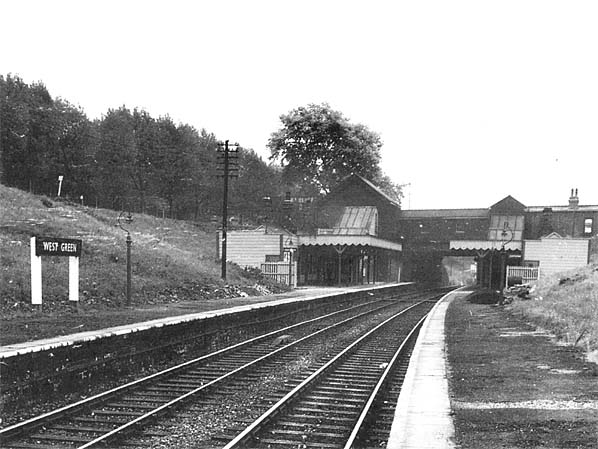

West Green Station looking south east in c.1960
Photo from Ian Baker collection

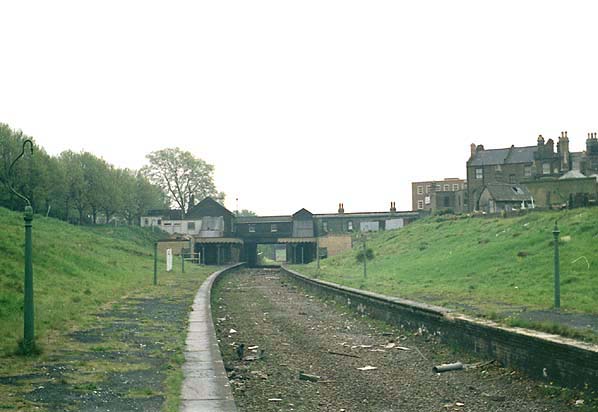

West Green Station looking south east in May 1968
P
hoto by Nick Catford

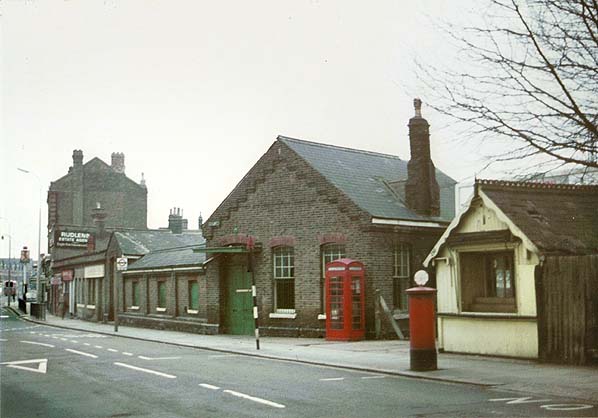

West Green Station in 1968
P
hoto by Ian Baker

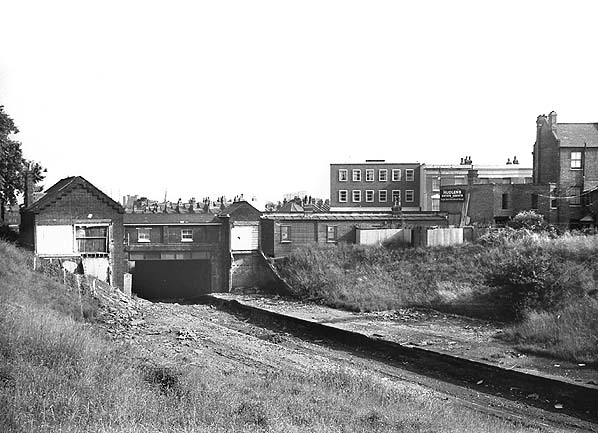

West Green Station in Summer 1968, shortly after the buildings were demolished
P
hoto by Nick Catford

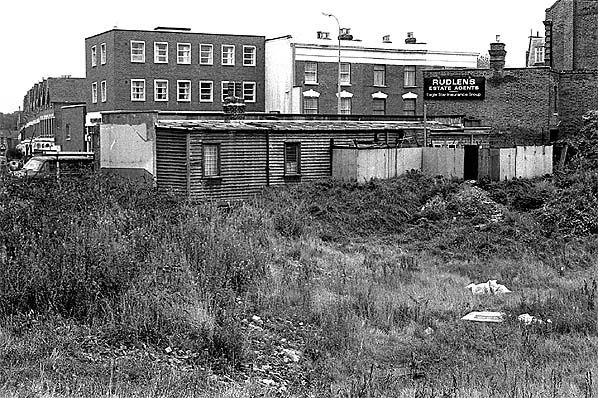

The site of West Green Station in October 1974. The cutting has been filled in, burying the platforms. All but one of the street level buildings have been demolished; this was the former coal office. The goods yard was at street level with one siding almost reaching the rear of these buildings. The buildings were damaged by fire and boarded up in June 2001 and demolished by spring 2003.
Photo by Nick Catford

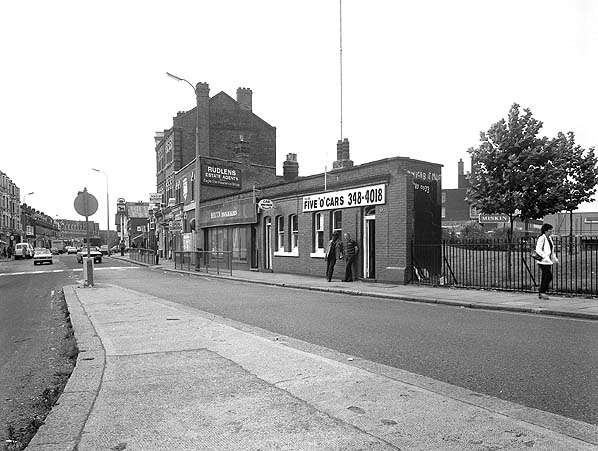

The site of West Green Station entrance in May 1981. The remaining buildings have been radically altered at the rear.
Photo by Nick Catford

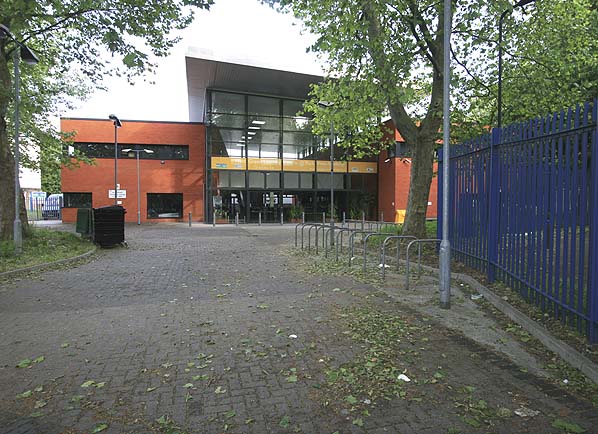

The site of West Green Station looking north west in May 2009. The West Green Learning Centre now stands above the infilled cutting.
Photo by Nick Catford
