Station Name: NORTHALLERTON LOW LEVEL

[Source: Nick Catford]


Date opened: December 1854 (Emergency station 1941)
Location: south of Romanby Gates (level crossing) on Ainderby Road (B1333)
Company on opening: Leeds Northern Railway
Date closed to passengers: 10.2.1901
Date closed completely: 10.2.1901 (Emergency station c. early 1960s)
Company on closing: North Eastern Railway
Present state: Demolished - no trace of the station remains
County: Yorkshire
OS Grid Ref: SE363933
Date of visit: Not visited

Notes: The Leeds Northern extension to Stockton opened on 7th June 1852 crossing under the York Newcastle & Berwick Railway north of Northallerton station. The Leeds Northern had their own station called Northallerton Town which opened with the line: this was sited north of the YN&BR crossing.

In December 1854, The Leeds Northern opened a second station at Northallerton adjacent to the YN&BR's Northallerton station. At this point, the two lines were parallel with each other but the Leeds Northern was at a lower level. There was a footpath linking the two stations. Bradshaw in 1855 shows Leeds Northern trains calling at both the Low Level station and Northallerton Town, but this didn't last for long as Northallerton Town closed on 1st January 1856. At this time the Leeds Northern extension was single-track but it was double-track through the Low Level station.

On 1st January 1866, a new spur was opened. Trains from Stockton were diverted into the main line station and then proceeded to Leeds via Thirsk. After that date, the Low Level station was retained for local services from Melmerby, terminating at Northallerton (see timetable below).

In 1858 the Leeds Northern opened a single-road, straight-through engine shed alongside the Low Level station, with a second dead-end of a similar design being attached to it in 1882. In 1886 the second shed was extended northwards. Shedcode 51J, Northallerton closed on 3rd March 1963 and was demolished in November 1964.

In 1901 the Stockton extension was doubled, and gradually more traffic used the shorter route. The Low Level station remained in use until 10th February 1901, the last train probably running the previous day (which was a Saturday).

The station was sited between the Boroughbridge Gates to the south and Romanby Gates to the north. It isn't shown on the 1890 map below (when it was still open) although the footpath to it is. The widening of the tracks at the station sites suggests it was probably an island platform. The 1928 map shows the tracks have been realigned and the gap has gone.

In 1941 new platforms were built on the site of the old Low Level stations (see notes below). These platforms were for emergency use during WW2 and would have been used if Northallerton station was damaged during an air attack. Trains would have been diverted onto a newly built avoiding line, calling at the emergency station.

There were two side platforms 784ft in length, with ash surfaces behind a revetment of corrugated iron and old sleepers. These were retained by sections of old vertical rail, bent over at the top to support platform edges made from old sleepers. Each platform had a reused timber waiting shelter and oil lamps. The platforms weren't used during the war but were retained at least until the 1960s for use by trains bound for Teesside when there was engineering work on the East Coast Main Line.

The platforms were probably demolished at the same time as the engine shed in November 1964. Today there is no evidence of the station,. following track realignment and deep ballasting. The track through Low Level is still occasionally used by diverted trains during engineering works but has no regular passenger service.

BRIEF HISTORY OF THE LEEDS NORTHERN RAILWAY
In 1835 George Hudson was elected to York City Council (becoming Lord Mayor in 1837). In the same year, he met George Stephenson by chance in Whitby and they became friends and business associates. He learnt of Stephenson's dream of a railway from London, using a junction of the London and Birmingham Railway at Rugby, through Derby and Leeds to Newcastle - but bypassing York!

In fact, since 1833, plans had been advanced for three lines - the Midland Counties Railway from Rugby to Derby, the Birmingham and Derby Junction Railway from Henley in Arden just outside Birmingham to Derby and the North Midland Railway from there to Leeds which was first reached by the Leeds & Selby Railway in 1834. In 1835, George Hudson formed a committee to promote a line to be known as the York and North Midland Railway which was incorporated in 1836. This proposed line would join the North Midland at Normanton a few miles east of Leeds and it received its Act of Parliament in 1837.

The first section of the Y & NMR opened on 20 May 1839 between York and a junction with the Selby line at Gascoigne Wood with the remaining section to Normanton opening on 1st July 1840. A spur to Methley Junction giving access to Leeds via a working arrangement with the North Midland was opened on 27th July 1840 followed by a southbound curve from the L & S at Gascoigne Wood.

The L & S offered a direct route into Leeds from the east while Hudson's longer route into Leeds ran through Castleford via the Whitford and Methley Junctions. On 9th November 1840 George Hudson arranged to lease of the Leeds and Selby and he promptly closed the line to passengers west of Milford; despite his line being 4 miles longer, passengers now had no choice but to use it. In 1844 an act of Parliament was passed allowing the York and North Midland to absorb the Leeds and Selby Railway.

Having completed the York line, George Hudson turned his attention to Harrogate, proposing a branch to the town via Wetherby from a junction with the Y & NM at Normanton. Local people and businesses initially opposed the railway fearing an influx of people from Leeds and Bradford would lower the tone of the area but this opposition was overcome and the line opened to a temporary terminus at Spofforth and was extended into a terminus at Harrogate Brunswick on 20th July 1848.

Thirsk and Northallerton were early additions to the railway map as part of the Great North of England Railway which, as planned, would run from York to Darlington and then on to Newcastle-upon-Tyne. The middle section between Croft and Darlington was authorised by Parliament on 4th July 1836 and work started near Croft on 25th November 1837. The southern section of the line was authorised on 30th June 1837 and then work was concentrated on this section in order to join up with the Y & NMR which was already under construction with the two companies sharing a joint station at York.

The line opened between York and Darlington to goods traffic on 4th January 1841 and to passengers on 31st March. It was at this stage that George Hudson decided to invest in the Great North of England Railway so that they could complete their line from Darlington to

Newcastle-upon-Tyne. With George Stephenson he planned and carried out the extension of the line to Newcastle, and by 1844 he had control of over a thousand miles of railway. The GN of ER was purchased by Newcastle and Darlington Junction Railway under act of 27th July 1846 becoming the York & Newcastle Railway and, in 1847, the York Newcastle & Berwick Railway.

The Leeds & Thirsk Railway was incorporated by Act on 21st July 1845 to serve Harrogate and to provide an alternative route from Leeds to the north east to break George Hudson's monopoly on rail transport in that area.

Although the line was built in 4 years, it was opened in stages as the southern section of the line was more demanding of the engineer’s skills with 5 major viaducts and Bramhope tunnel (which when finished was only exceeded in length by Standedge and Woodhead). The first section of line to open was between a new terminus at Thirsk and Ripon.

Initially this opened to mineral traffic only on 5th January 1848 and after the line had passed its Board of Trade inspection a passenger service was introduced on 1st June 1848 although it is likely some passengers had been carried before this date. Railway companies were not averse to taking members of the public along parts of their lines as they were being built as long as the company had stock and locomotives to so do. Such clandestine operations were quite common.

Intermediate stations were opened with the line at Wath (later renamed Melmerby), Baldersby and Topcliffe. At Thirsk the line passed over the YN & B to a terminus close to the centre of the town with the YN & B station being over a mile to the west of the town.

The next section to open completely was that from Ripon to Weeton via Starbeck. This opened on 1st September 1848 with intermediate stations at Wormald Green, Nidd Bridge and Harrogate (renamed Starbeck in August 1857).

The final section between Weeton and Three Bridges Junction at Leeds (which included Bramhope tunnel and two of the viaducts) opened on 9th July 1849 linking up with the existing line into Leeds Central station which it shared with Leeds Dewsbury & Manchester Railway, The Great Northern Railway and the Manchester & Leeds Railway.

Under the NER's Harrogate Branches Act of 8th August 1859 all of Harrogate’s services were brought together in one centrally sited station with the construction of 4 connecting lines, including a curve from Dragon Junction east of the new Harrogate station to Bilton Road Junction on the T & L and from Dragon Junction to Starbeck.  Harrogate Brunswick was closed when the new through station was opened on 1st August 1862.

The architecture for the Leeds and Thirsk is attributed to Thomas Grainger but with considerable involvement by John Bourne. The latter became resident engineer of the L & T in 1846 and sole engineer in 1852 when Grainger died in an accident on the line. The stations on the L & T were nothing of merit, only three of them were permanent structures at its opening namely Thirsk, Topcliffe and Starbeck. The seven others were nothing short of basic with low platforms and simple timber shelters.

In 1846 the L & T sought powers to extend their rails northward from a junction at Melmerby, passing under the Great North of England Railway at Northallerton and then on to Stockton-On-Tees to link up with the Stockton and Hartlepool Railway.  This was opposed by the GN of ER who persuaded the L & T to only apply for the northern section of their line from Northallerton in return for an agreement to build junctions at Thirsk and Northallerton which would allow through running between the two lines.

The first scheme for a station near the small market town of Masham in Wensleydale, was proposed by the Northern Counties Union Railway for a 127 mile line from the Leeds & Thirsk Railway at Melmerby to Leyburn, Hawes, Kirkby Stephen and Appleby and on to a junction with the Lancaster & Carlisle Railway south of Clifton At Kirkby Stephen, there would be a junction with the Stainmore line running between Bishop Auckland and Tebay. Although the company received its Act on 27th July 1846, the scheme was doomed to failure owing to unworkable clauses being inserted into the Bill at the instigation of the London & North Western Railway and Lancaster & Carlisle Railway who did not want the line to be built, and also opposition from the Duke of Cleveland who was reluctant to sell the company a vital strip of land. Despite this opposition, a total of 2 ¼ miles was completed, including a section of earthworks north of Melmerby.

In 1848 the L & T made a further attempt to extend their line northwards from Melmerby to Northallerton and this time they were successful in receiving parliamentary approval. The partially completed earthworks to the north of Melmerby were purchased from the Northern Counties Union Railway formed part of the new route.

At this time, a change of name to the Leeds Northern Railway seemed appropriate, and this was sanctioned by Parliament in 1851. Work began at Melmerby the same year with a junction off the Leeds Northern striking north for Northallerton and an underline bridge on the York Newcastle & Berwick Railway as it was now called. No junction was provided with the YN & B with a low level station being built at Northallerton adjacent to the existing station. The section north of Northallerton was to be the most expensive endeavour but is beyond the scope of this brief history.

The line from Melmerby to Northallerton was initially single track, and was not doubled until 1901. The bulk of the passenger services were to continue along the original L & T R to Thirsk Junction (as the YN & Bs station at Thirsk was now known) where it took the YN & B route to Northallerton from where it branched off to the east for Stockton. Such a service
even continued beyond the doubling of the line in 1901 but gradually passenger trains took the shorter route to reach Teesside and in later years this route increased in importance and was used by the Newcastle - Liverpool dining car trains and the LNER and BR Pullman trains. With trains now running onto the YN & B and on to Northallerton, Thirsk Town station closed in December 1855 although it was retained as the town's goods station until 3rd October 1966.

Melmerby station was given an extra platform to the north of the road level crossing forming a ‘V’ with the platform on the Thirsk line. The extension opened on 2nd June 1852 between Melmerby (renamed from Wath) and Northallerton Town which was on the east side of the YN & B. Intermediate stations were provided at Newby Wiske and Sinderby (and further stations between Northallerton and Stockton). Northallerton Low Level opened in December 1854 and an additional station at Pickhill was added in March 1875.

On 1st January 1856 a spur was opened allowing services to run from the Stockton line onto the YN & B where they called at the main (high level) Northallerton station. At this time Northallerton Town was closed but the low level station was retained as the northern terminus for local services to Melmerby.

A branch opened from Ripley Junction (between Nidd Bridge and Starbeck) to Pateley Bridge on 1st May 1862 (closed 2nd April 1951), and a branch from Melmerby to Masham was eventually opened on 10th June 1875 (closed 1st January 1931)

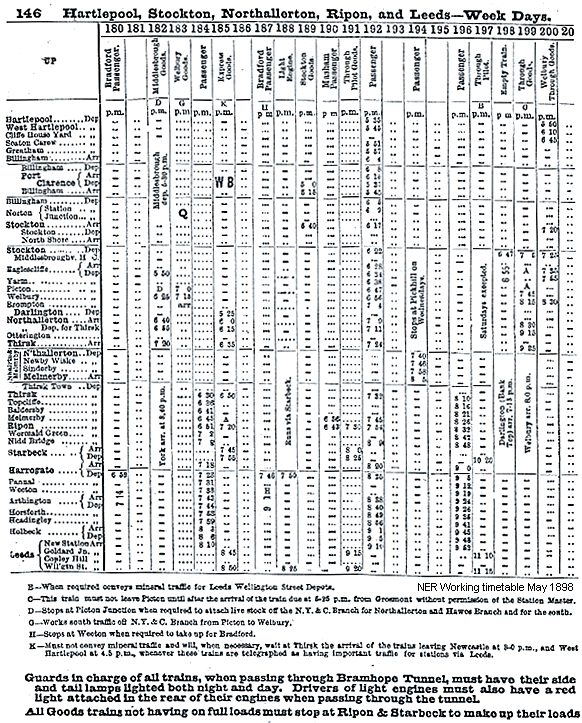

This timetable shows a local service from Melmerby that would have terminated at Northallerton Low

When the Leeds and Thirsk first opened the Great North of England Railway was not too concerted so long as traffic from the south of England was routed via their line to the north. However once the Leeds Northern had a connection with the London & North Western Railway at Leeds and access to the docks at Hartlepool via the Stockton line it was clear that the two lines would be competing for traffic.  Initially the YN & B slashed fares but it was soon clear that amalgamation seemed the best option. This followed on 31st July 1854 when the Leeds Northern, York & North Midland and the York Newcastle & Berwick amalgamated to form the North Eastern Railway, the fourth largest of the pre-1922 grouping companies.

Northallerton Low Level station finally closed on 10th February 1901 when a new link, the Cordio Loop from Cordio Junction on the Leeds Northern to South Junction on the old YN & B, was opened on 10th February 2001 to allow trains from the Sinderby line to run into the main station. A second, the Longlands Loop running from Longlands Junction on the YN & B, under the Cordio Loop to Boroughbridge Road Junction on the Leeds Northern opened for down (northbound) traffic only on the same day.

In July 1922, Bradshaw's Railway Guide shows 14 down trains and 13 up trains calling at Ripon, the principal station on the line on weekdays with three on a Sunday. These didn't however stop at all stations however. Baldersby had 3 down trains and 5 up trains with two on Sunday. Sinderby had 3 up trains and three down trains with no Sunday service.

During WW2 the War Office considered Northallerton with its strategically important junctions between the former Leeds Northern (although part of the NER since 1854 the line was often still referred to as the ‘Leeds Northern’ until closure) and the main line to be a 'vulnerable point'. If one of the underline bridges was destroyed during an air attack it could block all north - south traffic through the town. To safeguard against this, an emergency connection between the two lines was authorised on 28th November 1940.

Construction of the 'Avoiding Line' as it was known started in January 1941. The line was 960 yards in length running from a point just north of Romanby Gates level crossing on the Leeds Northern passing under the Hawes branch on a very low temporary bridge with a headroom of only 4'6" (this would have been quickly demolished if the avoiding line had to be used) to a junction with the main line at Castle Hills. The new line was available for use from 23rd June 1941 but it was never used.

At the same time, emergency platforms were built immediately south of Romanby Gates level crossing, these would have been used if Northallerton station was damaged during an air attack. The avoiding line was lifted by the end of 1947 but the emergency platforms remained at least until the 1960s for use by trains bound for Teesside during engineering works on the East Coast main line.

The old Leeds Northern survived nationalisation with the exception of Newby Wiske station which was closed as an economy measure in both wars, finally closing on 11th September 1939. After WW2 both passenger and freight traffic was in decline and Bradshaw's October 1951 Railway Guide shows 13 down trains and 11 up trains calling at Ripon with 5 on Sundays. Baldersby had 3 down trains and 4 up trains with 2 on Sunday while Sinderby had 2 down trains and 1 up train with no Sunday service.

It was soon clear that the service could not be maintained. Pickhill, Baldersby and Topcliffe closed on 14th September 1959 and the line from Melmerby to Thirsk closed completely was lifted. Nidd Bridge Wormald Green and Sinderby closed on 18th June 1962 but all remained open for goods traffic, Sinderby until November 1963 and the other two until August 1964. This left a reduced service between Harrogate and Northallerton calling at Ripon and Melmerby. This was finally withdrawn on 6th March 1967 as part of the Beeching cuts when Melmerby closed completely. At closure, Ripon station was still quite busy with 19 daily departures and 6 on Sundays.

North of Ripon, a daily freight working shunted the yard at Ripon then worked on to Melmerby, where there was an MoD ordnance depot. This closed at the end of 1968 with the last freight working north of Ripon on 31st December 1968 to collect the last wagons. Ripon station remained open for goods traffic arriving from the south until 5th September 1969, with a private siding remaining in use after that date.

The story has a twist in that shortly after closure; a serious accident took place just south of Thirsk on 31st July 1967. This closed all but the up slow line on the ECML and the resulting chaos can easily be imagined. The situation was made no better when attempts to operate the slow line as a dual direction line under a pilot proved to be chaotic. A radical solution was to reopen the Leeds Northern route from Harrogate to Northallerton for north bound trains only, (South bound trains continued on the slow line). As signal boxes had been shut and battery boxes removed, no interlock detectors could be operated, the first priority was to replace batteries. On the same day as the accident, a train had been sent from Darlington with the required batteries and pilot man and all 9 signal boxes and cabins were re-instated. Men were found to operate them on 12 hour shifts until the emergency was removed on 2nd August.

For all too brief a time, the line had proved its value as an emergency route, and voices were raised in a vain endeavour to keep it open. However, serious accidents on the ECML were so few that it would have been folly, in terms of maintenance alone, to keep the route. So once again the batteries were removed and the signalling also. The condemnation of the road bridge at Sinderby may have been a management move to ensure that the line could never reopen. In 1968 the bridge was filled without even removing the track. The Leeds Northern track was lifted in 1970.

Today the southern section of the old Leeds Northern between Leeds and Harrogate is still open, although it now follows a former branch line to York instead of continuing through Ripon to Northallerton. In recent years a feasibility study has been undertaken into the possibilities of reopening the line between Harrogate and Northallerton. There has been a large amount of public support for the scheme. The northern section of the Leeds Northern between Northallerton and Stockton also remains open although all intermediate stations have closed with the exception of Yarm and Eaglescliffe.

Click here to see photographs of a journey between Harrogate and Northallerton on 4th March 1967, the last day of public service.

Route map and timetable from Alan Young

Sources:

To see other stations on the Leeds Northern Railway click on the station name: Newby Wiske, Pickhill, Sinderby, Melmerby, Ripon, Wormald Green, Nidd Bridge, Baldersby, Topcliffe, Thirsk Town & Thirsk (Junction)

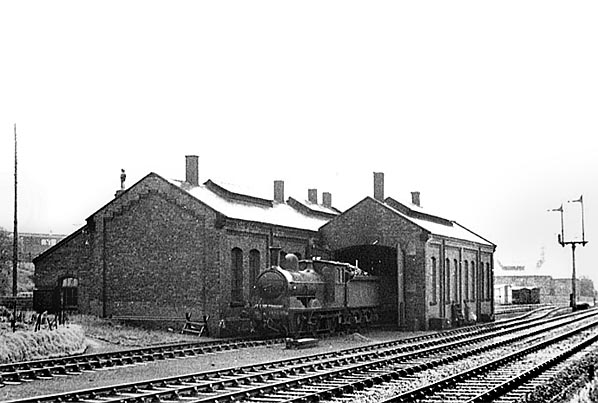

The site of Northallerton Low Level station in May 1937. The station was adjacent to Northallerton shed which is shown here. The loco a J21, designed by TW Worsdell, and was a compound when built. The J21s were all rebuilt as simple engines by TW Worsdell's brother, Wilson, who had a dislike for compounding. The Ramsbottom safety valves were changed in 1948 to Ross Pop vales. 65033 is preserved and under restoration on the North Norfolk Railway.
P
hoto from Roger Griffiths collection

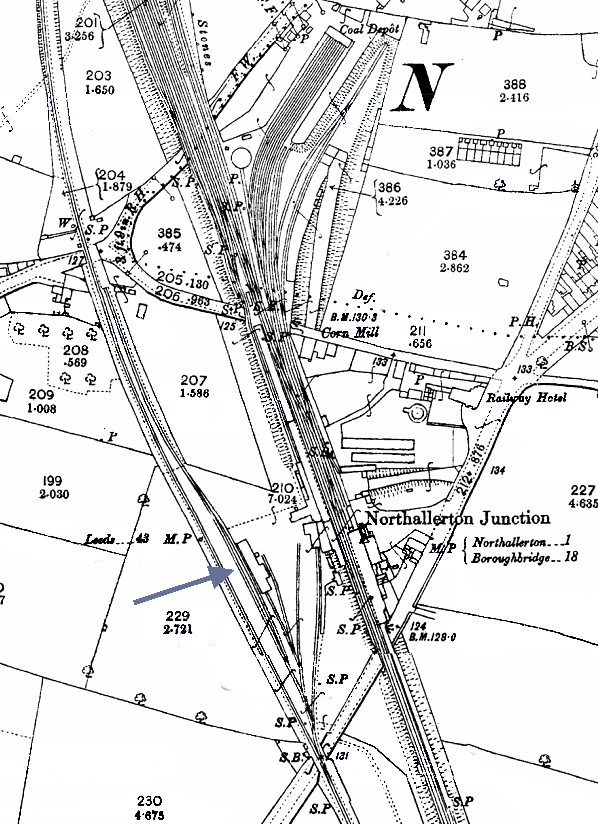

1890 1:2500 OS Map doesn't actually show the station although it was open at this time. The engine shed is shown, and there is a widening of the tracks indicating where the platform was sited.

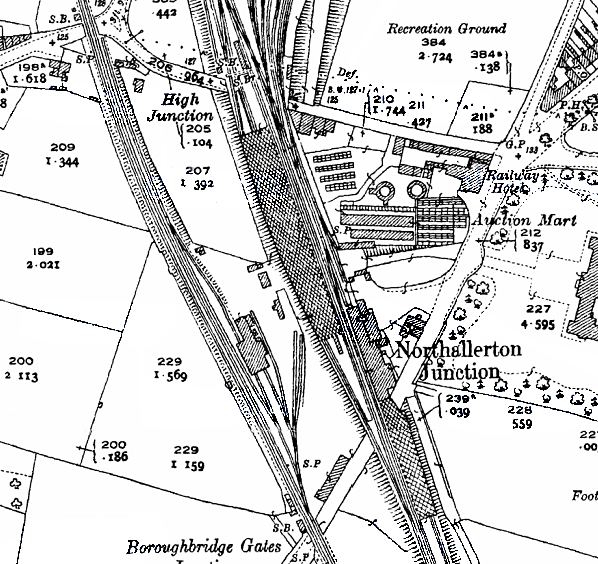

1928 1:2500 OS Map

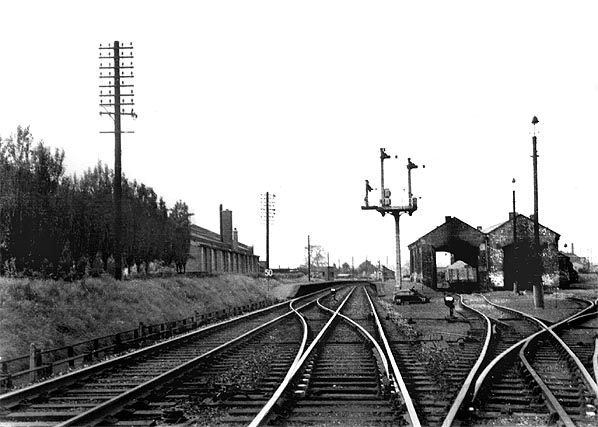

Looking north at the emergency station at Northallerton c.1955.
Copyright photo
from John Alsop collection

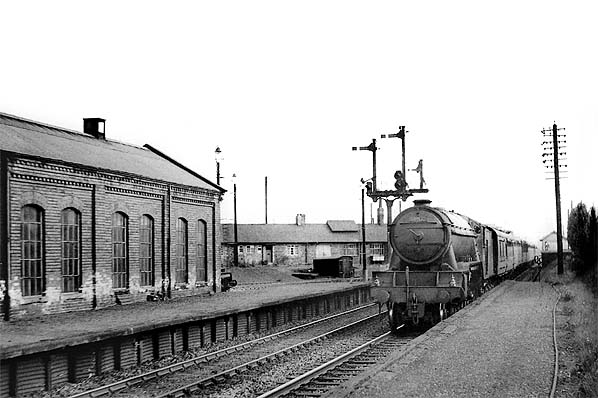

A morthbound express passing through the temporary station at Northallerton c.1950s
Photo from Jim Lake collection

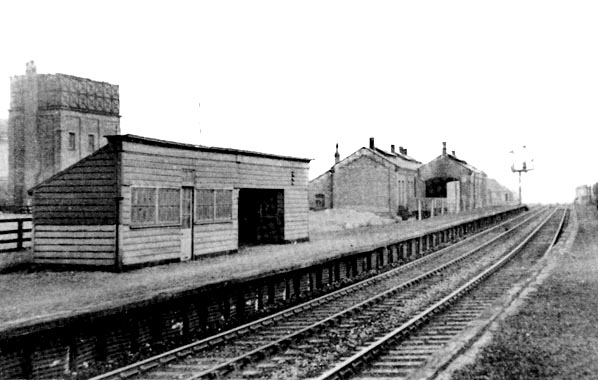

Looking north at the emergency station.

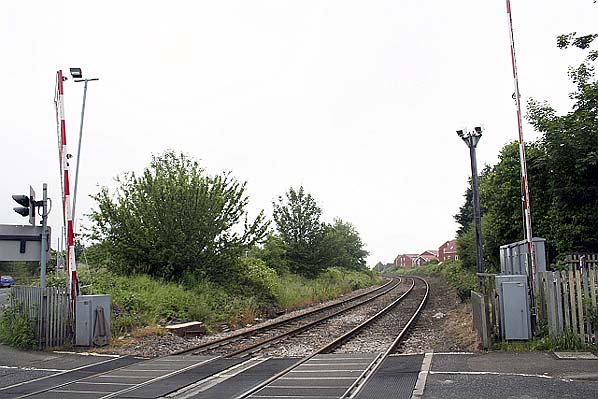

Looking south at the site of Northallerton Low Level station in June 2007.
Photo by Bob Embleton, reproduced from Geograph under creative commons licence

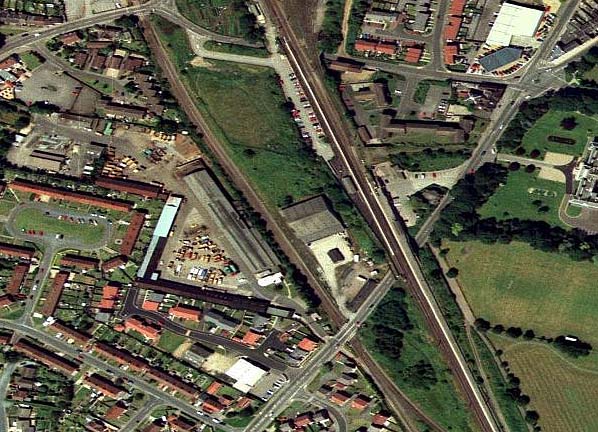

Aerial view showing the site of Northallerton Low Level station.
