Station Name: SROCKCROSS & BAGNOR


[Source: Nick Catford]



Date opened: 4.4.1898
Location: North side of Snake Lane
Company on opening: Lambourn Valley Railway
Date closed to passengers: 4.1.1960
Date closed completely: 4.1.1960 - the halt was used for transportation of horses after this date.
Company on closing: British Railways (Western Region)
Present state: The platform is still extant with some rotting of the timbers. The access path from Snake Lane can still be seen.
County: Berkshire
OS Grid Ref: SU457682
Date of visit: February 1969 and 21.2.2006

Notes: The original station here at Speen, consisted of a 9" high platform this was ultimately raised to standard height with the addition of two, twenty five foot ramps. The traditional Great Western iron shelter was added around 1910.

Like all of the intermediate stations on the Lambourn branch the platform was topped with cinders and fine gravel while it's leading edge was built of sleepers. Rails sunk vertically into the ground supported the entire structure throughout its length. Access to the station was marked by a single parking space, a gate and a small sign. From here a cinder and gravel path led up to the platform a climb of 210 ft before reaching rail level.

The station was unmanned after 1905 with staff being dispatched from either Boxford or Speen stations as required. In later years the Speen porter was responsible. The station was officially redesignated as a halt in 1934

Goods traffic was very light, primarily, small quantities of milk and farm produce. Small parcels were delivered free by the porter to the area served by the station. Larger items would be left at Newbury to await delivery by carrier.

The station was used by race horse traffic from nearby Marsh Benham stud. A horse-box would be ordered by Lambourn for attachment to the appropriate train. On arrival at the station, The horses were held on the cinder pathway until the train had stopped, before being led up to the horse box and loaded accordingly. After closure in 1960 the station was retained for the transportation of horses. This might indicate why the platform was retained after others south of Welford Park were demolished in the 1960's

For further pictures and information on Stockcross & Bagnor Station see Lambourn Valley Railway web site

BRIEF HISTORY OF THE LAMBOURN VALLEY RAILWAY
The railway came late to the isolated Berkshire town of Lambourn. The first scheme for a line to the town was put forward in 1873 with a proposal to build a tramway from Lambourn to Newbury but the scheme foundered through lack of money. In 1881 the proposal was revived when a Bill was put before parliament for a light railway. Despite being passed by the Commons the Bill was rejected by the Lords after some local protests. On 2.8.1883 a new Bill was introduced and passed authorizing the Lambourn Valley Railway to build its line.

Lack of finance delayed the construction of the line and by July 1889 only the first 4 ½ miles was ready for track laying. By June 1890 9 miles of permanent way and been laid buLambourn Valley Railwayt the contractor was unable to complete the line and further work was halted. At the end of 1893 a further Bill was obtained giving the LVR a further 4 years to complete the line but work didn't restart until January 1897 and the line was not ready until the spring of 1898 with a private opening on 2nd April.

The line was operated and maintained by the GWR under an Act of 1895 with 5 daily trains and an additional late evening train on Sunday. The line was initially single track throughout with no signaling and only one engine in steam. Station platforms were all nine inches high and with the exception of Welford Park, sited on the west side of the line.

In January 1904 the GWR expressed an interest in buying the line and a year later the LVR board approved and amalgamation which took place on 2nd July that year.

Plans were immediately drawn up to improve the line; these included a new halt at Newbury West Fields which opened in 1907 and the rebuilding of Lambourn Station with new buildings and a standard height platform. Eventually all the platforms on the branch were replaced; most stations were provided with a siding and passing loops were added at Boxford, Welford Park, Great Shefford and East Garston. The branch was worked by steam railmotors and locomotive hauled trains.

By the mid 1930's, passenger numbers were dropping due to competition from local bus services and in an attempt to win back passengers and save costs and experimental diesel railcar was tried out on the line in late 1936. This proved successful and a rail car was specifically built for use on the branch and once again the line began to make a small profit. By nationalisation in 1946 the railway was in good order with a well used and reliable service.

New traffic was brought to the line in the early 1950's, when a three mile branch was built from Welford Park to the American air base at RAF Welford. It was hoped that this would ensure the survival of both passenger and freight traffic but in 1959 British Railways announce closure of the line to passenger traffic and this took place on 4.1.1960.

Freight traffic continued as far as Welford Park but the remaining track to Lambourn was lifted in about 1962. Freight traffic was withdrawn from Boxford and Welford Park in 1965 but the line was retrained to serve the American air base being leased by the Ministry of Defence from 1.7.1967. The MOD provided its own locomotive from 1.1.1972 but this was short lived with the last recorded military use of the line on 7.8.1972. The last public train ran on 3.11.1973 when a 3-car DMU ran four return trips from Newbury - Welford Park carrying 1997 passengers. Despite proposals to reopen the line as a steam railway then track was finally lifted in late 1976

Further reading: The Lambourn Valley Railway by MRC Price 1964/1976 Oakwood Press
The Lambourn Branch by Kevin Robertson, Roger Simmonds
1984 Wild Swan ISBN 090686724X
Branch Line to Lambourn by Vic Mitchell, Keith Smith, Kevin Robertson
2001 Middleton Press

Other web sites: The Lambourn Valley Railway 1898 - 1973. Excellent web site with a large number of archive photographs of all the stations on the branch and pictures of the branch to RAF Welford..

To see the other stations on the Lambourn Valley Railway click on the station name: Newbury, Newbury West Fields Halt, Speen, Boxford, Welford Park, Great Shefford, East Garston, Eastbury Halt & Lambourn

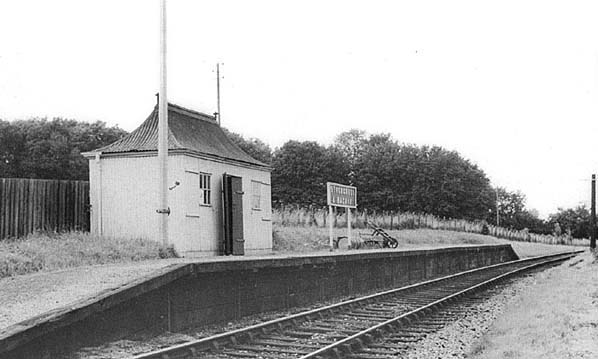

Stockcross & Bagnor Station looking north in the 1950's
Photo by John L. Smith

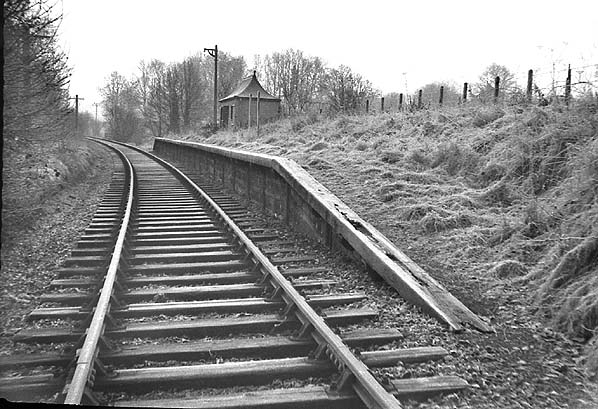

Stockcross & Bagnor Station looking south in February 1969
Photo by Nick Catford

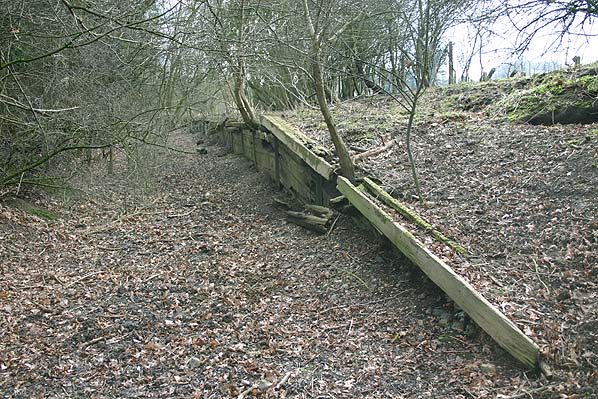

Stockcross & Bagnor Station looking south in February 2006
Photo by Nick Catford

After 1939

1969

2006

2006

Click on thumbnail to enlarge
