Station Name: WESTERHAM

[Source: Nick Catford]
Date opened: 3.7.1881
Location: South side of London Road
Company on opening: Westerham Valley Railway
Date closed to passengers: 30.10.1961
Date closed completely: 30.10.1961
Company on closing:

British Railways (Southern Region)

Present state: Demolished - the base of the goods yard crane and the station forecourt are the only surviving evidence of the station.
County: Kent
OS Grid Ref: TQ448545
Date of visit: September 1967, August 1868, April 1974 & April 2014

Notes: Westerham Station was built during a time of financial restraint and all the station buildings were of timber construction to keep costs to a minimum. The terminus was provided with a single platform on the up (north) side of the line. The single-storey building was 70ft in length and was of tongue-and-groove timber construction beneath a hipped slate roof with two brick chimneystacks. It stood on a low brick base. A slightly upward-sloping canopy with a fretted valance stretched the full width of the platform and the full length of the building; it was supported on seven timber columns with brackets. The building was later extended but the canopy remained at its original length. There was a small flat canopy over the entrance to the booking office on the road side of the building to provide some weather protection to passengers arriving by cab. A timber bicycle shed with a sloping roof was provided at the west end of the building. The building included the booking office (which gave access to the waiting rooms), stationmaster's office, toilets and left luggage and parcels office. A staff allotment was later established between the platform and London Road. The station building was set back from the road to form a forecourt which was also used for turning carriages and later buses. The Crown Hotel opened opposite the station in 1882.

The platform was faced with brick and was lit by Suggs 'Windsor' casement gas lights mounted on wrought iron columns. The gas was probably provided by the local gasworks which was situated on Croydon Road. The line continued beyond the platform terminating at a small cattle dock. It was laid out in such a way that the main line could easily be extended across London Road if the extension to Oxted was ever built. There was a run-round loop opposite the platform. A lamp room was sited 20 yards to the west of the platform on the up side, it was a small timber building with a curved corrugated metal roof.

The goods yard initially comprised a single long siding opposite the station building. It was approximately 285yd in length, ran the full length of the yard, passing through a 30ft long timber goods shed, to terminate end-on to the cattle dock. Side-loading from the dock was possible only for wagons standing at the end of the main line. The goods shed had a small wooden canopy over the loading entrance on the south face. A second 185yd siding was added around the turn of the 20th century; it ran along the southern perimeter of the yard and served the coal depot and Horton's timber yard. The goods yard crane, which had a capacity of 5 tons, stood to the east of the goods shed between the two sidings. The entrance to the goods yard was alongside the goods shed where a weighbridge and office was sited just inside the entrance gates.

A trailing siding 100yd east of the platform served a single-road through engine shed. As with the other station buildings, it was of timber construction on a low brick base. The primary use of the shed, which was a sub-shed of Tonbridge, was for stabling locomotives overnight. No turntable was provided as the shed was only used by tank engines which could operate as easily backwards as forwards. An iron water tank on six narrow legs and a permanent way hut were sited alongside the shed road.

The entire branch was signalled by Stevens & Sons and a two-storey 13-lever signal box, typical of this company’s design, was sited on the up side 20ft east of the platform. The box controlled three signal posts, two 'home' signals and a 'shunt' signal for access to the yard.

Public access to the goods yard was along a track running along the southern perimeter of the yard to serve a pre-existing industrial area. There had been a timber yard there since 1870 when Benjamin Horton expanded his business originally based in Lewisham, South London. With the coming of the railway in 1881, Horton's yard was particularly well sited to take advantage of the new line and timber was always one of the principal products handled by the Westerham yard. Horton also sold a wide variety of other building materials from his yard, much of it coming in through the Westerham goods yard. One of his biggest customers for glazed sanitary wear, slates, timber and fencing would have been builder Thomas Henry Weller who built about a quarter of Westerham between 1890 and 1930. A terrace of cottages was built adjacent to Horton's timber yard and at right angles to the railway. They were originally called Horton's Cottages but later named Railway Terrace.

Miller William Walter Barton had a warehouse adjacent to the timber yard. On Barton's death in 1887 the business was taken over by his son Angus trading in corn, cake, coal and coke. Another local business regularly dispatching goods through the Westerham railhead was the London Road and Covers Farm Brick and Tile Works. They started as two separate businesses, but combined in 1900. Drain pipes made at the works are seen stacked awaiting despatch in several photographs here.

The road serving the industries and cottages was an unadopted and un-named access road until the construction of The Flyers Way industrial estate in the early 1980s. At that time it was named Hortons Way but that name will be used at times in this feature for ease of identification.

Benjamin Horton opened a timber and coal office at the junction with Hortons Way and London Road in 1903. The single-storey brick building still stands today and is now incorrectly named 'Station House'. The building was never used by the stationmaster and only ever acted as an office for Benjamin Horton, one of the merchants adjacent to the goods yard. The longest reigning stationmaster, William Fright, lived in a two-storey house in Madan Road. After the railway opened, a small terrace of houses was built at right angles to Madan Road which runs parallel with the railway line on the north side. In the first decade of the twentieth century the terrace was extended south and the last house, No.46, adjacent to the railway boundary fence, was bought by the SE&CR for the use of the Westerham stationmaster.

Also at this time a new building appeared alongside the line to the west of the goods shed; the single-storey building was of brick construction with a double pitched roof and a door opening onto the track. It was located on railway property but is shown on a 1956 station plan as a 'cement store'. It is believed to have been initially used by Angus Barton as a grain store. Photographic evidence from the 1950s shows that at that time it was used by Horton for cement and plaster and the advert left which dates from 1890 shows Horton also dealt in glazed earthenware pipes.

S.N.Openshaw took over the coal and coke business from Horton’s around 1925 while Horton continuing selling timber and a wide range of other building material. S.N.Openshaw took over the coal and coke business from Horton’s around 1925 while Horton continuing selling timber and a wide range of other building material. In 1926 Openshaw claimed to have been established since the 1880s, but it is clear that they took over the trading position of J. S. Thompson in 1925, as their telephone numbers were the same at the wharfs in Brasted and Westerham. Both parties also claimed to be ‘…sole agent in the District for the celebrated Cannock Chase Colliery.’ In the early 1950s, Openshaw’s business was taken over by W. B. Cairns, but continued to trade under the name of S. N. Openshaw. Openshaw continued in the coal and coke business by the station yard into the mid-1950s when he diversified into pre-cast concrete. The building opposite in Hortons Way was occupied by Openshaw's Concrete Products so it is likely that they took over the cement store from Horton as later photopgraphs show Horton's name had been removed from the building.

Other local coal merchants who rented wharfage at Westerham included George Alderson who was the principoal merchant at Brasted and George Bowser. George and Margaret Bowser moved to Westerham in 1951, renting ‘Corner Cottage’ in Post Office Square. Bowser, born in 1921, had his roots in the Welsh coal mining industry, and his early days of trading in Westerham included a coal and coke merchant’s office in the High Street. By 1955 the Bowser’s had purchased ‘Homewood’ in London Road and this was adopted as the registered address for business as a sole trader. In 1964 the company G. Bowser Ltd was established, the business described as providing ‘passenger land transport’. What had started with coal cartage and sales had expanded to compete with Alderson of Brasted with the addition of coach-hire to the Bowser portfolio.

A successful and well remembered tradesman, George Bowser also sold west-end theatre
tickets from his coal merchant’s shop in the town. With Bowser’s retirement around 1985, the company was relocated to Paddock Wood where it continued in the coach hire business for another seven years.

A number of other timber buildings were sited along Hortons Way beyond the coal office. One was a stable block and carriage shed operated by John Townsend, a larger than life character who was ‘gentleman farmer’, proprietor of the Warde Arms in the High Street and owner of the largest fleet of carriages in the town including ‘The Pride of Westerham’. This row of sheds continued to grow until WWI and latterly included the town band’s practice room around 1911. These buildings, some of which are still standing and in light industrial use today, are often referred to as 'railway buildings' but, apart from Horton's coal office, they had no direct connection with the railway although many of them would have used the railway to transport their goods and for incoming raw materials. A second terrace of cottages, also called Horton's Cottages but later becoming Bloomfield Terrace, was built parallel and to the east of the first terrace in the first decade of the twentieth century. Both terraces are still in occupation today.

With the introduction of rail-motors in 1906 the engine shed was redundant although the ash pit and the water tank were retained.

After the 1923 Grouping, the Southern was the most colourful of the 'Big Four' when it came to buildings, and it used the same colour scheme throughout the Grouping period from about 1926 when the standard colour scheme was introduced. All the buildings at Westerham were repainted buff with green corner pillars, window frames and doors. The water tank and goods yard crane were light grey. The down home signal was replaced with a new lower-quadrant on a rail-built mast. The window at the west elevation of the station building was blanked off and a lean-to hut for stores was built there. The crossover leading from the run-round loop to the cattle dock was lifted; the engine shed, which had been largely out of use since 1906 was closed in 1925 and quickly demolished, leaving only its low brick base and the ash pit.

During the Southern Railway's electrification scheme in 1935 the original gas lamps at the station were replaced with the relatively little-known Suggs 'Littleton' type. Like the more familiar 'Rochester' lamp, the ‘Littleton’ was designed to cast shadowless light downwards. The new lamps were fitted with Southern Railway 'target' name signs. At the same time, new prefabricated concrete fencing was installed along the site perimeter between the station building and the buffer stop. One of the swan-necked Littleton lamps believed to be from Westerham station survives in a local back garden, albeit not with its barley-sugar twist standard. It has been converted to run on propane.

During WW2 an air raid shelter was built for the use of railway staff it was located on 30 yards to the east of the station at the bottom of the low embankment in allotments between the railway line and Madan Road. The rectangular surface built shelter was of brick construction with a reinforced concrete roof. There was an entrance in the two long faces, diagonally opposite each other. During the war being a large rail-head storage depot run by the Ministry of Supply was established alongside Horton’s timber yard; this remained in use for a time postwar. Towards the end of the war, the Ministry of Supply commandeered the Covers Farm brick works and another site just over the border into Surrey. Several large Nissen huts were erected and a supply depot was run from there until 1949.

Nationalisation brought few changes at Westerham. Circa 1952 the old SE&CR up starting signal was replaced with an SR-type upper quadrant on a rail-built mast.

After closure of the station to both passenger and goods traffic in 1961, the Westerham Valley Railway Association obtained a lease on the station building in July 1962 and it became their headquarters.  Broken windows were replaced and the building was repainted cream with maroon trim which was the colour scheme of the SE&CR. Once this had been completed members of the public had access and were able to buy platform tickets for 1d so that they could inspect the progress that was being made towards reopening the line.

In 1963 one of the WRA members, a Mr C J Prescott from Bromley, came up with a novel form of rail transport consisting of a car on a lightweight trolley. The trolley, probably purpose-built, was similar to the small trolleys used by platelayers which could be lifted on and off the track by a couple of ‘beefy blokes’, but was much larger and is estimated to have weighed around ¾ton. It appears to have been unsprung and was mounted on two axles with one-piece wheels (i.e. without separate [steel] tyres). Having received permission from BR, the car was driven onto the trolley via the end-loading cattle dock and its driving wheels rested on rollers which drove one axle of the trolley via two chains. The chain drive appears to have been set for a reduction in the region of 2:1. Once set with its driving wheels on the rollers, the car was then strapped to the deck of the trolley apparently by means of its bumpers. The trolley was named 'Railmobile' and was intended for use it on lines closed to normal traffic. The 'Railmobile' complete with its car, initially a Ford Consul MkII but later a brand new Hillman Imp, was stored in the goods shed during its 'trials'. It seems likely that the whole scheme was a publicity stunt and it came as no surprise when the scheme was never heard of again.

By late 1964, it was clear that the WVRA had lost the battle to reopen the branch and they vacated the site. The track was lifted in late 1965 and all of the station buildings were demolished in 1966. After the track was lifted, a few local firms took advantage of the empty site to house their stock including ‘Chandler Forest Products Ltd’ (the timber merchant at that time) and David McMullan’s ‘Argocat’ all-terrain vehicles assembled by Crayford Engineering of Westerham. Their occupation of the site was, however, short-lived. The site was cleared by October 1977 although the platform survived. The whole site was levelled in preparation for redevelopment in 1979 with the trackbed being raised to platform level. The first company to move manufacturing into their new premises on the station site was ‘Aqualisa' who still occupy the same space today at the north-east end of the site where the original tracks converged to the single line towards Brasted. ‘Aqualisa’ started on this site in early January 1980, but the building of the other light industrial units was phased over some two years. The platform was still there in July 1980. By this date some gardens in Madan Road had been extended across the track bed to the east of the station. Today 'The Flyers Way' road gives access to the industrial estate, and all evidence of the station has gone apart from the base of the goods yard crane which can still be seen on the grass beside The Flyers Way.  The station forecourt, opposite the Crown Hotel, is also still there although the hotel itself was closed and demolished in 1990, to be replaced with an office development called The Crown'. The original sculpted emblem from the roof frontage is displayed in the surrounding gardens.

BRIEF HISTORY OF THE WESTERHAM BRANCH
The South Eastern Railway first obtained powers to build a branch line to Westerham in 1864. These were renewed in 1867 and again in 1870 but, when no work was undertaken, a group of local businessmen and landowners took matters into their own hands in 1876 by promoting a parliamentary Bill for the construction of a branch line to their town. At that time, the closest railheads were at Edenbridge, four miles to the south, and Sevenoaks, five miles to the east. One of the prominent local promoters was wealthy landowner William Tipping who underwrote a substantial part of the £50,000 required to promote the Bill. Tipping was a director of the London & North Western Railway.

The route was similar to that first proposed by the South Eastern Railway in 1864 and would be built in two stages with the line running from a junction with the SER at Dunton Green (opened 1868) to Westerham via Brasted. The second stage of construction would see the line extended to a junction with the Croydon & Oxted Railway at Oxted. The  C&OR was a joint venture between the LB&SCR and the SER and was, at this time, under construction using the partially constructed trackbed of the abandoned Surrey and Sussex Junction Railway.

The SER opposed the extension to Oxted and, if it was built, they refused to have anything to do with the line. To avoid antagonising them, the fledgling company withdrew the second stage of their scheme in return for an agreement with the SER to provide the rolling stock and work the line for 50% of gross receipts with a minimum of £2,500 per year being guaranteed by the Westerham Valley directors. With this agreement in place, the Westerham Valley Railway Bill was put before Parliament in the session beginning 22 March 1876.

The directors had appointed Westminster-based John William Grover as engineer.  Grover was responsible for several notable buildings in London, and railway lines in England, Wales, Mexico and Venezuela. He reported to Parliament that the Westerham branch would be four miles forty-five chains in length (4¾ miles), with the steepest gradient of 1 in 70 and the most severe curve 18 chains in radius. He estimated the cost at £46,358. The Bill was passed with only one objection being received and the Westerham Valley Railway Company was incorporated by an Act of 24 July 1876.

Having received parliamentary consent for the construction of the branch nothing happened until 25 June 1879 when the SER agreed to take on the construction and maintenance of the line as well as the operation.  Charles Chambers was appointed as contractor and construction was finally underway in October 1879.

Having left the SER's Sevenoaks line at Dunton Green, the single-track branch followed a fairly straight course to Westerham with one intermediate station at Brasted. The bridges carried over the line were constructed with an additional arch for a second track if required, but none of the earthworks or other bridges had this provision. Westerham station was typical of other SER stations built at this time of and was provided with wooden buildings to keep costs and construction time to a minimum.

Despite unusually bad weather slowing work in the autumn of 1880, by the following February construction was in an advanced state but was then hampered by heavy falls of snow. The bad weather and saturated soil inevitably increased construction costs and by the time the line was completed these had risen to £70,000.  At that time, it was assumed that the line would eventually be extended to Oxted which was only four miles distant. An extension would, however, involve steep gradients and heavy engineering, and the it was never built.

There was a carnival atmosphere for the opening of the branch on 6 July 1881 with free travel over the branch throughout the day. The first train left Westerham at noon and was reserved for local school children and their teachers; later trains could be used by anyone. At 4.10pm a special train departed from Charing Cross carrying the VIP party which included SER Chairman Sir Edward Watkin and General Manager Myles Fenton. On arrival at Westerham, they were greeted by the Tunbridge Wells Parade Band and they proceeded to the town hall for the customary banquet and speeches.

Once the formalities and celebrations were over, the line settled down to a relatively eventless existence. An engine shed was provided at Westerham for the use of locomotives staying at the station overnight. Initially, the normal public service, which commenced the following day, ran only from Westerham to Dunton Green where passengers wishing to travel to Charing Cross (via Cannon Street) would have to change, although not all branch trains made a connection with a London service. Only stopping trains to London were available with an average journey time of 1½ hours to cover the 25¼ miles to Charing Cross.  This was not breathtakingly fast but an improvement on the three hours previously taken by stagecoach. There were 11 trains in each direction on weekdays and eight on Sundays. By the end of the year, the weekday service had improved with the addition of an extra mid-evening down train and on Wednesdays a late evening train that arrived at Westerham at 12.46am. This allowed people to spend an evening out in London departing from Charing Cross at 11.40pm. At the same time, the Sunday service was reduced to only five trains: two of those trains taken out were connecting services with two non-connecting services being retained!

Under the South Eastern Railway Act of 11 August 1881, Westerham Valley Railway Company was amalgamated with South Eastern Railway Company and formal ownership of the line was
transferred to the South Eastern Railway in August 1881.  At this time the Westerham Valley Railway Company was dissolved.

Motive power on the branch was generally provided by a Cudworth Class 118 2-4-0 dating from 1859. A number of these locos were allocated to Tonbridge shed during the period. The Cudworths were later replaced by James Stirling's Class Q 0-4-4Ts. At the turn of the twentieth century No.336 was allocated to Westerham sub-shed and generally provided the branch service.

By this time the line was well used and now had one through service to Cannon Street:  the 8.40 a.m. from Westerham.

On 1 June 1882 the Westerham Herald tells of the addition of another station on the Westerham branch line at Sundridge: ‘the fortunate inhabitants of this lucky village will soon have a station on the Westerham Valley line. We hear the South Eastern authorities have chosen a site and there will soon be active commencement of the work. The new station will accommodate a large district both for passengers and goods traffic; the Westerham people, tho’ delayed a few minutes on their journeys, will always be pleased to meet their neighbours of Sundridge.’ This station, which was to be sited at Combe Bank, was never built.

By the end of the nineteenth century the SER and London Chatham & Dover Railway had fought over a small - and not particularly lucrative - territory for 40 years. Both were notorious for the poor quality of their services and decrepitude of their stock, and the struggles had driven both companies to the verge of bankruptcy. It became inevitable that they must combine or succumb. The South Eastern & Chatham Railway (SE&CR) was formed on 1 January 1899, when the SER and LC&DR formed a ‘management committee’ comprising the directors of both companies. This merged the two companies' operations, although they remained legally separate, with receipts split 59% to SER and 41% LC&DR until the Grouping, to avoid the costs and risks of a formal merger.

Apart from the regular passenger trains, there was one goods train leaving Westerham each day, and suddenly the potential for local nurserymen to sell their produce in London’s Covent Garden Market was a reality. Other goods conveyed included beer from Westerham’s two breweries, timber, livestock and locally-made agricultural implements. The incoming goods trains brought coal and building materials that were not locally available. Westerham had its own limeworks, producing mortar, also a brick-and-tile works and a timber and coal merchant - Hortons - conveniently sited alongside the railway with extensive yards and coal bins.

The railway also aided wider distribution of the postal service. For an additional fee of 2d a letter or parcel could be carried by any passenger train leaving Westerham. The coming of the railway also brought employment, and the census for 1901 records no fewer than 23 railway employees living in Westerham alone. Apart from the stationmaster, there were 2 signalmen, 3 engine drivers, 3 engine stokers, 3 railway guards, 4 booking clerks, 1 warehouseman, 3 platelayers and 3 porters.

During the early years of the twentieth century directors of the ‘management committee’ were concerned about a proposal to extend a tramway from London along the Dover road to Gravesend and Chatham competing with the existing branch line. In order to cut running costs the SE&CR developed the steam rail-motor with eight entering service in 1904/5. The rail-motors were of the articulated type and the fairly conventional detachable engine portions were built by Messrs Kitson of Leeds. They also represented the first use of Belpaire boilers, as evidenced by the flat-topped firebox, by the SE&CR.

From April 1906 all passenger services on the Westerham branch were operated by rail-motors Nos.3 and 7; this led to the closure of the engine shed at Westerham although the ash pit and coaling facilities were retained. To coincide with the introduction of the rail-motors a new halt was opened at Chevening on 16 April 1906. At this time, the timetable was improved and the 1910 timetable shows 18 down trains and 17 up trains on weekdays (plus the late night Wednesday working) with two through workings to Cannon Street in the morning, using ordinary carriage stock. There were eight trains in each direction on Sundays.

Despite making life easier by eliminating the need to 'run round' at termini, the rail-motors were disliked especially at busy times when a single coach was totally inadequate to cope with the volume of traffic on the branch. The rail-motors were slow, and rode with a sway and they had only third class accommodation with 56 hard wooden seats. This resulted in a torrent of letters of complaint from first class businessmen and the local Tradesmen’s Association, as the service had been slowed down, and as business commuters they had lost their quality seating.

The Westerham Herald for 5 January 1907 carried this report: ‘To compete with the S.E. Railway - Oxted Station in under 12 minutes! Utterly disgusted with the present inadequate railway service between Westerham and London, and more especially with the local steam railcar service, a petition has been drawn up and has been numerously signed by users of the line in this neighbourhood, praying the company to reinstate the ordinary train.  Failing this last resource a practical solution of the difficulty is suggested, namely, a regular motor bus service between Westerham and Oxted, by which means London can be reached under an hour.’

The 'Westerham Flyer', as it was now called, had become the subject of derision: a topical verse was penned by Mr F A Williams and performed by him at the Brasted Village Concert the week previously. The short verse was entitled ‘Four Miles in Half-an-Hour’ ...
Now Brasted folk don’t mind a joke, I’m sure you’ll all agree, But a motor-train is a bit of a strain when you want to get home to tea. Tho’ Dunton Green is a lovely scene, especially in a showerit’s not your fault if at Chevening Halt your tempers getting sourchorus (twice) - Four Miles in Half-an-Hour!!Oh! that engine is a quaint old bird, the things it does are most absurd it’s impossible to love it, when you’re bundled out to shove it, it really is a quaint old bird!

The railmotors were short-lived and the branch reverted to Q class locomotives, with three-coach sets containing first, second and third class compartments.

In a further attempt to reduce running costs, the tiny P class 0-6-0T had been developed by 1909 for use on low-capacity branch lines. Although not very powerful, these locomotives were economical to run and they were able to cope adequately with short trains. No.753 was fitted for push-and-pull working when built in 1909, and it took over all the Westerham services with the locomotive marshalled between two bogie coaches. These auto-train workings lasted little longer than the rail-motors and the Westerham branch soon reverted to Q class operation again. From 1913, some of the P class returned to the branch having been fitted with a modified auto-train gear.

A significant decline in rail travel on the branch began in 1914 with the introduction of an omnibus route between Reigate, Oxted, Westerham, Brasted, Chipstead and Sevenoaks run by the East Surrey Traction Co. It is ironic to consider that the railway had killed-off the local stagecoach route from Westerham to Sevenoaks by 1882, but 50 years later, by the early 1930s motor buses from Dunton Green depot had taken almost all of the passenger travel from the railway.

In 1917, the practice of running Charing Cross trains via Cannon Street ceased but this did little to improve the general punctually of suburban services, which was, at this time appalling due to bottlenecks caused by too few tracks trying to accommodate too many trains. To try and alleviate this, a programme of electrification was proposed by the SE&CR. Stage 1 of the electrification included Charing Cross and Victoria to Orpington; and Stage 2 included Orpington to Tonbridge and the Westerham branch. This electrification by the SE&CR never came, and when electrification was eventually introduced by the Southern Railway it extended only as far south as Sevenoaks and Westerham never saw electric trains; this probably hastened the eventual demise of the line.

In 1923, the Westerham Valley Branch, together with its operators the SE&CR became part of the Southern Railway at the Grouping. Initially this made little difference to the branch.

After 1926 the Class P 0-6-0T was phased out as a passenger loco (the Q class was being scrapped too) and non-motor-fitted engines arrived to work the trains. Classes B and B1 4-4-0, and frequently the O1 0-6-0, were seen.

In September 1933, a new engine shed opened at Hither Green and it supplied all the locomotives for the branch for the next five years, with classes R and R1 locos operated in push-and-pull mode using two-coach sets that had been converted from the former SE&CR rail-motor sets.

The early years of the ‘Depression’ initially brought a cut in services in an attempt to save money. A number of trains during the middle of the day were cut out, as were the late evening trains, There were no losses to the Sunday timetable and the service was, in fact, improved somewhat with five trains running through to Orpington.  The reduction of weekday trains was, however, short-lived. The electrification of the line between Orpington and Sevenoaks came in 1934 and a new timetable came in to operation with a half-hourly service to London. The off peak trains on the Westerham branch were reinstated with an hourly off peak service connecting with alternate electric trains at Sevenoaks.

In early 1936, a Sentinel railcar was trialled on the branch. Authorised by Richard Maunsell of the Southern Railway, the railcar was new in 1933 and appears to have been yet another attempt to provide economies of operation in that its design went further than the more familiar LNER and LMS Sentinel railcars. Construction was ultra-lightweight and tare weight is thought to have been in the region of a mere 11 tons – much the same as a modern double-decker bus. Obviously lightweight construction went hand-in-hand with structural strength. As was usual with Sentinel railcars, construction was by Metropolitan Cammell with Sentinel supplying the running gear, boiler etc. As a one-off, it must have been an expensive project for Metropolitan Cammell and indeed the Southern Railway. Further orders, which must have been hoped for, did not materialise. Drawings of the railcar have survived and the interior layout suggests it was designed for one man operation. A driver's seat was provided at both ends and the boiler was fitted with an automatic stoker and crusher. At the trailing end, the driver sat in what could be described as a combined cab and luggage compartment. Seating was provided for 44 passengers, access being by single-leaf sliding doors, presumably hand operated, located centrally on each side of the body and leading into a small vestibule. The boiler was the standard Sentinel vertical type, automatic stoker excepted, and the engine was Sentinel's familiar 2-cylinder type.

The railcar was designed for use on the Devils Dyke branch near Brighton, but it could not cope with the steep gradients and the brakes were inadequate for the return journey. On 2 March 1936 it was transferred to the London East Davison where it was given a second opportunity to prove itself on the relatively flat Westerham branch. To work the branch, the Sentinel would come up on the 7.23 am Tonbridge to Dunton Green and take over from the push-and-pull then, at 2.12 pm it would run back in traffic to Tonbridge for servicing. Branch trains in the afternoon would once again be in the hands of an R1, then at 5.00 pm the Sentinel would work 'passenger' back from Tonbridge to Dunton Green to work Westerham services for the rest of the evening, helped out by an R1 during the tea-time rush when two trains were required on the branch. The Sentinel was unreliable and it was even less popular than the rail-motors, and its stay on the Westerham branch was short with the line reverting to the trusted R1s within a few months.

In June 1938 Tonbridge shed once again took over the workings on the branch. These continued to be Class R1 which in 1939 were supplemented by class R locomotives. The 1938 timetable had 21 trains in each direction on Monday to Friday with 21 on Saturday and an additional late down service on Wednesday. On Sundays there were 18 down and 17 up trains.

During WW2, all railways were put under government control from 1 September 1939, and the mass evacuation of London's children was put into practice. Although 7,000 evacuees arrived at Sevenoaks the branch had no part to play as they were taken on to their final destinations by bus.  In fact the war had little effect on the branch. From 11 September a new timetable came into operation which saw the branch service drastically reduced but a week later, on 18 September, the pre-war service was reinstated on Monday to Friday. Apart from the withdrawal of some cheap fares and the conversion of first class compartments to third, little else changed.

The Southern Railway was nationalised on 1 January 1948 and became the Southern Region of British Railways. The 1950 branch timetable had 22 down trains on Monday to Friday with 20 on Saturday. There were also 22 up trains but only 21 on Saturday, which was much the same as the pre-war service but without the additional late night service on Wednesday. The Sunday service was somewhat reduced with 15 down and 14 up trains.

In around 1952 Class H 0-4-4T locomotives began operating the branch service and would continue to do so until its closure, together with the R and R1s until the last of these was withdrawn in 1956.

During the 1950s, the line began to suffer competition with buses, notably the 403 route which ran from Croydon via Sanderstead, Chelsham and Westerham to Sevenoaks, and as train fares rose dramatically from 1938, passenger numbers fell. In order to save running costs BR decided to work the line on the ‘one-engine-in-steam’ principle, using a miniature train staff under the control of the Dunton Green signalman. Brasted joined Chevening in becoming an unstaffed halt, and from 13 June 1955, there would no longer by any trains in the slack periods, although a Sunday service was retained during the summer months only. The branch thus became a ‘commuter line’ with Sunday being the only day of the week with a service throughout the day.

Unusually, the Westerham branch was not a regular destination for railtours in the 1950s but there was one, organised by the Inter-regional Ramblers' on 10 November 1957. The ‘Kentish Heights Special' ran from Greenford calling at all stations on the branch. It was scheduled to be hauled by the revived GWR 4-4-0, 'City of Truro' but on the day, it was hauled by Wainwright Class 0-1 No.31064. There was also a BR excursion from Kensington Olympia on 15 January 1957 but passengers for Westerham had to use the normal branch service from Dunton Green.

In February 1956 the Kent Coast Electrification scheme was approved. Once completed, this would leave the branch as an isolated steam-operated adjunct of a modernised main line. Despite the operating economies that had been instigated in 1955 the line was reported to be losing £11, 600 per annum. BR made no attempt to investigate further ways of cutting costs and closure was announced in April 1960.  On 12 June 1961, scheduled electric services commenced via the ex-SER route to Dover (although the full electric timetable did not commence until 18 June 1962). Despite this, the Westerham line continued to operate, but the end was inevitable.

The Central Transport Users' Consultative Committee argued against this move, claiming that 200 passengers per day used the line. They recommended that it should remain open to avoid the hardship closure would cause to commuters. This advice was rejected by the Minister of Transport, Ernest Marples, and it was announced that the last day of operation of the line would be Saturday 28 October 1961. He later also rejected a petition against closure signed by almost 2,500 local inhabitants and presented by the MP for Sevenoaks, John Rodgers. The Minister claimed that service was losing £26,000 per year which was equivalent to £150 per passenger.

Mr Rogers later suggested that the real reason for allowing the closure was to facilitate the construction of a South Orbital road (M25) running along its course. The Parliamentary Secretary was quick to refute this suggestion stating:  ‘When we had our talk on 13 September about the closure of the Westerham - Dunton Green line you mentioned to me a current rumour that the Minister might have been influenced in reaching his decision by the possibility that certain proposed road improvements could be more economically carried out if the line were closed. I have made careful enquiries and I can assure you that any such suggestion is unfounded. The line of the road has not yet been fixed, and the Minister has not authorised any detailed survey.’

The final day dawned bright and sunny with large numbers of enthusiasts and photographers arriving at Dunton Green for a last opportunity to travel on the branch. Morning trains were worked by Class H 0-4-4T No.31518 with the usual two-coach push-and-pull set. The locomotive was adorned with a Union Jack, and the inscription ‘Flyer 1881-1961’ was chalked on the smokebox. To cope with the high demand, BR put on a 6-coach corridor train from early afternoon worked by Class D1 4-4-0 No.31739. The last trains of all were the 7.23 pm Westerham to Dunton Green and the 7.50 pm Dunton Green to Westerham. At Westerham, squibs and bangers were ignited, the signal cabin was swamped with visitors, and passengers for the 7.23 pm were wandering along the track to reach the coaches, the platform being too short for the 6-coach train, which was being worked by Class Q1 0-6-0 No.33029.

To compensate for the closure of the line, London Transport was to run additional buses on route 403. There were five extra journeys from Westerham to Sevenoaks between 6.0 am and 9.0 am; and six extra buses between 5.0 pm and 8.0 pm from Sevenoaks to Westerham.

In 1962, the Westerham Valley Railway Association, born of a merger between two local interest groups, the Westerham Branch Railway Passengers' Association and the Westerham Valley Railway Society, began to investigate the possibility of reopening the line, staffed by volunteers, for commuters on weekdays with diesel railcar service and as a heritage railway at weekends between April and October using steam haulage. British Railways offered the ownership of the line for £30,000 on the basis that a commuter service would be provided, thereby allowing it to cease its subsidies of the 403 bus services which were now over-subscribed following the closure of the Westerham branch. In July 1962, British Railways granted a lease of Westerham station building, which became the headquarters of the Association. A lease of Brasted Station was also later agreed.

In October it was revealed that railway author and publisher Ian Allan was interested in operating the line through a management committee on which the WVRA would be represented. This company would then form part of his group of companies. He later withdrew his support when his planning application for a petrol station adjacent to Westerham station was turned down.

British Railways were later to change their policy regarding the disposal of disused branch lines and, as they had done with the Bluebell Railway, were no longer prepared to simply lease the line to a private operator. Instead, they now required an outright sale of the line to the Association for £53,000. Thanks to the help of an anonymous backer, the Association was able to put forward an offer of £30,000 for the track, buildings, land and branch platform at Dunton Green. British Railways accepted this offer subject to the condition that a commuter service is provided, thereby enabling it to cease its annual subsidy of £8,700 towards the additional bus services laid on following the line's closure.

The withdrawal of Ian Allan cast serious doubt on the proposed reopening. In the Association's Annual General Meeting on 2 November 1963, members were informed that efforts to raise the £30,000 plus £10,000 for equipment had failed. Furthermore, British Railways were now in talks with Kent County Council regarding the sale of the line to enable the construction of the proposed orbital motorway - what would later become the M25 motorway.

More positive news was received in November 1963 when it was revealed that not only had a new backer been found, but also that terms were agreed with British Railways for the sale of the land to the Association. However, one month later Kent County Council contacted the Association and informed them that the Council's intended purchase of the land would save taxpayers the sum of £120,000 and, furthermore, that in the event British Railways were unwilling to sell the land to the council, as had been intimated, compulsory purchase powers would be used. Faced with the prospect of a compulsory sale, British Railways now broke off negotiations with the Association and agreed to sell the line to the Council.

However, in April 1964, the Council indicated their willingness to lease the line to the Association, thereby ensuring its continued existence if the Association were to come up with the cost of constructing a bridge over the railway cutting at Chevening to enable the new road to cross it. The cost of this bridge was estimated by the Council at £14,000, added to which was the annual rent of the line of £3,000. The estimate of £14,000 was revised upwards in August 1964, to a figure of £26,215 (equivalent to £490,714 in modern currency) which was to be paid by 24 August; otherwise works would commence to infill the cutting at Chevening.

In the meantime, the purchase of several former Metropolitan Railway coaches and a Class H 0-4-4T locomotive No.31263 had been agreed and they were awaiting collection. Initially, British Railways had allowed the stock to be stored at Dunton Green, but since the intervention of the Kent County Council, it became reluctant to allow this and threatened to scrap the stock were it not collected. The coaches were loaned and later sold to the Keighley & Worth Valley Railway and the locomotive to the Bluebell Railway where it remains today.

By November 1964 the funds to construct the bridge had still not been found and, following the infilling of the Chevening cutting, the Association realised that their plans to reopen the line could no longer be realised. This was notwithstanding intervention by the MP for Faversham, Terence Boston, who unsuccessfully attempted to persuade the new Labour Minister of Transport, Tom Fraser, to hold an enquiry into the County Council's plans to convert the line into motorway.

In autumn 1965, the Association merged with the Kent & East Sussex Railway Preservation Society. The remaining track was lifted that year and Westerham station building was demolished in 1966. Works on the section of the M25 from Sundridge Road to Westerham commenced in December 1976 and were completed in December 1979.

Some sections of the line still remain today and it is possible to walk from Dunton Green as far as the site of Chevening Halt. Two slip roads of the M25 (Junction 5) cut across the Westerham branch just to the west of the halt. Then the course of the branch is clearly defined for 100yd until the motorway curves round from the north and onto the trackbed. The railway and motorway then follow a similar course until the outskirts of Westerham where the motorway swings away to the north to avoid the town. The railway swings across the motorway several times: sometimes it is on the north side and sometimes on the south, but for all of this length the course has been obliterated by the motorway works. Once the motorway and railway diverge on the outskirts of Westerham the course of the line can once again be regained initially as a low embankment then on the west side of Beggars Lane, a path along the edge of a field as far as Madan Road where the route is lost under back gardens. The site of Westerham station and goods yard is now covered by industrial units along a road known as 'The Flyers Way'.

On 29 and 30 October 2011 the Westerham Branch came alive again to celebrate the 50th anniversary of its closure in 1961. Volunteers at the Spa Valley Railway, operating between Eridge and Tunbridge Wells, changed the names of the stations from Eridge to Dunton Green, Groombridge to Brasted Halt, High Rocks to Chevening Halt and Tunbridge Wells to Westerham.

The ‘Westerham Flyer’ operated, and additional shuttle services ran from Eridge to Groombridge. Special tickets were made for the event (one is seen above) and visitors were also treated to information on the branch line, as well as a model railway set and video footage. Click here for some pictures.

FILMS:

Bradshaw from Nick Catford. Route map drawn by Alan Young. Tickets from Michael Stewart, Brian Halford & Martin Foley. WVRA leaflet and newsletter from Martin Foley. Horton adverts from Bill Curtis

Special thanks to Westerham social historian Bill Curtis for his invaluable help with information during the preparation of this feature. Some short sections of text has been reproduced from Bill's book listed below. Thanks also to Darren Kitson for writing most of the captions.

Click here to download the Westerham Valley Railway Association Newsletter No 2 'The Westerham Flyer' May 1963

Click here to download the Westerham Valley Railway Association Newsletter No 3 'The Westerham Flyer' August 1963

Click here to download Westerham Valley Railway by GT Black 1962. Published by the WVRA

Click here to download B Horton's illustrated fencing catalogue c1914. Includes loading siding.

Click here to see Adrian Prime's excellent model of Westerham station and goods yard. (62 pictures)

SOURCES:

To see stations on the Westerham branch
click on the station name:
Brasted Halt, Chevening Halt & Dunton Green


Westerham Station Gallery 1 c1900 - 1903


This photograph from around the turn of the twentieth century shows (James) Stirling 0-4-4T No.136 in South Eastern & Chatham Railway livery. These locomotives began life in 1881 as Class Q but many were rebuilt as Class Q1 (not to be confused with the much later Bulleid Q1), the main change being the fitting of a Wainwright boiler which was pitched higher and thus necessitated a shorter chimney. The visual differences between the Q and Q1 were immediately obvious. No.136, which dated from 1892, was in Q form when photographed. It is not known if No.136 was one of those eventually rebuilt and the type in either form had vanished by 1929. Other details in the photograph are known. The driver, centre, was Mr John William Smith who began his railway career as a porter at Tonbridge before, census records suggest, moving to live at Westerham to become one of the first drivers on the branch and probably when newly promoted. Driver Smith died in 1919. His great-grandson informs us that the photograph hung for many years in the sitting room of 46 Madan Road, Westerham, which was the stationmaster's house and was owned by the SE&CR. These details together with the passage of time have led to the belief that the photograph was taken at Westerham, but there are a number of uncertainties. The carriage appears at first glance to be a 'birdcage' vehicle but these were all either brake-end vehicles or full brake types and the carriage seen above is certainly not a full brake. Although the entire length of the carriage being out of view (it appears to have either a central luggage compartment or a lavatory), it does not appear to be a brake-end either. The 'birdcage' itself also appears wrong for the SE&CR and is seemingly wrongly positioned on the carriage roof. It is therefore not unreasonable to suggest the 'birdcage' is not that at all but some other structure, such as a water tower, standing behind the train. If this is the case, the location is not Westerham. It should be remembered that although driver Smith's main duties would have been on the Westerham branch, he would have had route knowledge permitting him to work beyond Dunton Green. This would have included Tonbridge and Sevenoaks, which would have been his 'home' shed with Westerham merely being an outstation, and other routes in the area. Tonbridge shed took over responsibility for the Westerham branch at some point in the line's history. If any reader is able to provide any definite information on the aforementioned puzzles we would be most grateful. Some images of 'birdcage' stock can be seen here for comparison with the above image and also here at the Bluebell Railway website. The Bluebell also has a surviving 6-wheel full brake, the 'birdcage' on which does have some similarity to that seen in the above image.
Photo M Bashford

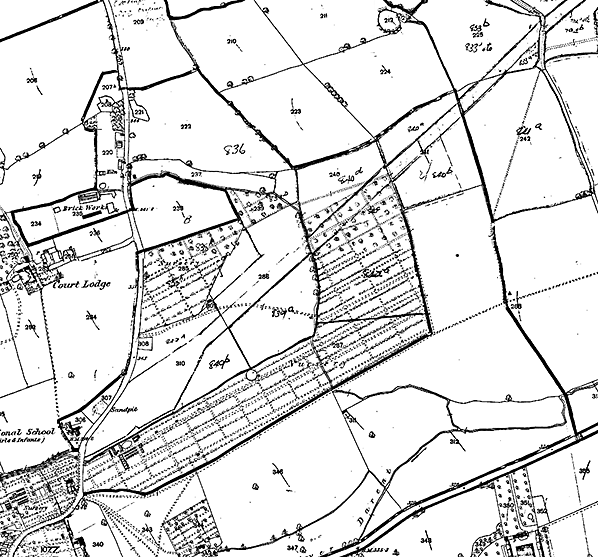

1872 1:2,500 OS map (1869 survey). This map predates the railway but its course and the site of the station and goods yard are marked on the map although no construction work has started. The buildings to the south of the goods yard site are greenhouses and outbuildings for the nursery, which was the largest in the town. Horton's timber yard arrived in 1870, a year after the survey. A sandpit is shown where the Crown Hotel would be built a few years later.

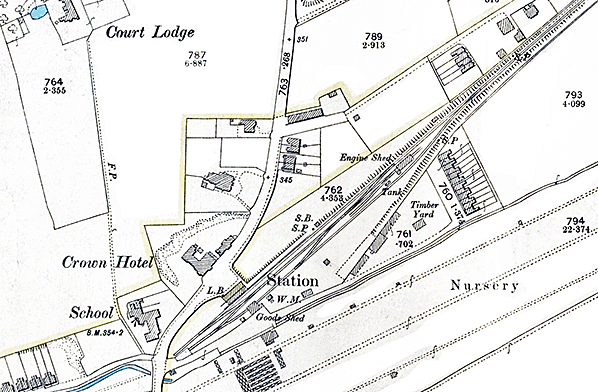

1895 1:2,500 OS map shows the railway as built. The station forecourt is seen opposite the Crown Hotel. LB indicates a letterbox. The short platform is shown with the signal box and signal at the north end. The main line continues south-west to terminate beside the station's unusually small cattle dock. A run-round loop is seen opposite the station building. At this time there is only one goods siding which passes though the goods shed opposite the station building to terminate end-on to the dock. Between the shed and the dock there is a crossover which joins the siding with the run-round loop. A trailing junction on the siding leads to the engine shed with the water tank named beside the shed road. Horton's timber yard is seen to the south of the station with Horton's Cottages (later Railway Terrace) to the east of the yard. A weighbridge and office (WM = weighing machine) is seen just inside the entrance to the goods yard. Madan Road is seen running east from London Road to the north of the line with a terrace of houses at right angles to the road. Two further signal posts are shown, one top right on the approach to the station and the 'shunt' signal alongside the siding.
Click here for a larger version of this map

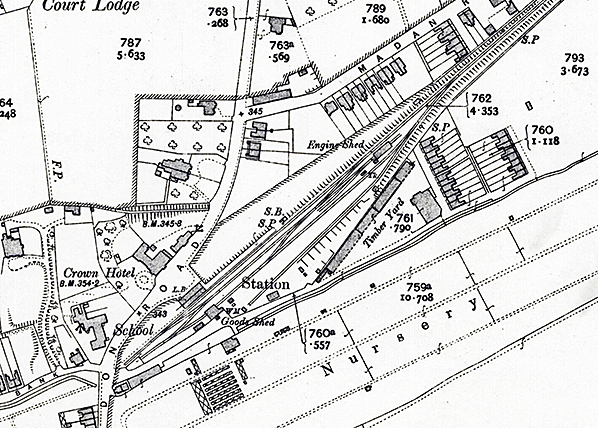

1909 1:2,500 OS map. Around the turn of the twentieth century a second siding was added to serve a coal depot; a long line of coal bins is seen alongside. To coincide with the arrival of the new coal siding coal and timber merchant Benjamin Horton opened an office on London Road in 1903 at the junction with the access road to the yard. The office is seen bottom left together with a number of other buildings with no railway connections. Horton's timber yard is behind the coal bins. At the east end of the line of buildings in the timber yard is a warehouse belonging to A E Barton Ltd, Miller, Corn, Coal and Coke Merchant. The new building to the west of the goods shed is a grain store for A E Barton Ltd. A second terrace of cottages has been built adjacent to Horton's Cottages. On the north side of the line, the terrace of houses at right angles to Madan Road has been extended to the south. The house closest to the railway line (No.46) was purchased by the SE&CR as accommodation for
the Westerham stationmaster.
Click here for a larger version of this map.

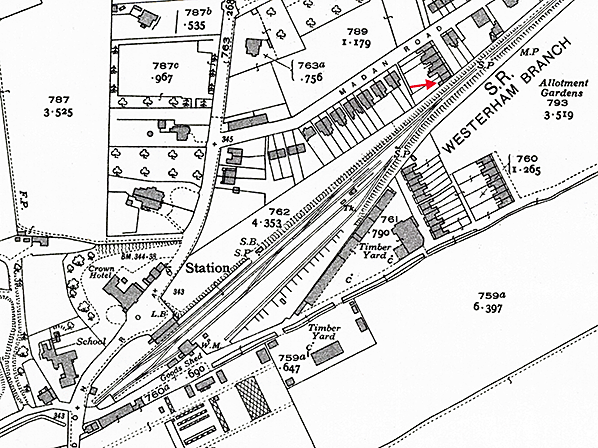

1939 1:2,500 OS map. By this date the engine shed had been demolished with only its low brick base remaining either side of the shed road. The letter box in the station forecourt has been relocated to the other end of the station building. The stationmaster's house is indicated.
Click here for a larger version of this map.

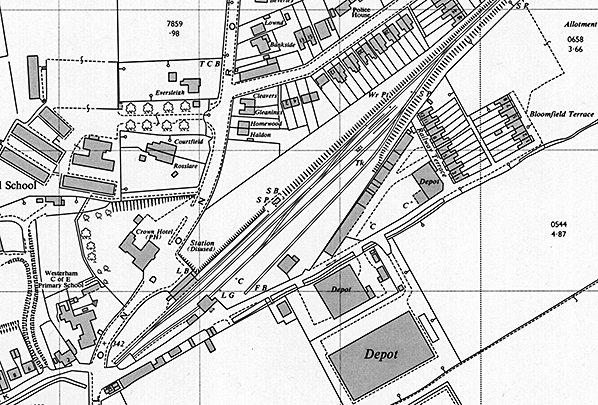

1964 1:2,500 OS map. The station is now shown as 'disused' but little else appears to have changed from the previous map. The crossover to the west of the goods shed has been lifted and the coal bins adjacent to the shorter siding have gone. The goods yard crane (C) and loading gauge (LG) are marked for the first time on the north-east side of the goods shed. Also shown is a watering point (Wr Pt) at the end of the shed road. Click here for a larger version of this map.

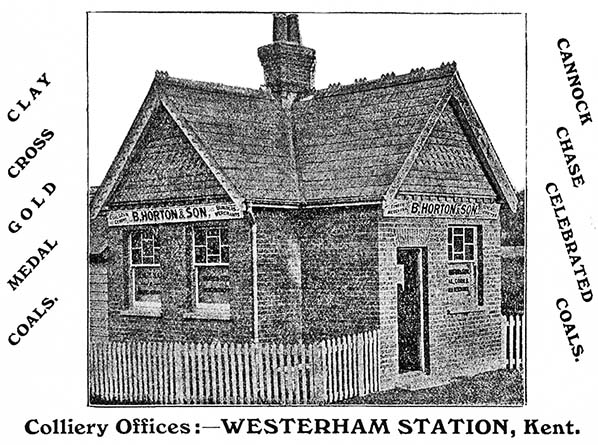

Benjamin Horton's coal office at the junction of what is now Hortons Way and London Road, shortly after it opened in 1903. The building still stands and in recent years has incorrectly been named 'Station House' although it was never used as a house by the stationmaster. Today the building is used as a beauty salon called Beauty Spot.
Photo from Bill Curtis collection
