Station Name: DUNTON GREEN
(Westerham branch platform)

[Source: Nick Catford]
Date opened: 3.7.1881 (Branch platform)
Location: End of Station Approach
Company on opening: Westerham Valley Railway
Date closed to passengers: 30.10.1961
Date closed completely: 2.4.1962 - sidings reopened for aggregate traffic between 27.7.1965 and 22.7.1972
Company on closing:

British Railways (Southern Region)

Present state: Branch platform demolished, embankment is overgrown and inaccessible. The subway under the embankment at the south end of the branch platform is still in use. Beyond the subway new housing has encroached onto the embankment.
County: Kent
OS Grid Ref: TQ514575
Date of visit:

April 1974 and April 2014

Notes: The South Eastern Railway main line between London Bridge and Dover opened in stages with the final section between Folkestone and Dover opening on 27 January 1844. In May 1862, authorisation was obtained to construct a new railway from St Johns (near Lewisham) to Tonbridge. This 'cut-off' line, 24 miles in length, reached Chislehurst & Bickley Park on 1 July 1865 and was extended to Orpington, Sevenoaks and Tonbridge opening to freight in February 1868, and to passengers on 2 March 1868. One of the intermediate stations on the extension was Dunton Green & Riverhead which opened with the line.

The station comprised two facing platforms with the main building on the up (west) side at the end of a long approach road. A large waiting shelter was provided opposite on the down side. The main single-storey building was of timber construction on a low brick base with the walls of tongue-and-groove (known locally as Kentish Clapboard) timber beneath a pitched slate roof with two chimneystacks. A flat canopy stretched the full length of the building and the full width of the platform. The waiting shelter comprised a canopy supported on a clapboard back with closed-in ends for additional weather protection; the shelter was the same length as the main station building. Both canopies had a deep fretted valance. At this time the station was not provided with a footbridge or signal box.

Goods facilities at the station were very basic with a single siding trailing off the up line and running behind the up platform and terminating level with the building. Wreford's private siding trailed into a network of standard gauge lines in the Dunton Green Brick & Tile Works (opened 1862) from the down main line to the south of the station. By the first decade of the twentieth century the sidings has been cut back but the internal standard gauge line remained in use till 1927. After that the siding was further cut back to a single short line into the works. There was no interchange with new internal narrow gauge lines. By the 1950s, the siding served a cold storage depot; the siding closed in 1957 but there is still a cold storage depot on the site trading as West Kent Cold Storage.

On 1 July 1873, the station name was shortened to Dunton Green. On 3 July 1881 Dunton Green became a junction station with the opening of the 4¾-mile Westerham branch which necessitated numerous changes and improvements at the station. The earlier goods siding became the through line to Westerham where a curved branch platform was built on the west side of the station forecourt. The new platform was provided with a long waiting shelter similar in design to that on the down platform; there was a small staff room at the north end of the shelter. There was a run-round opposite the platform. In later years at least, although through running up to Orpington was possible, a down train from the main line to Westerham would have to run into the down main platform and set back over the crossover.

Substantial earthworks were required to widen the embankment to the west of the approach road to create a new goods yard with two sidings parallel to the main line; in the first decade of the twentieth century a third parallel siding was added. Goods facilities at the station were confined to the handling of general goods and parcels. The yard handled no livestock and was not provided with a dock. A small timber goods shed or 'lock-up' was provided at the back of the branch platform with access from the platform. The station was, at this time, lit by gas with Sugg's Windsor pattern casements on barley-sugar twist standards. A two-storey house for the stationmaster was built to the south of the goods sidings around the turn of the twentieth century; it was reached from the station approach road.

During the improvements to the station, the down platform remained largely unaltered but on the up platform the canopy was doubled in length bringing its north end in line with the canopy on the branch platform. A covered footbridge was at last provided following safety concerns from the Board of Trade; it was sited at the north end of the lengthened canopy. At this time, Dunton Green got its first signal box. It was an unusually tall three-storey all timber box built by Stevens & Sons just beyond the north end of the up platform. A box of that height was required to give signalmen a good view of the line without being obstructed by the footbridge.

At the south end of the branch platform there was a coal store and, beyond that, covered steps down to a subway under the branch line linking the station forecourt with a footpath to London Road.

Further improvements were made to the station in the first few years of the twentieth century as part of a general programme of modernisation and upgrading of the SE&CR's commuter network. This involved quadrupling and re-signalling of the line between St Johns and Orpington. As part of this programme, the Dunton Green signal box was abolished and replaced with a standard two-storey 50-lever SE&CR box based on a Saxby & Farmer design and located beyond the north end of the down platform opposite. Because of its position on the far side of the main line, the signalman had to cross the main lines repeatedly with the single line tablet. To overcome this, an unusual system of cables and pulleys was devised for transporting the tablet from the signal box to an elevated stage reached by wooden steps at the north end of the branch line platform. A new lattice covered footbridge was also provided at this time; it came from Grove Park station which had been completely rebuilt as part of the modernisation programme.

Little else happened at the station until the Southern Railways electrification of ex-SE&CR suburban lines reached Dunton Green in the 1930s. Prior to electrification, the down platform was extended southwards using prefabricated concrete panels; the 1963 map reproduced below shows both platforms extended. The old 'aerial ropeway' was dismantled in autumn 1934 as it was feared that if the metal cable broke it could drop onto the live third rail causing a short circuit. It was replaced with auxiliary tablet instruments on the branch platform. During the electrification works the gas lamps were replaced with the relatively little-known Suggs 'Littleton' type. Like the more familiar 'Rochester' lamp, the ‘Littleton’ was designed to cast shadowless light downwards. The electric service commenced through Dunton Green to Sevenoaks on 6 January 1935.

A number of changes were made by British Railways. By 1960 the fretted valances on the main line platforms had been replaced with plain valances but the canopy on the branch platform remained unaltered, presumably as it was clear that the branch had no future. The footbridge lost its roof and glazing at the same time. Southern Railway 'target' signs were replaced with BR Southern Region totems in the latter half of the 1950s. Two styles of fully flanged totems are known to have existed at Dunton Green: some were dark green with a black flange others were mid green with a white flange. Both types are illustrated here.

The branch line closed on 28 October 1961. Goods traffic continued to use the branch to reach the goods yard until 2 April 1962 when the yard closed. The track remained in situ until 1965 while British Railways negotiated with the Westerham Valley Railway Association which was hoping to buy the track and operate a commuter and weekend tourist service. During this period, BR allowed the WVRA to store rolling stock at Dunton Green. BR accepted an offer of £30,000 for the line and buildings including the branch platform at Dunton Green. However it soon became clear that the WRA could not raise sufficient funds and BR withdrew permission to use Dunton Green and threatened to scrap the stock were it not collected. The coaches were loaned and later sold to the Keighley & Worth Valley Railway and a Class H locomotive to the Bluebell Railway where it remains today. The track was lifted in 1965 although the sidings were reinstated on 27 July 1965 to handle aggregate traffic in connection with the local programme of road building. The sidings were eventually closed on 22 June 1972 and their removal was the last traffic to traverse any part of the Westerham branch.

The majority of the buildings at Dunton Green were demolished in 1968 and replaced by two CLASP (Consortium of Local Authorities Special Programme) shelters. These are pre-fabricated steel-framed modular 'bus' shelters which had been developed for schools in Hertfordshire in the 1950s. At this time, the up platform building, complete with canopy, was retained alongside the new shelter. The branch line platform and buildings were demolished although the subway under the embankment, complete with its brick surround and roof, was retained unaltered and is still in use today. As an economy measure the station was partially unstaffed in 1971 with the ticket office opening only during the morning and evening peaks covered by one man on a split shift. With the withdrawal of staff, vandalism quickly became a problem and the station building had to be boarded up; but it was soon covered in graffiti.

Dunton Green signal box closed on 2 August 1973 with its functions being transferred to the power box at Sevenoaks. The station became totally unstaffed in the early 1990s. The 1868 station building, which was by now devoid of its canopy, survived until the mid 1990s. A new housing development known as The Sidings was built by Barratt Homes on the site of the goods yard in 2005. It is reached from Station Approach. The stationmaster's house still stands in private occupation adjacent to the main line to the south of the station and also reached from Station Approach.

Today train services are provided by Southeastern. There is no ticket office or ticket machine. There is a PERTIS 'permit to travel' machine which is located at the entrance to the up platform. An electronic display of departures is installed but there is no audio messaging. A small car park at the end of the approach road can accommodate about 20 cars.

The typical off-peak service from the station is two trains per hour southbound to Sevenoaks and two trains per hour northbound to Charing Cross, calling at all stations to Hither Green and then running fast to London Bridge. The typical peak service from the station is one train every 20 minutes southbound to Sevenoaks, but some services go through to Hastings (via Tunbridge Wells). One train every 20 minutes travels northbound to Cannon Street, calling at all stations to Grove Park and then running fast to London Bridge.

During the morning peak there is a connecting fast service at Chelsfield to enable Dunton Green passengers to travel to London Bridge, Waterloo East and Charing Cross. There are similar services in the evening peak going towards Tunbridge Wells. Passengers can alight from this service at Chelsfield and catch a connecting service to Dunton Green.

BRIEF HISTORY OF THE WESTERHAM BRANCH
The South Eastern Railway first obtained powers to build a branch line to Westerham in 1864. These were renewed in 1867 and again in 1870 but, when no work was undertaken, a group of local businessmen and landowners took matters into their own hands in 1876 by promoting a parliamentary Bill for the construction of a branch line to their town. At that time, the closest railheads were at Edenbridge, four miles to the south, and Sevenoaks, five miles to the east. One of the prominent local promoters was wealthy landowner William Tipping who underwrote a substantial part of the £50,000 required to promote the Bill. Tipping was a director of the London & North Western Railway.

The route was similar to that first proposed by the South Eastern Railway in 1864 and would be built in two stages with the line running from a junction with the SER at Dunton Green (opened 1868) to Westerham via Brasted. The second stage of construction would see the line extended to a junction with the Croydon & Oxted Railway at Oxted. The  C&OR was a joint venture between the LB&SCR and the SER and was, at this time, under construction using the partially constructed trackbed of the abandoned Surrey and Sussex Junction Railway.

The SER opposed the extension to Oxted and, if it was built, they refused to have anything to do with the line. To avoid antagonising them, the fledgling company withdrew the second stage of their scheme in return for an agreement with the SER to provide the rolling stock and work the line for 50% of gross receipts with a minimum of £2,500 per year being guaranteed by the Westerham Valley directors. With this agreement in place, the Westerham Valley Railway Bill was put before Parliament in the session beginning 22 March 1876.

The directors had appointed Westminster-based John William Grover as engineer.  Grover was responsible for several notable buildings in London, and railway lines in England, Wales, Mexico and Venezuela. He reported to Parliament that the Westerham branch would be four miles forty-five chains in length (4¾ miles), with the steepest gradient of 1 in 70 and the most severe curve 18 chains in radius. He estimated the cost at £46,358. The Bill was passed with only one objection being received and the Westerham Valley Railway Company was incorporated by an Act of 24 July 1876.

Having received parliamentary consent for the construction of the branch nothing happened until 25 June 1879 when the SER agreed to take on the construction and maintenance of the line as well as the operation.  Charles Chambers was appointed as contractor and construction was finally underway in October 1879.

Having left the SER's Sevenoaks line at Dunton Green, the single-track branch followed a fairly straight course to Westerham with one intermediate station at Brasted. The bridges carried over the line were constructed with an additional arch for a second track if required, but none of the earthworks or other bridges had this provision. Westerham station was typical of other SER stations built at this time of and was provided with wooden buildings to keep costs and construction time to a minimum.

Despite unusually bad weather slowing work in the autumn of 1880, by the following February construction was in an advanced state but was then hampered by heavy falls of snow. The bad weather and saturated soil inevitably increased construction costs and by the time the line was completed these had risen to £70,000.  At that time, it was assumed that the line would eventually be extended to Oxted which was only four miles distant. An extension would, however, involve steep gradients and heavy engineering, and the it was never built.

There was a carnival atmosphere for the opening of the branch on 6 July 1881 with free travel over the branch throughout the day. The first train left Westerham at noon and was reserved for local school children and their teachers; later trains could be used by anyone. At 4.10pm a special train departed from Charing Cross carrying the VIP party which included SER Chairman Sir Edward Watkin and General Manager Myles Fenton. On arrival at Westerham, they were greeted by the Tunbridge Wells Parade Band and they proceeded to the town hall for the customary banquet and speeches.

Once the formalities and celebrations were over, the line settled down to a relatively eventless existence. An engine shed was provided at Westerham for the use of locomotives staying at the station overnight. Initially, the normal public service, which commenced the following day, ran only from Westerham to Dunton Green where passengers wishing to travel to Charing Cross (via Cannon Street) would have to change, although not all branch trains made a connection with a London service. Only stopping trains to London were available with an average journey time of 1½ hours to cover the 25¼ miles to Charing Cross.  This was not breathtakingly fast but an improvement on the three hours previously taken by stagecoach. There were 11 trains in each direction on weekdays and eight on Sundays. By the end of the year, the weekday service had improved with the addition of an extra mid-evening down train and on Wednesdays a late evening train that arrived at Westerham at 12.46am. This allowed people to spend an evening out in London departing from Charing Cross at 11.40pm. At the same time, the Sunday service was reduced to only five trains: two of those trains taken out were connecting services with two non-connecting services being retained!

Under the South Eastern Railway Act of 11 August 1881, Westerham Valley Railway Company was amalgamated with South Eastern Railway Company and formal ownership of the line was
transferred to the South Eastern Railway in August 1881.  At this time the Westerham Valley Railway Company was dissolved.

Motive power on the branch was generally provided by a Cudworth Class 118 2-4-0 dating from 1859. A number of these locos were allocated to Tonbridge shed during the period. The Cudworths were later replaced by James Stirling's Class Q 0-4-4Ts. At the turn of the twentieth century No.336 was allocated to Westerham sub-shed and generally provided the branch service.

By this time the line was well used and now had one through service to Cannon Street:  the 8.40 a.m. from Westerham.

On 1 June 1882 the Westerham Herald tells of the addition of another station on the Westerham branch line at Sundridge: ‘the fortunate inhabitants of this lucky village will soon have a station on the Westerham Valley line. We hear the South Eastern authorities have chosen a site and there will soon be active commencement of the work. The new station will accommodate a large district both for passengers and goods traffic; the Westerham people, tho’ delayed a few minutes on their journeys, will always be pleased to meet their neighbours of Sundridge.’ This station, which was to be sited at Combe Bank, was never built.

By the end of the nineteenth century the SER and London Chatham & Dover Railway had fought over a small - and not particularly lucrative - territory for 40 years. Both were notorious for the poor quality of their services and decrepitude of their stock, and the struggles had driven both companies to the verge of bankruptcy. It became inevitable that they must combine or succumb. The South Eastern & Chatham Railway (SE&CR) was formed on 1 January 1899, when the SER and LC&DR formed a ‘management committee’ comprising the directors of both companies. This merged the two companies' operations, although they remained legally separate, with receipts split 59% to SER and 41% LC&DR until the Grouping, to avoid the costs and risks of a formal merger.

Apart from the regular passenger trains, there was one goods train leaving Westerham each day, and suddenly the potential for local nurserymen to sell their produce in London’s Covent Garden Market was a reality. Other goods conveyed included beer from Westerham’s two breweries, timber, livestock and locally-made agricultural implements. The incoming goods trains brought coal and building materials that were not locally available. Westerham had its own limeworks, producing mortar, also a brick-and-tile works and a timber and coal merchant - Hortons - conveniently sited alongside the railway with extensive yards and coal bins.

The railway also aided wider distribution of the postal service. For an additional fee of 2d a letter or parcel could be carried by any passenger train leaving Westerham. The coming of the railway also brought employment, and the census for 1901 records no fewer than 23 railway employees living in Westerham alone. Apart from the station master, there were 2 signalmen, 3 engine drivers, 3 engine stokers, 3 railway guards, 4 booking clerks, 1 warehouseman, 3 platelayers and 3 porters.

During the early years of the twentieth century directors of the ‘management committee’ were concerned about a proposal to extend a tramway from London along the Dover road to Gravesend and Chatham competing with the existing branch line. In order to cut running costs the SE&CR developed the steam rail-motor with eight entering service in 1904/5. The rail-motors were of the articulated type and the fairly conventional detachable engine portions were built by Messrs Kitson of Leeds. They also represented the first use of Belpaire boilers, as evidenced by the flat-topped firebox, by the SE&CR.

From April 1906 all passenger services on the Westerham branch were operated by rail-motors Nos.3 and 7; this led to the closure of the engine shed at Westerham although the ash pit and coaling facilities were retained. To coincide with the introduction of the rail-motors a new halt was opened at Chevening on 16 April 1906. At this time, the timetable was improved and the 1910 timetable shows 18 down trains and 17 up trains on weekdays (plus the late night Wednesday working) with two through workings to Cannon Street in the morning, using ordinary carriage stock. There were eight trains in each direction on Sundays.

Despite making life easier by eliminating the need to 'run round' at termini, the rail-motors were disliked especially at busy times when a single coach was totally inadequate to cope with the volume of traffic on the branch. The rail-motors were slow, and rode with a sway and they had only third class accommodation with 56 hard wooden seats. This resulted in a torrent of letters of complaint from first class businessmen and the local Tradesmen’s Association, as the service had been slowed down, and as business commuters they had lost their quality seating.

The Westerham Herald for 5 January 1907 carried this report: ‘To compete with the S.E. Railway - Oxted Station in under 12 minutes! Utterly disgusted with the present inadequate railway service between Westerham and London, and more especially with the local steam railcar service, a petition has been drawn up and has been numerously signed by users of the line in this neighbourhood, praying the company to reinstate the ordinary train.  Failing this last resource a practical solution of the difficulty is suggested, namely, a regular motor bus service between Westerham and Oxted, by which means London can be reached under an hour.’

The 'Westerham Flyer', as it was now called, had become the subject of derision: a topical verse was penned by Mr F A Williams and performed by him at the Brasted Village Concert the week previously. The short verse was entitled ‘Four Miles in Half-an-Hour’ ...
Now Brasted folk don’t mind a joke, I’m sure you’ll all agree, But a motor-train is a bit of a strain when you want to get home to tea. Tho’ Dunton Green is a lovely scene, especially in a showerit’s not your fault if at Chevening Halt your tempers getting sourchorus (twice) - Four Miles in Half-an-Hour!!Oh! that engine is a quaint old bird, the things it does are most absurd it’s impossible to love it, when you’re bundled out to shove it, it really is a quaint old bird!

The railmotors were short-lived and the branch reverted to Q class locomotives, with three-coach sets containing first, second and third class compartments.

In a further attempt to reduce running costs, the tiny P class 0-6-0T had been developed by 1909 for use on low-capacity branch lines. Although not very powerful, these locomotives were economical to run and they were able to cope adequately with short trains. No.753 was fitted for push-and-pull working when built in 1909, and it took over all the Westerham services with the locomotive marshalled between two bogie coaches. These auto-train workings lasted little longer than the rail-motors and the Westerham branch soon reverted to Q class operation again. From 1913, some of the P class returned to the branch having been fitted with a modified auto-train gear.

A significant decline in rail travel on the branch began in 1914 with the introduction of an omnibus route between Reigate, Oxted, Westerham, Brasted, Chipstead and Sevenoaks run by the East Surrey Traction Co. It is ironic to consider that the railway had killed-off the local stagecoach route from Westerham to Sevenoaks by 1882, but 50 years later, by the early 1930s motor buses from Dunton Green depot had taken almost all of the passenger travel from the railway.

In 1917, the practice of running Charing Cross trains via Cannon Street ceased but this did little to improve the general punctually of suburban services, which was, at this time appalling due to bottlenecks caused by too few tracks trying to accommodate too many trains. To try and alleviate this, a programme of electrification was proposed by the SE&CR. Stage 1 of the electrification included Charing Cross and Victoria to Orpington; and Stage 2 included Orpington to Tonbridge and the Westerham branch. This electrification by the SE&CR never came, and when electrification was eventually introduced by the Southern Railway it extended only as far south as Sevenoaks and Westerham never saw electric trains; this probably hastened the eventual demise of the line.

In 1923, the Westerham Valley Branch, together with its operators the SE&CR became part of the Southern Railway at the Grouping. Initially this made little difference to the branch.

After 1926 the Class P 0-6-0T was phased out as a passenger loco (the Q class was being scrapped too) and non-motor-fitted engines arrived to work the trains. Classes B and B1 4-4-0, and frequently the O1 0-6-0, were seen.

In September 1933, a new engine shed opened at Hither Green and it supplied all the locomotives for the branch for the next five years, with classes R and R1 locos operated in push-and-pull mode using two-coach sets that had been converted from the former SE&CR rail-motor sets.

The early years of the ‘Depression’ initially brought a cut in services in an attempt to save money. A number of trains during the middle of the day were cut out, as were the late evening trains, There were no losses to the Sunday timetable and the service was, in fact, improved somewhat with five trains running through to Orpington.  The reduction of weekday trains was, however, short-lived. The electrification of the line between Orpington and Sevenoaks came in 1934 and a new timetable came in to operation with a half-hourly service to London. The off peak trains on the Westerham branch were reinstated with an hourly off peak service connecting with alternate electric trains at Sevenoaks.

In early 1936, a Sentinel railcar was trialled on the branch. Authorised by Richard Maunsell of the Southern Railway, the railcar was new in 1933 and appears to have been yet another attempt to provide economies of operation in that its design went further than the more familiar LNER and LMS Sentinel railcars. Construction was ultra-lightweight and tare weight is thought to have been in the region of a mere 11 tons – much the same as a modern double-decker bus. Obviously lightweight construction went hand-in-hand with structural strength. As was usual with Sentinel railcars, construction was by Metropolitan Cammell with Sentinel supplying the running gear, boiler etc. As a one-off, it must have been an expensive project for Metropolitan Cammell and indeed the Southern Railway. Further orders, which must have been hoped for, did not materialise. Drawings of the railcar have survived and the interior layout suggests it was designed for one man operation. A driver's seat was provided at both ends and the boiler was fitted with an automatic stoker and crusher. At the trailing end, the driver sat in what could be described as a combined cab and luggage compartment. Seating was provided for 44 passengers, access being by single-leaf sliding doors, presumably hand operated, located centrally on each side of the body and leading into a small vestibule. The boiler was the standard Sentinel vertical type, automatic stoker excepted, and the engine was Sentinel's familiar 2-cylinder type.

The railcar was designed for use on the Devils Dyke branch near Brighton, but it could not cope with the steep gradients and the brakes were inadequate for the return journey. On 2 March 1936 it was transferred to the London East Davison where it was given a second opportunity to prove itself on the relatively flat Westerham branch. To work the branch, the Sentinel would come up on the 7.23 am Tonbridge to Dunton Green and take over from the push-and-pull then, at 2.12 pm it would run back in traffic to Tonbridge for servicing. Branch trains in the afternoon would once again be in the hands of an R1, then at 5.00 pm the Sentinel would work 'passenger' back from Tonbridge to Dunton Green to work Westerham services for the rest of the evening, helped out by an R1 during the tea-time rush when two trains were required on the branch. The Sentinel was unreliable and it was even less popular than the rail-motors, and its stay on the Westerham branch was short with the line reverting to the trusted R1s within a few months.



In June 1938 Tonbridge shed once again took over the workings on the branch. These continued to be Class R1 which in 1939 were supplemented by class R locomotives. The 1938 timetable had 21 trains in each direction on Monday to Friday with 21 on Saturday and an additional late down service on Wednesday. On Sundays there were 18 down and 17 up trains.

During WW2, all railways were put under government control from 1 September 1939, and the mass evacuation of London's children was put into practice. Although 7,000 evacuees arrived at Sevenoaks the branch had no part to play as they were taken on to their final destinations by bus.  In fact the war had little effect on the branch. From 11 September a new timetable came into operation which saw the branch service drastically reduced but a week later, on 18 September, the pre-war service was reinstated on Monday to Friday. Apart from the withdrawal of some cheap fares and the conversion of first class compartments to third, little else changed.

The Southern Railway was nationalised on 1 January 1948 and became the Southern Region of British Railways. The 1950 branch timetable had 22 down trains on Monday to Friday with 20 on Saturday. There were also 22 up trains but only 21 on Saturday, which was much the same as the pre-war service but without the additional late night service on Wednesday. The Sunday service was somewhat reduced with 15 down and 14 up trains.

In around 1952 Class H 0-4-4T locomotives began operating the branch service and would continue to do so until its closure, together with the R and R1s until the last of these was withdrawn in 1956.

During the 1950s, the line began to suffer competition with buses, notably the 403 route which ran from Croydon via Sanderstead, Chelsham and Westerham to Sevenoaks, and as train fares rose dramatically from 1938, passenger numbers fell. In order to save running costs BR decided to work the line on the ‘one-engine-in-steam’ principle, using a miniature train staff under the control of the Dunton Green signalman. Brasted joined Chevening in becoming an unstaffed halt, and from 13 June 1955, there would no longer by any trains in the slack periods, although a Sunday service was retained during the summer months only. The branch thus became a ‘commuter line’ with Sunday being the only day of the week with a service throughout the day.

Unusually, the Westerham branch was not a regular destination for railtours in the 1950s but there was one, organised by the Inter-regional Ramblers' on 10 November 1957. The ‘Kentish Heights Special' ran from Greenford calling at all stations on the branch. It was scheduled to be hauled by the revived GWR 4-4-0, 'City of Truro' but on the day, it was hauled by Wainwright Class 0-1 No.31064. There was also a BR excursion from Kensington Olympia on 15 January 1957 but passengers for Westerham had to use the normal branch service from Dunton Green.

In February 1956 the Kent Coast Electrification scheme was approved. Once completed, this would leave the branch as an isolated steam-operated adjunct of a modernised main line. Despite the operating economies that had been instigated in 1955 the line was reported to be losing £11, 600 per annum. BR made no attempt to investigate further ways of cutting costs and closure was announced in April 1960.  On 12 June 1961, scheduled electric services commenced via the ex-SER route to Dover (although the full electric timetable did not commence until 18 June 1962). Despite this, the Westerham line continued to operate, but the end was inevitable.

The Central Transport Users' Consultative Committee argued against this move, claiming that 200 passengers per day used the line. They recommended that it should remain open to avoid the hardship closure would cause to commuters. This advice was rejected by the Minister of Transport, Ernest Marples, and it was announced that the last day of operation of the line would be Saturday 28 October 1961. He later also rejected a petition against closure signed by almost 2,500 local inhabitants and presented by the MP for Sevenoaks, John Rodgers. The Minister claimed that service was losing £26,000 per year which was equivalent to £150 per passenger.

Mr Rogers later suggested that the real reason for allowing the closure was to facilitate the construction of a South Orbital road (M25) running along its course. The Parliamentary Secretary was quick to refute this suggestion stating:  ‘When we had our talk on 13 September about the closure of the Westerham - Dunton Green line you mentioned to me a current rumour that the Minister might have been influenced in reaching his decision by the possibility that certain proposed road improvements could be more economically carried out if the line were closed. I have made careful enquiries and I can assure you that any such suggestion is unfounded. The line of the road has not yet been fixed, and the Minister has not authorised any detailed survey.’

The final day dawned bright and sunny with large numbers of enthusiasts and photographers arriving at Dunton Green for a last opportunity to travel on the branch. Morning trains were worked by Class H 0-4-4T No.31518 with the usual two-coach push-and-pull set. The locomotive was adorned with a Union Jack, and the inscription ‘Flyer 1881-1961’ was chalked on the smokebox. To cope with the high demand, BR put on a 6-coach corridor train from early afternoon worked by Class D1 4-4-0 No.31739. The last trains of all were the 7.23 pm Westerham to Dunton Green and the 7.50 pm Dunton Green to Westerham. At Westerham, squibs and bangers were ignited, the signal cabin was swamped with visitors, and passengers for the 7.23 pm were wandering along the track to reach the coaches, the platform being too short for the 7-coach train, which was being worked by Class Q1 0-6-0 No.33029.

To compensate for the closure of the line, London Transport was to run additional buses on route 403. There were five extra journeys from Westerham to Sevenoaks between 6.0 am and 9.0 am; and six extra buses between 5.0 pm and 8.0 pm from Sevenoaks to Westerham.

In 1962, the Westerham Valley Railway Association, born of a merger between two local interest groups, the Westerham Branch Railway Passengers' Association and the Westerham Valley Railway Society, began to investigate the possibility of reopening the line, staffed by volunteers, for commuters on weekdays with diesel railcar service and as a heritage railway at weekends between April and October using steam haulage. British Railways offered the ownership of the line for £30,000 on the basis that a commuter service would be provided, thereby allowing it to cease its subsidies of the 403 bus services which were now over-subscribed following the closure of the Westerham branch. In July 1962, British Railways granted a lease of Westerham station building, which became the headquarters of the Association. A lease of Brasted Station was also later agreed.

In October it was revealed that railway author and publisher Ian Allan was interested in operating the line through a management committee on which the WVRA would be represented. This company would then form part of his group of companies. He later withdrew his support when his planning application for a petrol station adjacent to Westerham station was turned down.

British Railways were later to change their policy regarding the disposal of disused branch lines and, as they had done with the Bluebell Railway, were no longer prepared to simply lease the line to a private operator. Instead, they now required an outright sale of the line to the Association for £53,000. Thanks to the help of an anonymous backer, the Association was able to put forward an offer of £30,000 for the track, buildings, land and branch platform at Dunton Green. British Railways accepted this offer subject to the condition that a commuter service is provided, thereby enabling it to cease its annual subsidy of £8,700 towards the additional bus services laid on following the line's closure.

The withdrawal of Ian Allan cast serious doubt on the proposed reopening. In the Association's Annual General Meeting on 2 November 1963, members were informed that efforts to raise the £30,000 plus £10,000 for equipment had failed. Furthermore, British Railways were now in talks with Kent County Council regarding the sale of the line to enable the construction of the proposed orbital motorway - what would later become the M25 motorway.

More positive news was received in November 1963 when it was revealed that not only had a new backer been found, but also that terms were agreed with British Railways for the sale of the land to the Association. However, one month later Kent County Council contacted the Association and informed them that the Council's intended purchase of the land would save taxpayers the sum of £120,000 and, furthermore, that in the event British Railways were unwilling to sell the land to the council, as had been intimated, compulsory purchase powers would be used. Faced with the prospect of a compulsory sale, British Railways now broke off negotiations with the Association and agreed to sell the line to the Council.

However, in April 1964, the Council indicated their willingness to lease the line to the Association, thereby ensuring its continued existence if the Association were to come up with the cost of constructing a bridge over the railway cutting at Chevening to enable the new road to cross it. The cost of this bridge was estimated by the Council at £14,000, added to which was the annual rent of the line of £3,000. The estimate of £14,000 was revised upwards in August 1964, to a figure of £26,215 (equivalent to £490,714 in modern currency) which was to be paid by 24 August; otherwise works would commence to infill the cutting at Chevening.

In the meantime, the purchase of several former Metropolitan Railway coaches and a Class H 0-4-4T locomotive No.31263 had been agreed and they were awaiting collection. Initially, British Railways had allowed the stock to be stored at Dunton Green, but since the intervention of the Kent County Council, it became reluctant to allow this and threatened to scrap the stock were it not collected. The coaches were loaned and later sold to the Keighley & Worth Valley Railway and the locomotive to the Bluebell Railway where it remains today.

By November 1964 the funds to construct the bridge had still not been found and, following the infilling of the Chevening cutting, the Association realised that their plans to reopen the line could no longer be realised. This was notwithstanding intervention by the MP for Faversham, Terence Boston, who unsuccessfully attempted to persuade the new Labour Minister of Transport, Tom Fraser, to hold an enquiry into the County Council's plans to convert the line into motorway.

In autumn 1965, the Association merged with the Kent & East Sussex Railway Preservation Society. The remaining track was lifted that year and Westerham station building was demolished in 1966. Works on the section of the M25 from Sundridge Road to Westerham commenced in December 1976 and were completed in December 1979.

Some sections of the line still remain today and it is possible to walk from Dunton Green as far as the site of Chevening Halt. Two slip roads of the M25 (Junction 5) cut across the Westerham branch just to the west of the halt. Then the course of the branch is clearly defined for 100yd until the motorway curves round from the north and onto the trackbed. The railway and motorway then follow a similar course until the outskirts of Westerham where the motorway swings away to the north to avoid the town. The railway swings across the motorway several times: sometimes it is on the north side and sometimes on the south, but for all of this length the course has been obliterated by the motorway works. Once the motorway and railway diverge on the outskirts of Westerham the course of the line can once again be regained initially as a low embankment then on the west side of Beggars Lane, a path along the edge of a field as far as Madan Road where the route is lost under back gardens. The site of Westerham station and goods yard is now covered by industrial units along a road known as 'The Flyers Way'.

On 29 and 30 October 2011 the Westerham Branch came alive again to celebrate the 50th anniversary of its closure in 1961. Volunteers at the Spa Valley Railway, operating between Eridge and Tunbridge Wells, changed the names of the stations from Eridge to Dunton Green, Groombridge to Brasted Halt, High Rocks to Chevening Halt and Tunbridge Wells to Westerham.

The ‘Westerham Flyer’ operated, and additional shuttle services ran from Eridge to Groombridge. Special tickets were made for the event (one is seen above) and visitors were also treated to information on the branch line, as well as a model railway set and video footage. Click here for some pictures.

FILMS:

Bradshaws from Nick Catford. Route map drawn by Alan Young. Tickets from Michael Stewart, Brian Halford and Martin Foley. WVRA leaflet and newsletters from Martin Foley and Glynn Huggins . Dark green totem from Richard Furness.

Special thanks to Westerham social historian Bill Curtis for his invaluable help with information during the preparation of this feature. Some short sections of text has been reproduced from Bill's book listed below. Thanks also to Darren Kitson for writing most of the captions.

Click here to download the Westerham Valley Railway Association Newsletter No 2 'The Westerham Flyer' May 1963

Click here to download the Westerham Valley Railway Association Newsletter No 3 'The Westerham Flyer' August 1963

Click here to download Westerham Valley Railway by GT Black 1962. Published by the WVR

Click here to see Adrian Prime's excellent model of Westerham station and goods yard. (62 pictures)

SOURCES:

To see stations on the Westerham branch
click on the station name:
Westerham, Brasted Halt & Chevening Halt

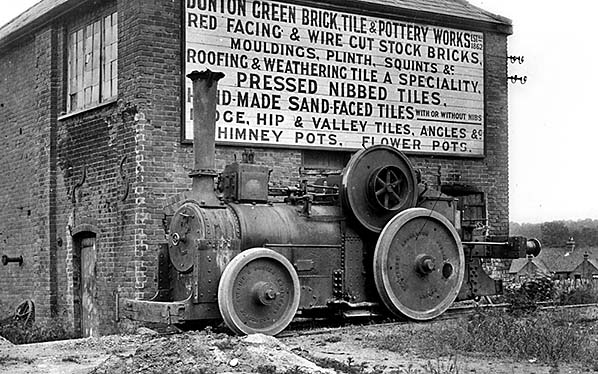

See also feature: Dunton Green Brick, Tile & Pottery Works and Associated Industries


Dunton Green Station Gallery 1: 1891 - Early 1930s

Dunton Green in 1891, looking towards Sevenoaks with the Westerham branch on the right. The original Stevens signal box can be seen, it being designed to give signalmen a good view of the line without being obstructed by the footbridge. The box was abolished in the early twentieth century and replaced with a new one sited on the down side and at the London end, in other words on a site to the far left of this view. Note the two-arm SER slotted-post signal. The left arm was for down trains and the right arm for up trains. Quite what the arrangements for the hours of darkness were for this particular signal is unclear. Slotted-post signals were once very common and multi-arm versions were by no means rare. They were really just a mechanical version of the railway policemen of the early nineteenth century who stood at the lineside giving various signals to trains travelling in either direction. The disadvantage of slotted-post signals was their high maintenance and a tendency for the slot to become clogged with snow and ice. With multi-arm versions this meant that if one arm was inoperable the other almost certainly would be too. The gallows-like structure in the right background was a loading gauge. The angle is deceptive: the gauge is actually just inside the goods yard. See the maps and later images.
Photo from John Mann collection

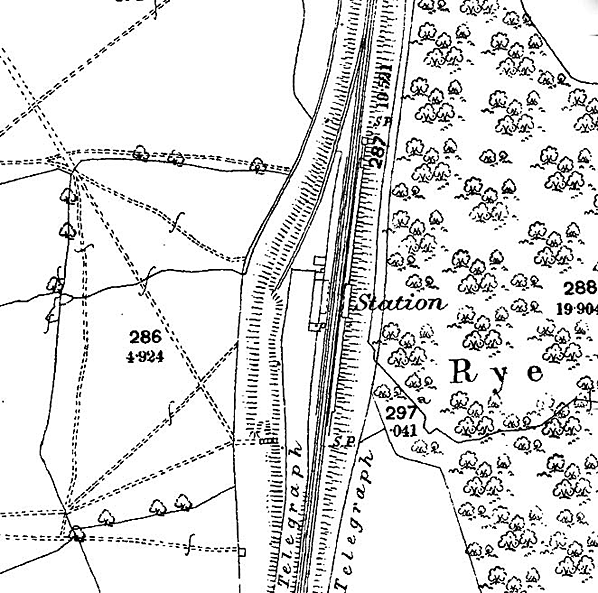

1872 1:2,500 OS map shows the layout of the original 1868 station. There is a single goods siding running behind the up platform; this occupies the site of the later branch line. At this time, the station possessed neither a signal box nor a footbridge. The platform canopies are of equal length and opposite each other.

.

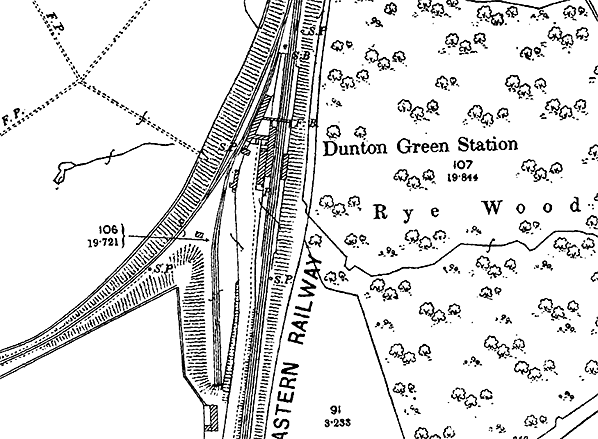

1896 1:2,500 OS map. This map shows Dunton Green station after the arrival of the Westerham branch. A footbridge has now been provided and the new signal box at the end of the up platform is shown. To the south of the station, the embankment has been widened to accommodate two new sidings. The up platform canopy has been extended up to the covered stairway footbridge. The building at the south end of the branch platform is the goods shed. Click here for a larger version of this map which also includes Wreford's private siding and the Dunton Green Brick and Tile Works.

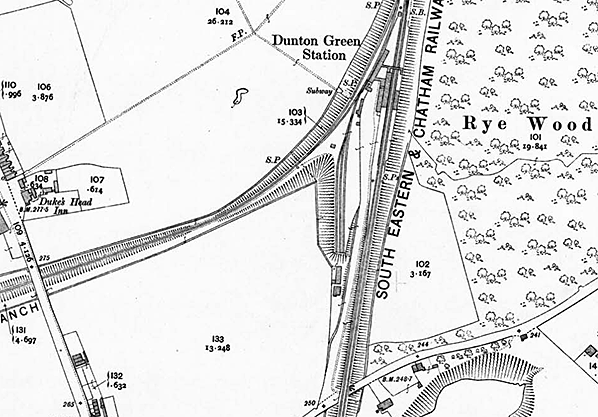

1909 1:2,500 OS map. Although the signal box and footbridge had been replaced by this date the earlier structures are still shown here. This map is based on the 1896 map above with revisions made in 1907. A third parallel goods siding has now been added. There are two buildings on the south side of the goods yard. The southern of the two buildings is the stationmaster's house. The function of the other building is not known. The building to the east of the Station Road bridge at the bottom of the map is the Railway Tavern. Click here for a larger version of this map which also includes Wreford's private siding and the Dunton Green Brick and Tile Works.

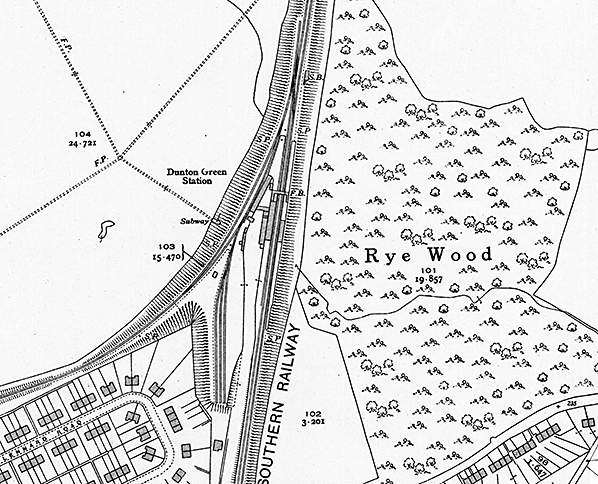

1941 1:2,500 OS map. The signal box is now shown to the north of the down platform. The new footbridge is also shown. A small building at the back of the branch platform shelter alongside the footbridge is an electricity sub-station. The building to the north of the stationmaster's house has been demolished. There has been substantial residential development on both sides of the line to the south of the station.Click here for a larger version of this map which also includes Wreford's private siding and the Dunton Green Brick and Tile Works.

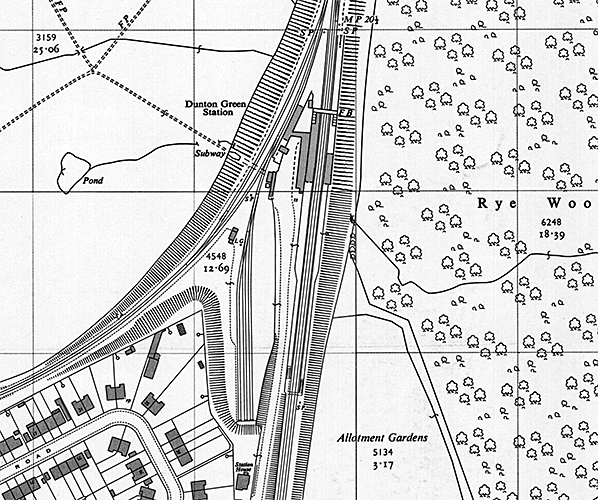

1963 1:2,500 OS map. Both main line platforms have been extended to the south. The up platform canopy has been extended to the north to bring it level with the branch platform canopy. The station house is now identified as such. Dunton Green station remains at the edge of the built up area. With the exception of the housing development on the site of the goods yard the station retains its rural setting today. Click here for a larger version of this map which also includes Wreford's private siding which until 1957 served a cold storage depot.

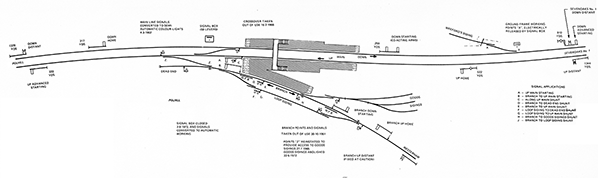

Polhill and Sevenoaks No.1 boxes. Much of the Dunton Green diagram is self-explanatory but a few details should be mentioned. Towards top right, Wreford's Siding can be seen with its gate represented by A 1950s track and signalling diagram with subsequent details added. North is to the left, with the Westerham branch heading away westwards at the bottom. Dunton Green signal box was midway between the truncheon-like symbol. As the text explains, the points were operated via a ground frame electrically released from the signal box. This means the down starting signals would have to be set to danger before the signalman could release the ground frame and also the trap points within the siding (both marked 'x'). With a train in the siding and clear of the trap points, the points would be reset and locked. The procedure would then be repeated when the train was ready to depart. It should be noted that signalling diagrams are in schematic form and sidings as shown may not - usually did not -represent their true length. At the bottom centre of the diagram the lifting, reinstatement and final lifting of the track through the branch platform together with the goods sidings and the points from the main line is explained . The siding marked 'Dead End' was the trap siding protecting the up main from the branch. The crossover between up and down main lines is visible in a number of images and its main use would have been for locomotives and stock leaving the branch to return to Tonbridge. It is thought that at one time another crossover existed north of the station allowing access from down main to branch but it is not known if this was in addition to, or was replaced by, the crossover seen on the above diagram. Distant signals are shown with the usual 'notched arm' symbol with shunt signals shown as marked, for example, at D, E, F and G. Some signals can be seen with a diamond symbol on their posts. This represents track circuiting, the passing of an electric current through the rails which, when short-circuited by the wheels and axles of a train, inform signalmen of the train's presence via instruments in the signal box. Click here for a larger version. Click here for a larger version.

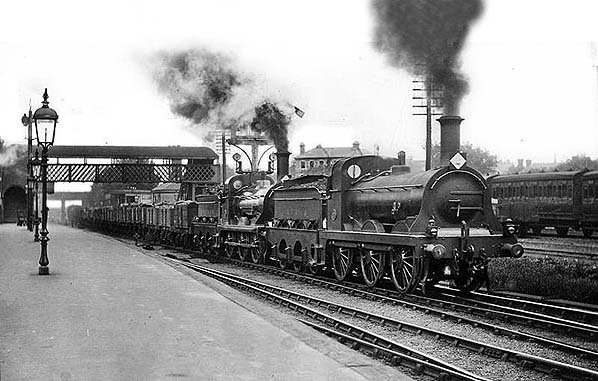

This rare and, for its time, good quality photograph was taken in 1903. The location is Grove Park, Lewisham, a station still open today. The relevance of this station to Dunton Green is the footbridge. Sometime around 1905 Grove Park station underwent a major rebuild by the SE&CR and a new footbridge, similar but not identical to the original, was provided. The original as seen above was relocated to Dunton Green and is the structure visible in numerous photographs of that station. The footbridge had, however, been subjected to several alterations while at Dunton Green and ended up in completely open form as seen in images taken from the mid 1950s onwards. Grove Park, opened in 1871, was a LC&DR station and some of that company's features are visible and in particular the signals. The 'lollipop' devices mounted on the signal bracket visible behind the second locomotive are believed to have been rotating shunt signals. The locomotives are James Cudworth's 'Standard Goods' 0-6-0 types, first introduced in 1855. They underwent a rebuild by James Stirling and became Class I but the class was extinct by 1904, the year after this photograph was taken. Early steam locomotives burned coke and the locomotives seen above were clearly burning coal. Cudworth had been responsible for designing the coal-burning firebox and the 'Standard Goods' was among the first, if not the first, design to be so fitted. The reason was that coke was much more expensive than coal. In theory locomotives can burn coke or coal but the problem was producing a firebox able to burn coal efficiently while keeping smoke emissions to an acceptable level. It would appear that at Grove Park the result was only of limited success although, in fairness, there are several reasons why locomotives could produce excessive smoke and not all of them the locomotives' fault. The second locomotive appears to have SE&CR lettering on its tender. It is worth noting that the SE&CR as a company never existed, the title merely being that of the joint management committee set up by the LC&DR and SER. Note the diamond-shaped headcode board on the leading locomotive. One of these boards has survived and is now in the National Railway Museum. Before we leave Grove Park, James Cudworth did, in a sense, leave a mark on the Westerham branch which was prominent until the end as it was he who invented the 0-4-4T type of locomotive.
Photo by TE Budden

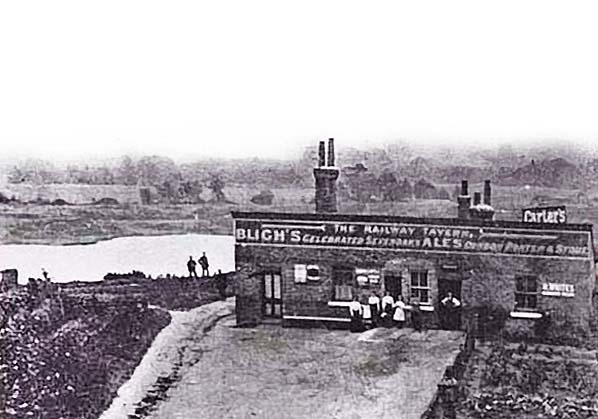

The Railway Tavern at Dunton Green on an unknown date. The tavern stood on the south side of Rye Lane close to its junction with the station approach road and on the east side of the railway to Sevenoaks. The railway is on an embankment and crosses Rye Lane on a skew bridge so it is likely that the photograph was taken from this bridge or possibly from the side of the embankment. In the left background one of the brickworks pits can be seen, apparently flooded. Not much of any certainty is known about the tavern. Said to have been provided for the Welsh miners employed to excavate the nearby Polhill Tunnel, which suggests the miners encamped at Dunton Green, the tavern likely dates from around 1862 when construction of the railway was authorised. The figure in the doorway beneath the word 'Ales' may have been the landlord with the other people being his family or staff. As can be seen, the tavern was supplied by Bligh's of Sevenoaks. In 1862 John Bligh purchased the former Holmesdale Brewery, situated on Sevenoaks High Street, from John Allworth. Bligh, who is said to have been the largest hop grower in the region at the time, enlarged the premises in 1882. He sold the brewery and its tied cottages to Messrs Watney in 1911 and the premises were closed down in 1935. The Bligh name on the Railway Tavern therefore dates the photograph to pre-1911. 'London Porter' was a type of ale made from brown malt. It fell out of favour in the years following WWII but has made, at least in name, something of a comeback in more recent times. The Railway Tavern is thought to have closed in 1935 and at some point became home to a well-known local character known as 'Trigger' Turton. Turton was a lecturer in mathematics at London University (today, the University of London) and his nickname derived from 'trigonometry', a branch of mathematics. Turton suffered a nervous breakdown following failure of his marriage and came to resemble a tramp, living in the increasingly derelict and overgrown former Railway Tavern. It is said that Turton diversified into horticulture although this may have been a polite local joke which referred more to the way he lived than to anything else. Little else is known about Turton but records suggest that he may have been one Frederick Turton who died in 1972. The Railway Tavern, which came to be known as Bridge Cottage, is thought to have been demolished in the late 1970s and its site used for an extended car park for West Kent Cold Storage. Today the site of the former tavern lies within a modern residential development, West Kent Cold Storage having vacated the site sometime around the turn of the 21st century.

The large sign, which would have been hand painted on wood, shows the location of this view. There had been a clay industry on the site since the 16th century but Thompsons works', with which we are concerned here, dated from 1862 and was a direct result of authorisation for construction of the railway through Dunton Green that same year. The works and quarries contained standard and narrow gauge railways but much of the standard gauge system was removed prior to WWI, by which time the works was in the ownership of the Breething family. The removal of the standard gauge internal system left the works served by just a single siding, via a trailing connection from the down main line just south of Dunton Green station and which terminated on the south side of Rye Lane adjacent to the erstwhile Railway Tavern. This was the siding known as Wreford's Siding. Samuel Wreford, a silk merchant, was Lord of the Manor at Dunton Green. The locomotive is one of the strange machines built by Messrs Aveling & Porter of Rochester, a firm better known for its steam traction engines and road rollers. It built many of these locomotives, to several gauges, which were in effect traction engines on rails. They were cheap to build, cheap to operate and could be driven by anybody with prior knowledge of traction engines and some basic railway training. These machines could be found in brickworks, quarries, cement works and so on. Two even worked passenger trains on the Wotton Tramway(better known as the Brill branch) and at least one of these is known to have been adapted from a traction engine during the construction stage. Cheapness was all well and good but these locomotives produced only a rather dire 8 - 10hp and could manage a speed only in the region of 10mph. While this may seem somewhat comical it was just about adequate for the work intended of them which was slow-speed shunting of two or three small wagons. They were intended as an economical replacement for horses where the cost of a 'proper' locomotive could not be justified and in most cases, this is precisely what they did. The locomotive pictured was Aveling & Porter works’ number 1740 of 1882. It is believed to have been scrapped in 1927 after which the siding was shunted by main line locomotives. The 1909 map shows Wreford's Siding and another siding trailing from it which necessitated a reversal. It is at the southern end of the latter siding where the above photograph is thought to have been been taken. The date of the photograph is not known but although the locomotive appears semi-derelict its wheel flanges appear polished, suggesting that it is still in use. Of note are the rear buffers set at standard wagon height (this gives an idea of the diminutive size of these locomotives) and the front beam set much lower to conform with internal-user skip wagons but there was also a standard height beam at the front, missing in this view. There also appears to be a crude link and pin type coupling. A further feature of note is the belt pulley attached to the flywheel. This is thought to have been used to drive a crushing plant and may have been a later addition to the locomotive. This in turn may suggest the final few years of the locomotive's existence were spent performing only this work. The unequal wheels of this locomotive are typical of the type and came directly from traction engine / road roller practice. Other Aveling & Porter locomotives had equal wheels and basic, but proper, driving cabs and shorter chimneys. A number of both types have survived into preservation, including one of the Wotton Tramway examples.

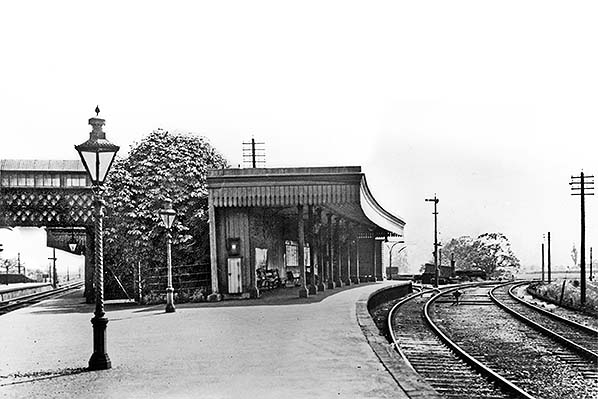

The Westerham branch platform, right, and main line platforms, left, at Dunton Green sometime prior to 1935. Note the branch down starting signal with a lower quadrant arm on a tall post topped by a finial. Its height would have been to make the arm visible from the signal box although, see later views, a shorter post later appeared and then an upper quadrant signal on an SR-style post later replaced it. Note that the 'gallows' type loading gauge visible beyond the branch platform, has now been replaced the style found at Brasted and Westerham.
Photo from John Mann collection

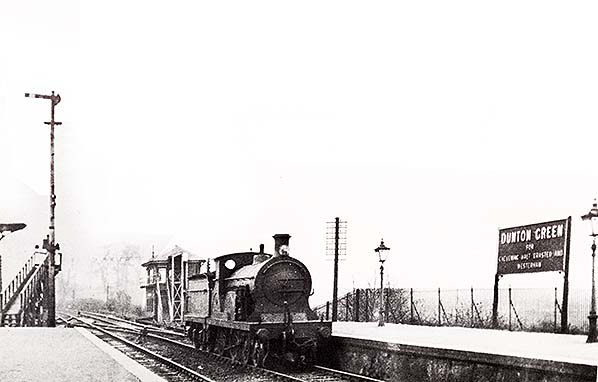

A poor quality, but nonetheless interesting, view of the London end of Dunton Green station sometime in the first half of the 1930s. The signal box erected on the down side of the main line can be seen. The odd looking structures adjacent to the signal box and at the end of the up platform, left, were part of the aerial ropeway used for transferring the Westerham branch token to and from the branch platform. The ropeway itself can just be made out spanning the tracks. Provision of this ropeway may be thought strange as the token did not need to be exchanged following every trip along the branch. The reason for its provision may well have been the one-time through trains between the branch and London or vice versa, the ropeway doing away with the need for the signalman to leave his box and cross to the main line to the branch platform, the single line token requiring to be surrendered before trains left the branch to join the main line. In the down direction trains for the branch crossed over from the down main some distance prior to passing the signal box. The locomotive appears to be running light engine towards Sevenoaks. Identifying the locomotive has proved difficult. It is a 4-4-0 of either class B1 or F1 but the splasher design suggests it is an F1. Both types originated as Stirling designs for the SER but had been rebuilt by Wainwright in SE&CR days. The Wainwright influence is clear in the above view and this particular locomotive has a domeless boiler which seems to have been unusual for the F1 class. A few members of both classes managed to survive into BR days.
Photo by HC Casserley
