Station Name: USWORTH

[Source: Alan Young]


Date opened: 5.1864 (first appearance in Bradshaw)
Location:

South of the level crossing on Usworth Station Road and Washington Road

Company on opening: North Eastern Railway
Date closed to passengers:

9.9.1963

Date closed completely: 9.9.1963
Company on closing: British Rail (Eastern Region)
Present state: Demolished - some degraded remains of the down platform survive.
County: Durham (now Tyne & Wear)
OS Grid Ref: NZ320576
Date of visit: 22.6.2011

Notes: Usworth station was in a somewhat isolated location, its two platforms south of a level crossing at the eastern end of the straggling colliery villages of Great and Little Usworth. About half-a-mile north-west of the station was Usworth Colliery, which operated from 1845 until 1974 and reached its peak employment with 1,800 workers in the early 1920s.

The main facilities were in a modest brick building with a pitched roof towards the northern end of the down (Newcastle-bound) platform, resembling the down platform building at Washington; between this structure and the level crossing an enclosed waiting room of timber and glass was provided. About midway along the up platform was a small shelter with a curved, convex roof, looking quite out of place on the North Eastern Railway. At the north end of the up platform a tall signal box, cantilevered out, adjoined the level crossing.

In 1911 the station issued 65,093 tickets and served a population of 9,946. Goods traffic handled at Usworth in 1913 consisted of bricks, potatoes, gravel, sand and livestock.

After World War I buses proliferated in the Durham coalfield offering more frequent services than the railways and serving mining villages more conveniently than did the railway stations. This was certainly true of Usworth and neighbouring Washington stations, each of them on the eastern edge of the settlement they served. Nevertheless in 1920 trains still provided a reasonable, though irregularly timed, service as shown below.

Up trains summer 1920

Destination

Down trains summer 1920

Destination

5.17 am

Middlesbrough

8.20 am

Newcastle

7.19 am

Middlesbrough

9.20 am

Newcastle

9.13 am

Middlesbrough

11.11 am

Newcastle

10.48 am

Middlesbrough

2.10 pm

Newcastle

12.46 pm

Leamside

3.22 pm

Newcastle

1.56 pm

Ferryhill

5.57 pm

Newcastle

5.30 pm

Darlington

8.08 pm

Newcastle

7.25 pm

Leamside

9.50 p.m.

Newcastle

8.26 pm

Ferryhill





10.53 pm Wed Only

Fence Houses





On Sundays two trains called in each direction, travelling between Newcastle and York. The summer 1938 timetable showed a similar service frequency. However in the early years of World War II the service was slashed – as shown in the 1943 table below – and was never to be restored to its pre-war frequency.

Up trains summer 1943

Destination

Down trains summer 1943

Destination

6.33 am

Penshaw

8.37 am

Pelaw

8.26 am

Penshaw

12.21 pm Sat Only

Newcastle

12.28 pm Sat Only

Durham

5.37 pm Sat Exc

Newcastle

5.27 pm Sat Exc

Leamside





On Sunday one train called in each direction, travelling between Newcastle and Durham.

At some time during the LNER period (1923-47) Usworth received the standard wood-and-metal running-in nameboards. From January 1948 the station was operated by British Railways North Eastern Region, and during that time the train service became yet more threadbare and there was no evident modernisation of the facilities: casement-style gas lighting was retained and no new signage was installed. The timetable issued in September 1953 showed no trains calling at Usworth, and only one through train on the line, the 4.26 am ex-Newcastle to Barnard Castle whose first call was Washington. The following summer’s timetable showed one up train calling at 8.48 am and terminating at Washington, and two down trains starting from Washington, calling on Saturday at 12.20 pm and Monday-to-Friday at 5.20 pm for Newcastle. The token service was timed to serve employees travelling to and from a large chemical works adjacent to the station at Washington. The Saturday lunchtime train call is a reminder that until the mid 1960s many industrial personnel worked 5½-day weeks, including Saturday mornings.

The bookings at Usworth station had declined to only 5,593 in 1951. From 14 September 1959 no staff were in attendance, and although it was informally described as an ‘unstaffed halt’, in typical BR(NE) fashion the ‘halt’ suffix was not added to its name. The goods facilities were closed at the same time. In 1961 the Ordnance Survey One-inch map incorrectly showed the station as closed, but the Reshaping of British Railways (‘Beeching’) report of March 1963 ensured that it soon would be. Whilst almost every other line or station closure proposal drew objections, no-one came to the rescue of Usworth and Washington which had the distinction of being the first post-Beeching closures on 9 September 1963.

By the mid 1970s Usworth station had been demolished.



The Reshaping of British Railways (‘Beeching’) report of March 1963 did not recommend the Newcastle – Sunderland / South Shields local services and stations for closure, but the Washington route was earmarked. The closure to passengers of the line to Washington on 9 September 1963 entailed the withdrawal of the Newcastle to Washington train departing from Pelaw at 8.44 am and a reverse working from Washington to Newcastle which called at 5.47 pm, both operating on Monday-to-Friday only. As part of the programme of withdrawing goods services from wayside stations, Pelaw ceased to handle this traffic on 4 October 1965. On 2 January 1967 the North Eastern Region was abolished and its lines and stations were transferred to Eastern Region management. The Newcastle – Sunderland and South Shields branch local services were among those changed by the Eastern Region to ‘Paytrain’ operation in which, as an economy measure, booking offices were closed at all but the most important stations and tickets were issued instead by conductor-guards on the train. Pelaw and all of the other intermediate stations between Newcastle and Sunderland / South Shields consequently became unstaffed on 5 October 1969. Without staff in place, Pelaw station buildings were targeted by vandals. In early 1972 BR demolished all of the buildings, replacing them with a brick shelter. Electric lighting on the tall vandal-proof standards favoured by the Newcastle Division of the Eastern Region was installed. In 1974/5 Corporate Identity name signs were added.

Plans were approved in 1973 for conversion of the South Shields branch to light rail operation as part of the Tyne & Wear Metro. In preparation for this Felling and Pelaw stations were to close and be replaced with a new station at Heworth approximately midway between the two to act as an interchange between Sunderland line trains (which would continue to be operated by British Rail) and the South Shields Metro services. Heworth opened and Felling and Pelaw closed on 5 November 1979. Pelaw station was demolished. However Felling was rebuilt and reopened on 15 November 1981 to be served by the frequent South Shields Metro trains, but not the Sunderland trains.

ADDITIONAL SOURCE: Durham Mining Museum website

BRIEF HISTORY OF 'THE OLD MAIN LINE'
The ‘Old Main Line’ was the name frequently given to the railway between Ferryhill and Pelaw in County Durham which, from 1850 until 1872 formed part of the ‘East Coast’ route from London (Kings Cross) to Newcastle. Prior to 1850 trains ran via Brockley Whins, prior to the opening of the Washington – Pelaw line, and until 1848 terminated at Gateshead rather than Newcastle. From 1872 the present East Coast main line route was used, with diversions in 1906 when the opening of King Edward Bridge removed the need to travel via Gateshead (West) and at Newton Hall Junction, north of Durham, where the curvature of the tracks was reduced in the late 1960s. The evolution of the ‘Old Main Line’ was far from straightforward.

By the beginning of the nineteenth century waggonways were already in existence to move coal from the mines in south-east Northumberland and north-eastern County Durham to tidal water for export. It stands to reason that passengers will have been carried unofficially on such lines, but the first recorded passenger transport by rail in north-east Durham was in 1834 on the Pontop & South Shields route. Originally opened as the Stanhope & Tyne Railroad, it was not established by parliamentary Act but was built on the ‘wayleave’ system under a Deed of Settlement dated 3 February 1834, perhaps to conceal the ambitious nature of the scheme, which was 33¾ miles in length. Under this arrangement the company was to pay a toll, based on the amount of traffic carried, to each landowner through whose property the railway passed.

The south-western end of the line was in Weardale, on the moors just south of Stanhope. Here limestone was quarried, and there were deposits of coal available at intervals between Consett and South Shields. In July 1832 building of the line began, and progress was rapid. Although much of the terrain it crossed was moorland at high altitude, few earthworks were constructed or excavated, and some steep slopes on the south-western section of the route were negotiated with inclines; indeed more than half was worked by inclined planes, either self-acting or with a winding engine, and a few near-level stretches were worked by horses. Locomotives were used only at the eastern end. Much of the line remained unfenced until it closed in the 1960s. The route from Stanhope lime-kilns to Annfield was opened on 15 May 1834, and the eastern section onward to South Shields on 10 September 1834. The engineer T E Harrison surveyed the route; he was to become one of the most influential personnel of the NER.

The carriage of minerals was the priority of the Stanhope & Tyne, and no attempt was made to serve centres of population which would generate passenger traffic. Nevertheless there were requests for passengers to be conveyed so they were permitted to ride free-of-charge on top of the coal wagons. Soon a wagon was attached specifically for passenger use, and shortly afterwards a separate locomotive-hauled passenger coach was provided fortnightly on pay days. Finally, on 16 April 1835, a full passenger service was instated between Durham Turnpike (one mile north of Chester-le-Street) and South Shields, possibly calling from the start at Vigo and Washington. At South Shields a nearby inn sold tickets, and passengers boarded the train in sidings. Part of this route, from Washington to Brockley Whins, was to become a section of the original ‘Old Main Line’. The isolated stretch of passenger railway between Durham Turnpike and South Shields was joined by the Brandling Junction Railway from Gateshead to Brockley Whins, three miles south-west of South Shields, opening to minerals on 30 August 1838 and passengers on 5 September 1839; and the Durham Junction Railway, stretching north from an obscure terminus at Rainton Meadow (with horse-bus connection to Durham) to Washington opened for mineral traffic on 24 August 1838 and passengers on 9 March 1840.

Unfortunately the cost of running the Stanhope & Tyne proved unsustainable. In the moorlands wayleaves cost about £25 per mile per year, but at the eastern end the figures were £300 or more. The outgoings on wayleaves alone amounted to £5,600. Plans for a dock (where Tyne Dock was later opened) were abandoned. Traffic did not develop to the expected levels and the wayleaves proved to be financially crippling. By the close of 1840 the railway company was £440,000 in debt, and it was wound up on 5 February 1841. The following year the Pontop & South Shields Railway obtained an Act to take over the northern end of its track which had hosted the passenger service. The Derwent Iron Company took control of the section south-west of Carr House to bring limestone from Stanhope to its furnaces at Consett. This section later passed into the hands of the S&D.

The Brandling Junction Railway (BJ) originated as a private venture by brothers R W and J Brandling to connect Gateshead, South Shields and Monkwearmouth. The brothers obtained an Act to buy or purchase leases for the land over which their lines would pass, but they chose to proceed by the wayleave system. A company came into being on 7 September 1835 to acquire the assets of the Brandling Railway, and as the Brandling Junction Railway Company it was incorporated by Act of Parliament on 7 June 1836. The Stanhope & Tyne also sponsored a Gateshead, South Shields & Monkwearmouth Railway, but discussions with the BJR resulted in the abandonment of the plan. The BJR opened in three sections. The first was from the Newcastle & Carlisle Railway’s Redheugh in Gateshead, adjacent to the River Tyne, which ascended at 1:23 through Greenes Field to Oakwellgate; this was operated by a stationary engine. A self-acting incline from Gateshead Quayside was opened with it on the same day, 15 January 1839. The route from South Shields to Monkwearmouth opened on 19 June 1839, followed by the connecting lines between Gateshead and Cleadon Lane (later East Boldon) and between Brockley Whins and Green Lane (north-east of Brockley Whins) on 5 September 1839. A chord known as the Newton Garths branch opened on 9 September 1839 between East Boldon and West Boldon junctions, immediately south-east of Pontop Crossing, but this was not used by passenger trains. On 9 March 1840 the west-to-north link between the BJ and S&T opened at Pontop Crossing which enabled through services between the several termini at Gateshead, South Shields, Monkwearmouth and the Durham Junction Railway’s Rainton Meadows to operate. However services from the south had, at first, to reverse from just north of Pontop Crossing to reach Brockley Whins in a complex operation (described on the Brockley Whins page).

The Durham Junction Railway (DJ) was authorised by an Act of 16 June 1834. It became an important link in the chain of railways forming the ‘Old Main Line’, the original intention was merely to redirect to the Tyne coal from the pits in the Houghton-le-Spring area, and from pits served by the Hartlepool Railway. Even these modest ambitions were not realised as its southern terminus was to be at Rainton Meadows, two miles short of Moorsley, its intended destination, and the Houghton-le-Spring branch, authorised by an Act of 1837, was never constructed. Nevertheless a ‘Station Road’ was partly constructed in Houghton – the triumph of hope over reality – which was to be one of the largest population centres in the North-East never to have the benefit of a passenger station.

The DJ’s crowning glory was the stately stone viaduct over the River Wear between Penshaw and Washington, and based upon the Roman bridge at Alcántara, Spain. The last stone was laid on the day of Queen Victoria’s coronation, 28 June 1838, thus it was named Victoria Bridge (or Viaduct). The engineer T E Harrison constructed four main arches, those at each end of 100ft span and the two central arches of 160ft and 144ft; the total length was 811ft and the height above water level was 135ft. In 1843 the DJ became part of the portfolio of the ambitious George Hudson (the ‘Railway King’) as part of his plan for an integrated east-coast route. The Act of 23 May 1844 which confirmed his purchase of the line also made provision for the project of bridging the Tyne.

At Washington the DJ connected with the Stanhope & Tyne whose metals were used as far as Brockley Whins. Here the BJ line was joined, and the passenger service between Rainton Meadows and Gateshead took this route from its inception on 9 March 1840. The S&T owned over half of the DJ shares and also worked the services. As noted above a reversal was necessary at Brockley Whins, and this inconvenience was compounded by congestion caused by the DJ and S&T/P&SS trains sharing the line between Washington and Brockley Whins. To allow more efficient operation powers were sought to construct a direct curve and to widen the line between Washington and Brockley Whins: an Act of 23 May 1844 authorised these projects. The curve was on a difficult site intersected by the River Don and was constructed on a wooden viaduct which stood until 1940. The viaduct was used by main line trains until 1 October 1850 when the more direct route between Washington and Pelaw via Usworth was opened.

For the next stage in the evolution of the ‘Old Main Line’ through County Durham it is necessary to return to the 1830s. The Great North of England Railway obtained its Act for a route from Redheugh Quay at Gateshead to Croft (south of Darlington) on 4 July 1836. After opening from York to Darlington the GNE decided, for financial reasons, not to construct the route onward to Gateshead, and on 5 October 1841 agreed to relinquish the powers to Robert Davies, James Richardson and John Hotham, who acted on behalf of the embryo Newcastle & Darlington Junction Railway. The N&DJ agreed to apply for powers to finish the line and pay all costs. The N&DJ was incorporated on 18 June 1842, and on 11 April 1843 the northern part of the GNE was transferred by Act of Parliament to the N&DJ. Work proceeded swiftly, and the line opened throughout on 15 April 1844 to mineral traffic and to passengers on 19 June. The short section between Belmont Junction (where the Durham branch left the main line) to join the Durham Junction line at Rainton Crossing was the last to be completed. There was now a direct railway link from London to the Tyne: on 18 June 1844, the day before the route opened to regular passenger traffic, a special train made history when it ran from London (Euston Square) to Gateshead in 9h 21m, including stops totalling 70 minutes. At the time of opening the N&DJ did not actually own the line beyond Washington, but had a station at Gateshead, reached via the P&SS and BJ railways: although only authorised by the Act of 23 May 1844 the station was illustrated by an engraving in a Gateshead newspaper four weeks later.



The early days of the N&DJ were difficult owing to strained relations with the GNE. For details see K Hoole’s Regional History vol 4.

The original ‘East Coast’ main line of 1844 therefore ran from Ferryhill to Gateshead via Shincliffe, Leamside, Penshaw, Washington, Brockley Whins and Pelaw. The Gateshead terminus was at Oakwellgate, which had opened on 5 September 1839. On 2 September 1844 Oakwellgate closed, and the service was diverted to the Greenesfield terminus, which had opened on 19 June 1844. This terminus, in turn, gave way to a new through station which would eventually be known as Gateshead East, when the main line was extended to Newcastle Central, crossing the River Tyne on a temporary bridge (opened 1 November 1848) then on the High Level Bridge, which opened on 30 August 1850. From 1 October 1850 the new, shorter route via Usworth was used between Washington and Pelaw, avoiding Brockley Whins. This ‘Old Main Line’ or ‘Leamside’ route was used until 15 January 1872 when through express services were diverted to the route via Durham.

The ‘Old Main Line’ continued life as an important freight route and retained its stopping passenger service between Leamside and Ferryhill into LNER days. This service - latterly amounting to four up and five down trains on weekdays and one up on a Sunday, calling at the intermediate stations of Shincliffe and Sherburn Colliery – was to have been withdrawn in 1939 but closure was deferred until June 1941. Thereafter the Leamside – Ferryhill line was used for passenger trains diverted from the main line via Durham and for freight traffic. In 1991 British Rail mothballed the line, but owing to dumping of rubbish on the lines, removal of rails at level-crossings, theft of 2½ miles of track near Penshaw in 2003, and effects of overall neglect Network Rail decided to close the line entirely and the rails were removed by April 2013. Concrete sleepers recovered from the route are understood to be destined for re-use on the Waverley Route currently under construction between Edinburgh, Galashiels and Tweedbank.



The Durham diversion was, like the development of the Leamside route, a result of evolution rather than one direct action.

BRIEF HISTORY OF 'THE NEW MAIN LINE'
Access to Gateshead from the south was via Leamside until 1872, when the present-day East Coast main line superseded it. However much earlier, in July 1846, the York & Newcastle Railway announced its intention to promote a Bill for a line following a route via the Team valley from Gateshead (and ultimately Newcastle). On 30 June 1848 the Y&N – by now the York, Newcastle & Berwick Railway – obtained an Act authorising construction. The proposed route was from Gateshead via Team Valley to Newton Hall, where a branch to Durham and Bishop Auckland continued southwards, while the main line curved eastwards for about a mile then turned south to join the main line near Belmont Junction. However in 1849 the work was postponed owing to the downfall of George Hudson.

The NER in 1862 revived the project, but the line authorised was only between Gateshead and Newton Hall on the Bishop Auckland branch north of Durham, which had opened from Leamside in 1857. The section eastwards from Newton Hall had been constructed as part of the Bishop Auckland branch, but there was no west-to-south curve near Leamside to allow through running from the north onto the old main line via Shincliffe. Consequently the new line could be used only as an alternative route to Durham and the south via Bishop Auckland; and at first there were only four stopping trains in each direction between Newcastle and Durham. The Team Valley route opened on 1 December 1868, and it became part of the ‘new’ East Coast main line on 15 January 1872 when the line between Relly Mill Junction (one mile south of Durham) and Tursdale Junction (one mile north of Ferryhill) was completed.

Sources and bibliography:

Bradshaw& BR timetable from Chris Totty, Route maps drawn by Alan Young.

To see other stations on the Old Main Line click on the station name: Felling 2nd, Felling 3rd , Felling 1st, Pelaw 1st, Pelaw 3rd, Pelaw 4th , Pelaw 2nd, Washington 2nd, Washington 1st, Penshaw 1st, Penshaw 2nd, Fencehouses, Rainton, Rainton Meadows (on branch), Leamside 1st, Leamside 2nd, Belmont Junction, Durham Gilesgate (on branch), Sherburn Colliery, Shincliffe & Ferryhill

See also Coxhoe (branch from Ferryhill)

See also: Springwell, Brockley Whins (1st site), Brockley Whins (2nd site)
& Boldon (route prior to 1850)

See also Sunderland and Durham (via Leamside):
Durham (still open), Frankland, Cox Green, South Hylton , Hylton, Pallion 1st, Pallion 2nd , Millfield 2nd, Millfield 1st, Millfield 3rd , Sunderland Fawcett Street (on branch) & Sunderland Central (Still open)


Station still open as part of the Tyne & Wear metro

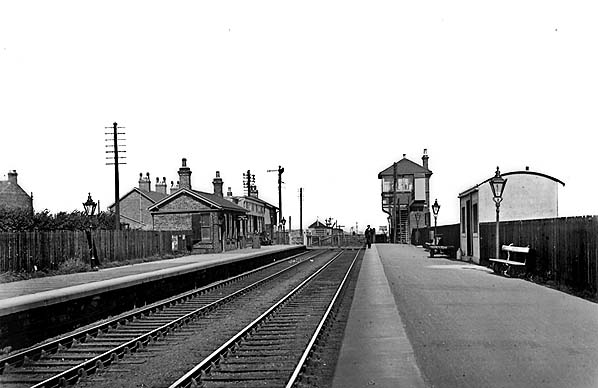

This inter-war view is looking north from the up (east) platform at Usworth. The station building is the modest brick structure on the down platform with a glazed timber waiting room beyond it. The waiting room in the foreground on the down platform is of a most unusual design. The station is gas-lit and would remain so until closure.
Photo by HGW Household

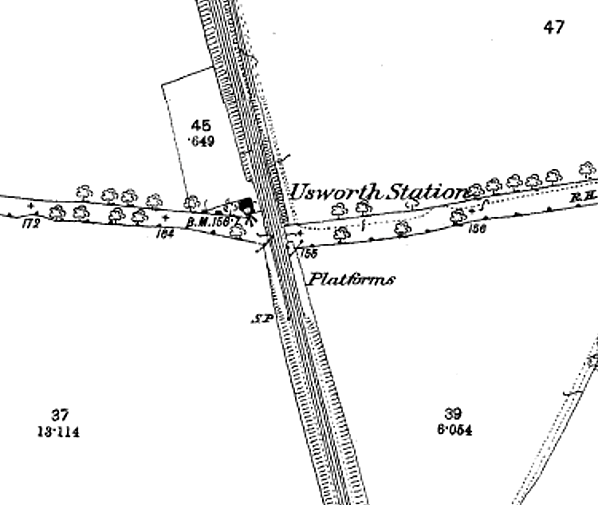

1870 1:2,500 OS map. In 1870, although both platforms are shown at Usworth station, there are no buildings on them. The stationmaster’s house is shown immediately north of the crossing, on the ‘down’ side of the tracks.

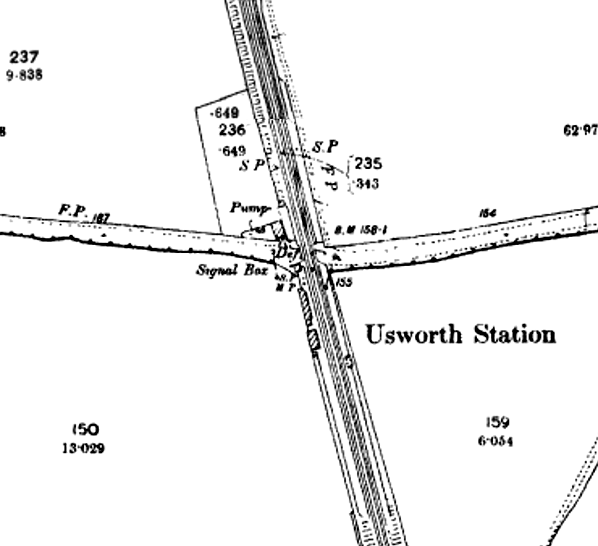

1896 1:2,500 OS map. Usworth station now has the main building and waiting shed shown on the down (west) platform and a small shelter midway along the up platform. The signal box is shown adjacent to the level crossing and on the down side. A goods siding is found on the up side, north of the crossing. No building development has taken place in the vicinity of the station at this time.

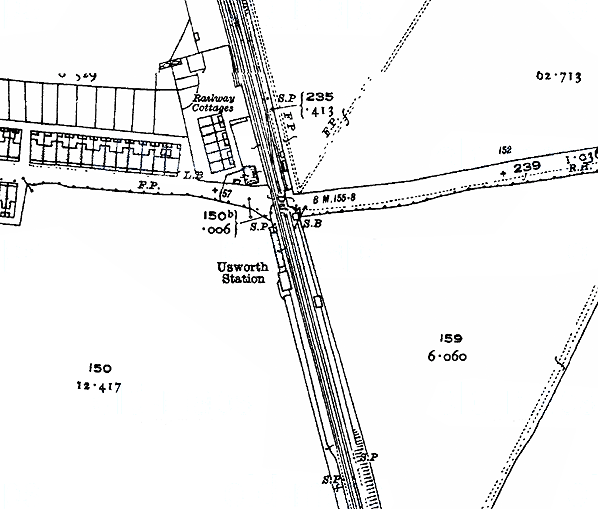

1919 1:2,500 OS map. Although the station itself appears unchanged since the 1896 map the original signal box west of the tracks has been replaced with one to the east, again at the south side of the level crossing. By this date a terrace of six small railway staff cottages has been built close to the stationmaster’s house, and terraced housing has also spread along Station Road as
far as Usworth station.

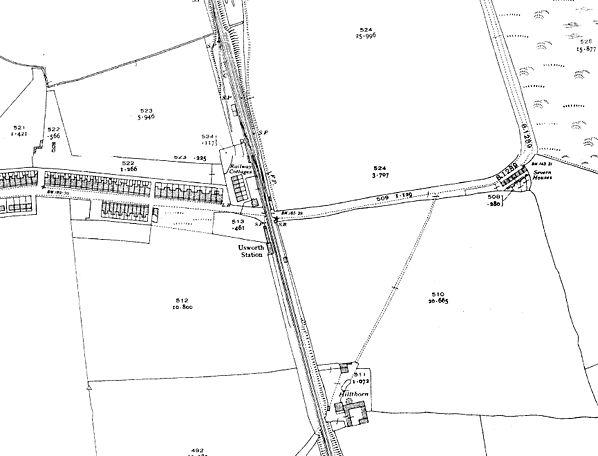

1939 1:2,500 OS map. Usworth station appears essentially unchanged since the map of 1910, and the housing has spread no further.

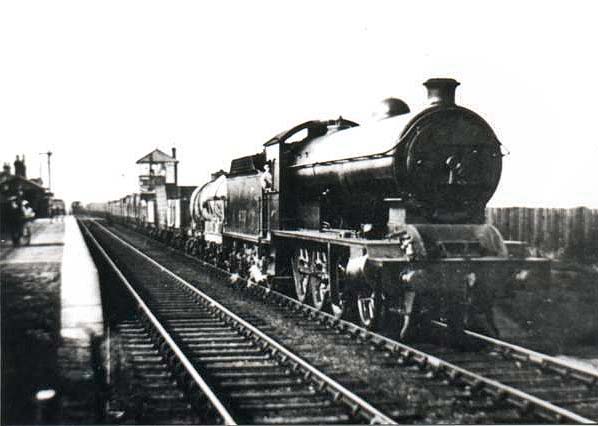

An undated view of a southbound goods train at Usworth. The loco was built by the LNER at Darlington Works to Ravens NER Q7 design; numbered 633 it entered service on 3 May 1924 at Tyne Dock shed. Renumbered by the LNER in 1946 to 3473, it was renumbered again by BR at Nationalisation to 63473. It was withdrawn from Tyne Dock shed on 17 December 1962, before entering Darlington works for breaking up on 10 April 1963.
Photo by HGW Household

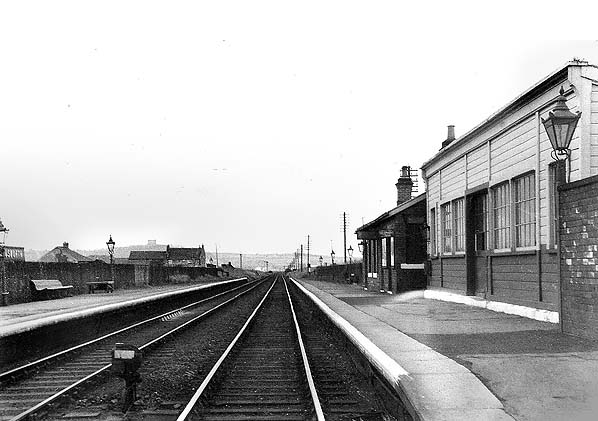

Usworth station looking south along the down platform in 1958. On the right is a waiting shed, with the main station building beyond. The shelter on the opposite platform has been removed. By this time only one passenger train in each direction called at the station on weekdays, and none on Sundays. In the following year the station ceased to be staffed and goods facilities were withdrawn.
Copyright photo from Stations UK

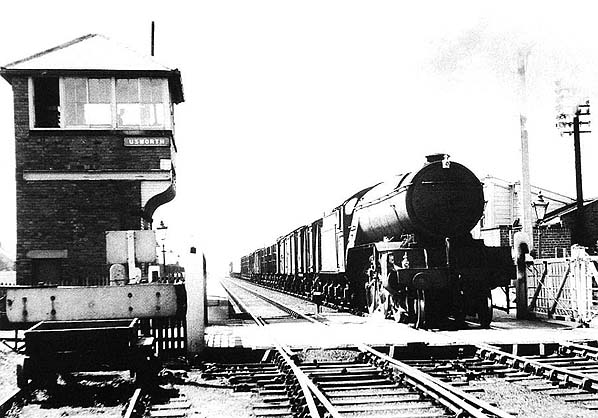

In June 1959 a northbound goods headed by a Gresley 2-6-2 class V2 mixed traffic loco passes Usworth. In the foreground is the buffer stop of a goods siding, with the NER signal box and the passenger station beyond the level crossing. The station ceased to handle goods
traffic three months later.

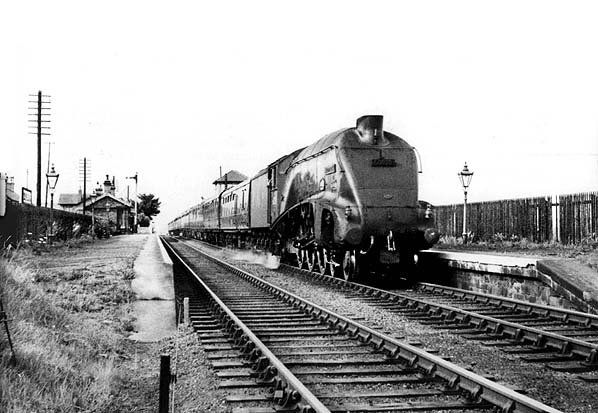

A southbound express diverted from the East Coast main line passes Usworth in August 1959 – a few weeks before the station was demoted to an ‘unstaffed halt’. The loco 60029 was built at the LNER Doncaster works and entered service on 26 July 1937 at Gateshead shed. One of Gresley’s A4 Pacifics, and named ‘Woodcock’, it originally carried the number 4493 until the LNER renumbering of 1946, when it was designated 29. Withdrawn from New England shed on 20 October 1963, it was taken to its birthplace and scrapped during January 1964.
Photo by IS Carr

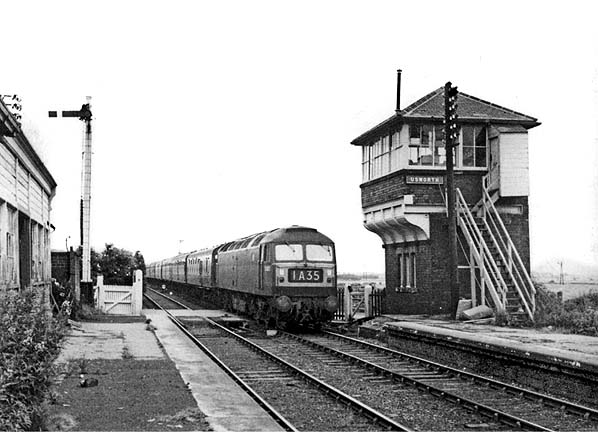

 In August 1967 Type5 Co-Co (Class 47) hauls the diverted East Coast main line Edinburgh Waverley 10:00 departure to London Kings Cross through Usworth. The station has been closed for almost four years but the down platform waiting shelter is still in place. The NER cantilevered signal box at the level crossing will be noted.
Photo by NE Stead

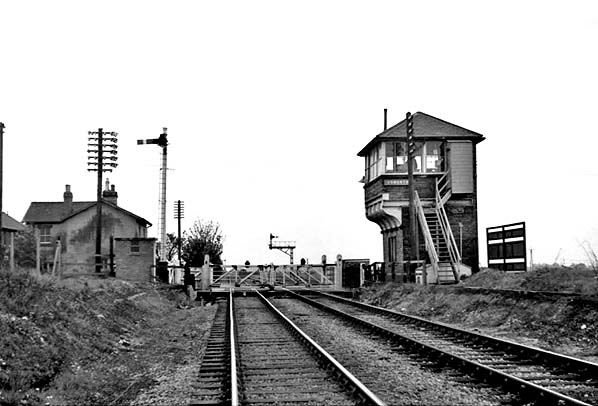

By May 1972, when this photograph was taken, Usworth station had been demolished. Looking north, the degraded remains of both platforms are in the foreground. The signal box which controlled the level crossing would continue in operation for many years as the line remained important for goods and mineral traffic and for main line diversions. The stationmaster's house can be seen on the left beyond the level crossing.
Photo by JC Dean

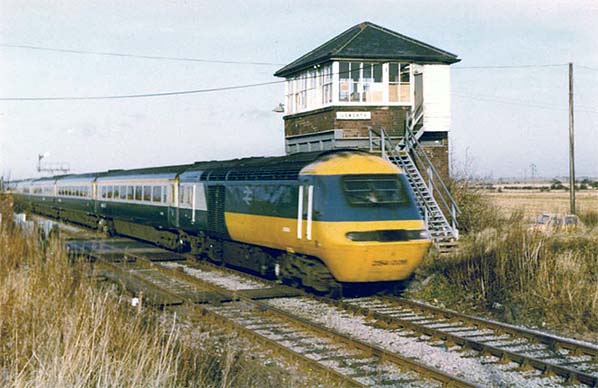

Looking north-east on a Sunday in November 1980 as a diverted southbound East Coast main line InterCity 125 passes Usworth signal box. The degraded remains of the up platform of the station
are to the right.
Photo by Alan Lewis from his Ipernity photo gallery

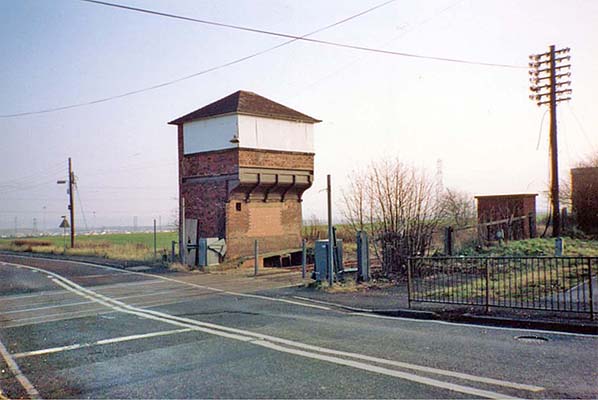

Following the ‘mothballing’ of the Old Main Line in 1991 the signal box at Usworth was abandoned. In this view, dating from the same year it, the cabin has been boarded up, and the steps have been removed. Tarmac was spread over the road crossing, but it appears not to have been done at the time of this photograph.
Photo by Alan Lewis from his Ipernity photo gallery

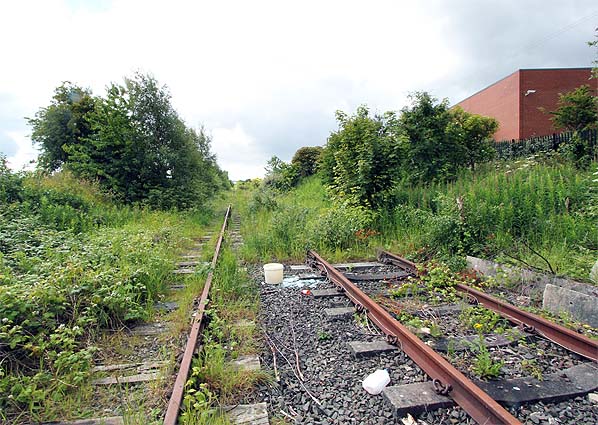

Looking south towards the site of Usworth station from the level crossing in June 2011. The ‘mothballed’ tracks are overgrown, and tarmac has been laid over them at the crossing
Photo by Nick Catford

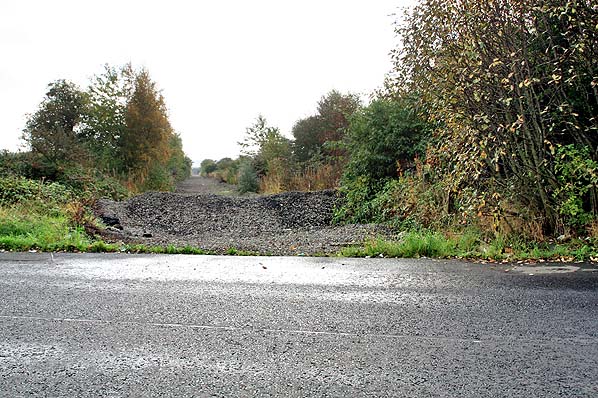

.Looking south over the level crossing at the site of Usworth station in October 2013, a year after the track was lifted,
Photo by Ali Ford
